DM121 Turbofan Engine Model: The Perfect Starter Kit for Aviation Fans

1) Introduction of DM121

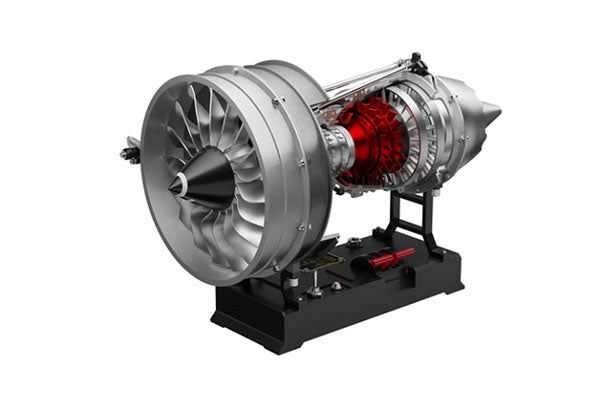

The DM121 is a newly developed metal version of a turbofan engine. It is designed for educational purposes, especially for those curious about the workings of jet engines. It will be helpful and enjoyable for many educators, learners, and even DIY enthusiasts.

More importantly, the DM121 is not simply a plaything; it is a fully functional model, which shows the airflow in the engine and the rotation of its components.

Design and Build of DM121

The DM121 is assembled with robust, high-grade metal. This ensures the model is highly durable and will stand the test of time. You can touch it, run it, and even spin its parts without any worry of breaking it. Also, the DM121 resembles real engines, unlike plastic versions, which give a toy feel.

At the core of the design is a dual-shaft high-bypass ratio turbofan. This indicates that the engine contains two rotating shafts and discharges copious amounts of air around its center. Modern jet engines operate this way, and you can see it for real with DM121.

The DM121’s design is based on a legendary engine made by General Electric called the GE-90. The GE-90 powers large aircraft such as the Boeing 777.  Of course, the DM121 is not a complete copy. Some details have been omitted on purpose. Why? So that the model stays affordable and uncomplicated to make.

Thus, learning about it becomes accessible to many people. Therefore, it is superb for the STEM classes and workshops as well as for anyone who is going into the world of jet engines.

2) How It Works (Based on DM121 Components)

The DM121 demonstrates the operation of a real-world turbofan engine. Each component serves a vital function for the system as a whole. Here we will discuss how they work together:

• Front Fan: Firstly, the big front fan begins to rotate. It takes in a lot of air from the front. Some air enters the engine core. The rest bypasses it. This is called a high bypass ratio. The fast-moving air aids assist thrust and augment thrust generation.
• Dual Shafts: The DM121 features two distinct shafts. A shaft connects to the front fan, whereas the other one is attached to the compressor as well as to the turbine. The extra mechanisms fixated on the shafts are enabled by the spinning of both shafts.
• Compressor: Next, the compressor works on the air coming in to make sure it is squeezed out effectively. The air attains a hotter temperature during this process and is compressed into high pressure. In turn, this increases energy within the air.
• Turbine: Then, the air with high pressure goes to the turbine. The turbine makes use of this energy as it spins. It assists in turning the shafts, which, in turn, keep both the compressor and front fan in motion.
• Bearings: Within an engine, proper bearings allow for the various components to easily rotate without incurring additional wear and tear. Any friction that may be present is minimized.
  This allows for the engine to operate in a whisper-quiet manner as well as provide a smooth operation in the driving experience.
•  Housing (Engine Case): All components are positioned within the robust metal housing with the help of strong support structures. The housing protects all parts as well as ensures the correct positioning during the operation of the engine.
• Power System: The power system utilizes a non-lithium battery. It provides power to the motor driving the shafts and has auto-cooling functionalities as well. This functions to cool the engine after it has been running.
• Display Base: Lastly, the display base contains the entire engine. It ensures steady function throughout the operation. It also has a nice appearance when you want to showcase it.

Companies like EngineDIY offer full metal turbofan engine kits like the famous TECHING DM119, as well as other high-quality products.

3) Key Features and Advantages

The DM121 has numerous excellent features that differentiate it from other engine models. In this section, we will examine the features and advantages of DM121:

i) Strong and Durable: First of all, the DM121 is made from metal, which makes it very strong. This means it can be used offensively many times. After all, it does not get damaged easily. This is what makes it ideal for use in classrooms and workshops.

ii) Easy Build: Also, the engine is simple to construct. Because this is for beginners, the components are basic. As a result, you can easily assemble them. Everyone can build their first engine model. Because of this, learners feel even more self-assured.

iii) Great for Learning: In addition, the DM121 teaches you how actual turbofan engines operate. Since you can observe the fan blade’s rotation, you can also observe airflow through the engine. That makes it ideal for STEM lessons.

iv) Safe to Use: Besides that, the engine is very accessible and secure. It operates at a manageable speed, which is easy to control.

v) Affordable Price: Last but not least, the affordability of the DM121 is fantastic. Since full-sized engine models are usually expensive, this option truly stands out. Lower prices mean more access for educational institutions and DIY enthusiasts who are interested in learning.

How Does It Meet the Need for Affordable Models?

Compared to most all-metal engine models, the DM121 is much cheaper due to its simplistic design. The model does not include additional complex parts, which makes it far more economical.

4) Applications of DM121

The DM121 has versatile applications. Let's discuss where it is most useful:

i) STEM Education and Classroom Use

The DM121 is well-suited for STEM education. The students can construct it and observe its functionality. It helps them understand concepts like airflow, turbines, and engines. Its ease of use makes it safe for classroom application by teachers.

Students get to participate in experiential learning as well. Thus, the DM121 aids in making science enjoyable and understandable.

ii) Hobbyists and Aviation Enthusiasts

Lastly, the DM121 is great for model hobbyists and fans of aviation. If you’re interested in planes or their engines, this model will be a joy to build as it features the renowned GE-90 engine. Furthermore, it can be exhibited at home and also showcased during professional gatherings.

It works well with engine clubs and aviation groups, too.

iii) Entry-Level Builders

Lastly, the DM121 suits the needs of beginner builders. During the early phases of engine modeling, many people wish to build a model, but they feel hesitant. That is exactly why this model is recommended. It is simple to construct and enjoyable for beginners at an economical price.

Beginners will learn in a progressive manner, which will enable them to acquire skills, develop confidence, and attempt more advanced models later on.

5) Comparison with Previous Models

The DM121 is the most advanced and newest model. It has a lot of benefits compared to older engine models such as DM119 and DM118. Here we will examine the models' comparisons in table form. Thus, you can easily determine which one fits your requirements the best.

Conclusion

To sum up, the DM121 serves as an excellent learning model. Its construction is very straightforward, yet quite robust and safe. One of the benefits is that it offers a glimpse into actual jet engine workings since it is based on the GE-90 engine.

Furthermore, it is rather affordable, so more people can attempt to use it. For learners at all levels, including self-learners and educators, as well as enthusiasts, it is very useful.

FAQs

i) What is the DM121 turbofan engine model?

The DM121 is a model of a metal engine, a replica of the well-known GE-90 engine. It serves educational and entertainment purposes. You can construct it, observe its functionality, and gain insights about actual jet engines.

ii) Is the DM121 hard to build?

Certainly not! The DM121 is very simple to construct. It is designed for students, beginners, and even enthusiasts. It takes most people around 30 minutes to complete.

iii) How does the DM121 model help you learn about turbofan engines?

The DM121 model is built on the actual turbofan engine GE-90, meaning it demonstrates the functioning of fans, compressors, turbines, and shafts. It helps you learn about all the fundamental parts of a turbofan through physical models.

iv) What are the key upgrades in the new metal turbofan engine compared to the DM119?

The all-new model comes with quicker assembly, quieter starting, improved safety features, a lighter and more durable case constructed entirely from metal as well as sorts of other benefits STEM users and hobbyists will appreciate.
