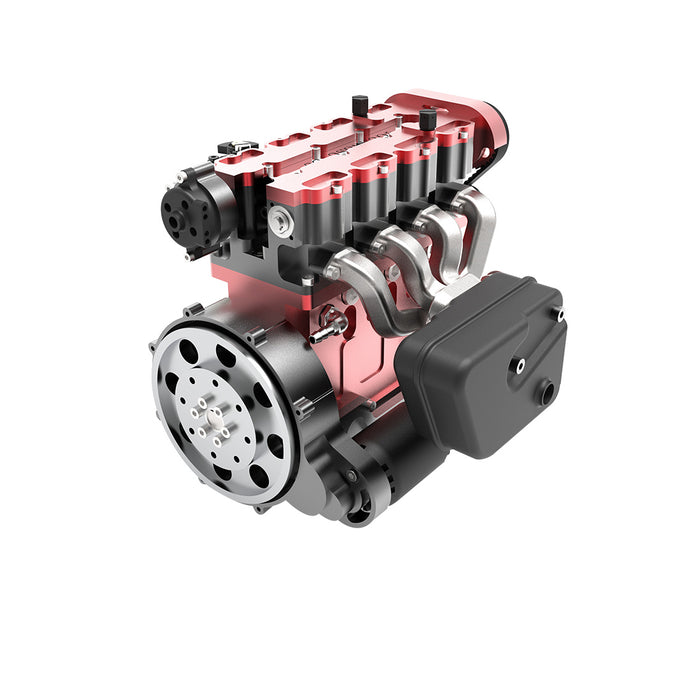

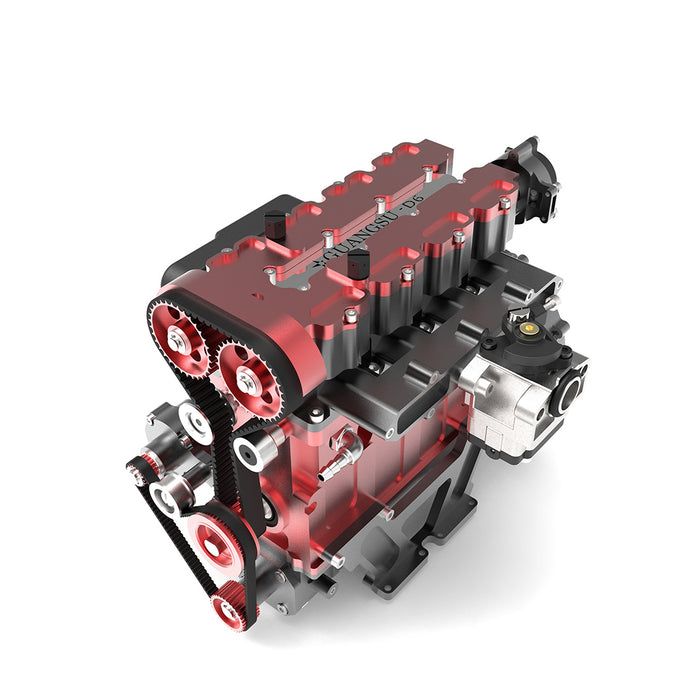

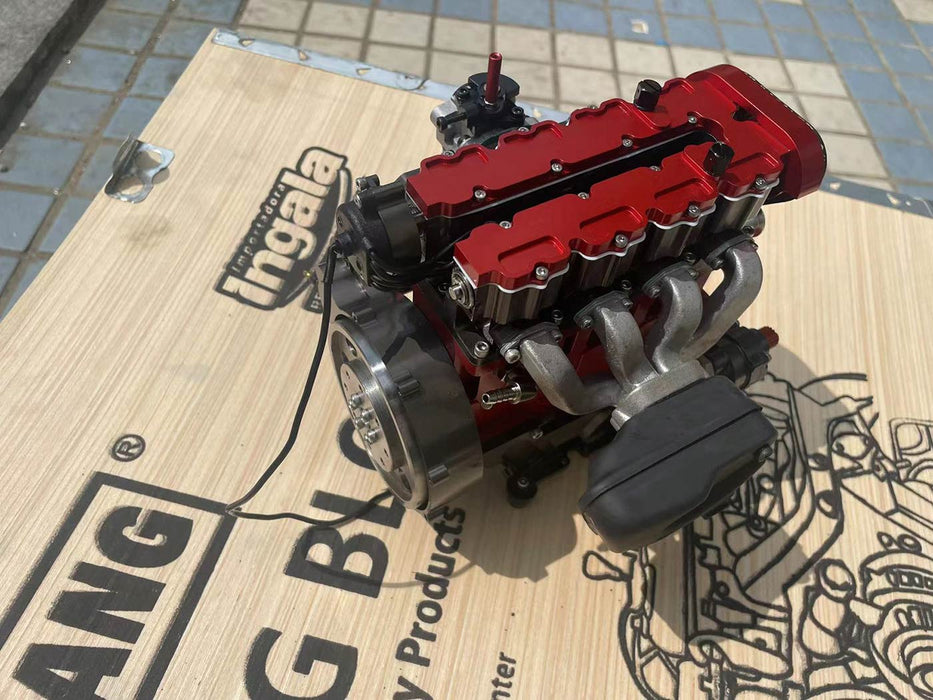

Starter Kit for ENJOMOR GS-L4 36cc DOHC L4 Engine Inline 4 Cylinder 4 Stroke Water-Cooled L4 RC Gasoline Engine Model
Specifications:
75ML Miniature Plastic Fuel Tank for TOYAN FS-V800 Engine Model
.Material: Plastic
.Product Weight: 30g
.Package Dimensions: 10 x 6 x 5cm
.Package Weight: 40g
--------------------------------------------------------------------
Oil Pipe for TOYAN FS-V800 Engine Model
.The oil pipe has an inner diameter of 3mm and an outer diameter of 3.5mm
.Material: Silica Gel
.Inner Diameter: 3mm
.Outer Diameter: 5mm
.Length: 50cm
.Product Weight: 10g
.Package Dimensions: 8 x 5 x 4cm
.Package Weight: 15g
--------------------------------------------------------------------

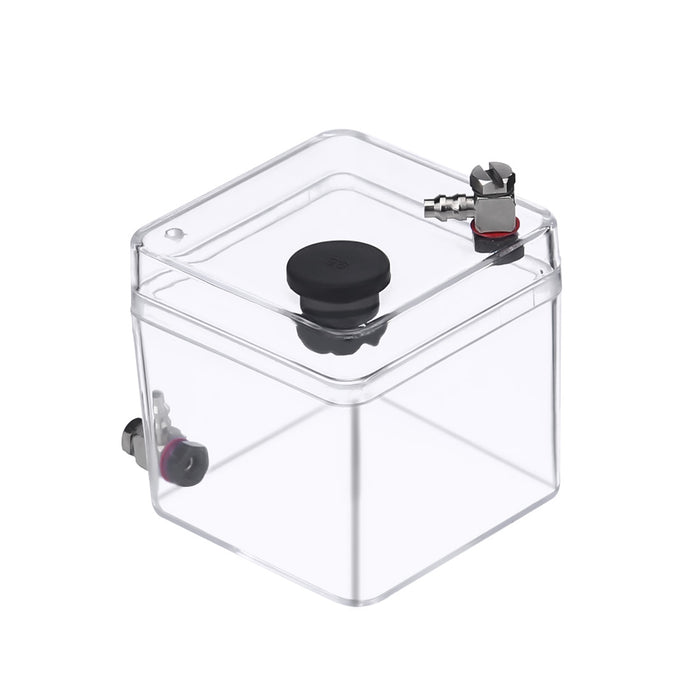

Water-cooling Decompression Water Tank Water Pipe Kit for TOYAN FS-V800 Engine Model
.Material: Acrylic
.Product Weight: 40g
.Package Dimensions: 8 x 5 x 4cm
.Package Weight: 50
--------------------------------------------------------------------

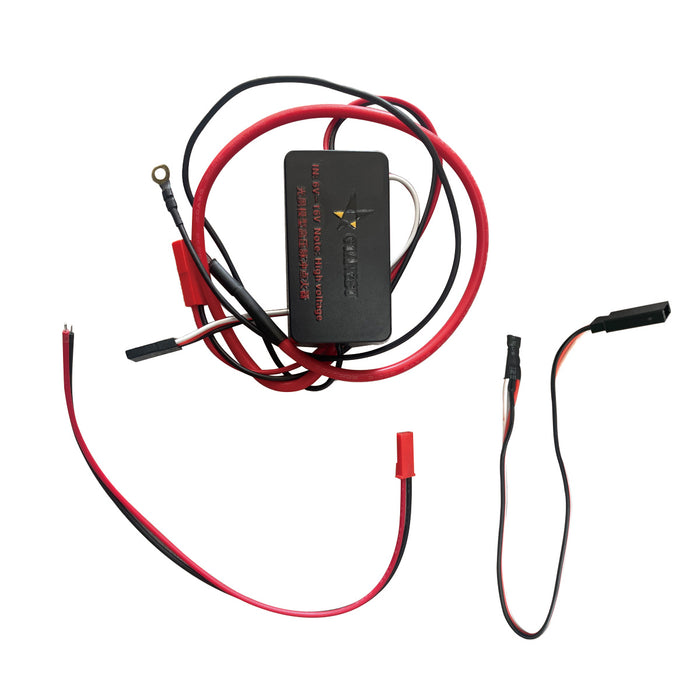

7-16V Input Voltage CDI Pulse Igniter for ENJOMOR GS-D6S Engine Model and Multi-Cylinder Gasoline Engine Distributors
.Wide Application: This CDI igniter is designed to provide stable ignition voltage for distributors, making it compatible with various engine models, including ENJOMOR GS-D6S and multi-cylinder gasoline engines.
.Superior Quality: Crafted with premium quality electronic components and hand-soldered circuits, this CDI igniter offers reliable performance, stable ignition, and an extended service life, ensuring consistent operation over time.
.Easy Installation: The igniter is simple to set up. Connect the ignition cap to the spark plug or distributor, securely fix the Hall sensor around the engine flywheel, and attach the power cable to a 7-16V battery using a compatible connector.
.DIY-Friendly Design: This product requires users to connect the engine ignition circuit independently and prepare their own power plug and battery. Perfect for hobbyists and professionals who enjoy hands-on projects.
.Support: If you have any questions, please contact us.
.Material: Metal + plastic + Electronic components
.Product Weight: 50g
.Package Weight: 100g
.Input Voltage: 7-16V
.Output Voltage: 15-20KV
.Hall Sensor: Self-installed and fixed
.Product Dimensions: 10 x 2.8 x 2cm
.Package Dimensions: 10 x 8 x 6cm
--------------------------------------------------------------------

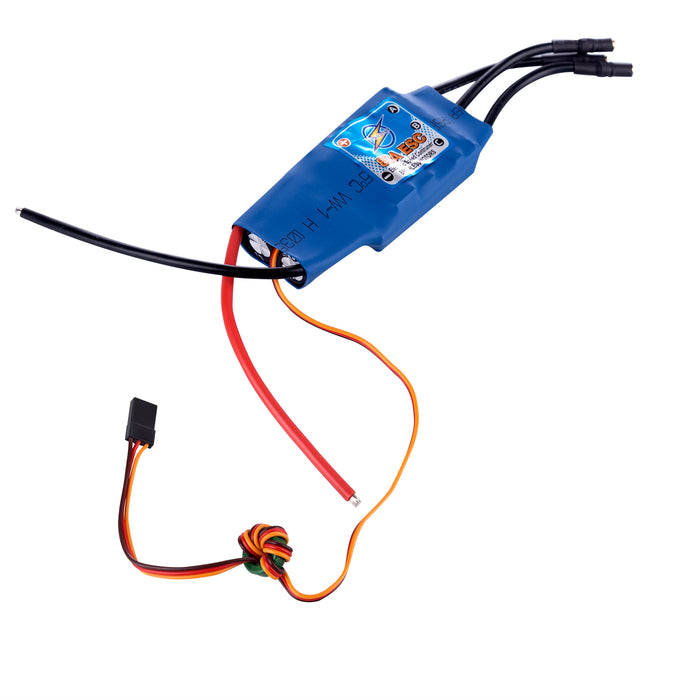

12V-24V 80A Brushless ESC for In-line Four-cylinder Gasoline Engine Model
.High-quality 80A brushless ESC, suitable for straight four gasoline engines.
.It can also be widely used in various model engines, model airplanes, fans, oil pumps, etc.
.It can be used with a speed regulator, and can be used with a brushless motor and power supply.
.Wiring Mode: One end of the ESC is connected to the starter motor, and the other end is connected to the battery and speed regulator.
.Color: As Shown
.Material: Electronic Components + Plastic
.ESC: 80A
.Power Supply Voltage: 7-24V
Maximum Current: >80A
Recommended Voltage: DC voltage 12V-24V (the positive and negative poles cannot be reversed)
.Socket: Welded 3.5mm banana head
.Product Weight: 81g
.Package Dimensions: 19 x 7 x 2cm
--------------------------------------------------------------------

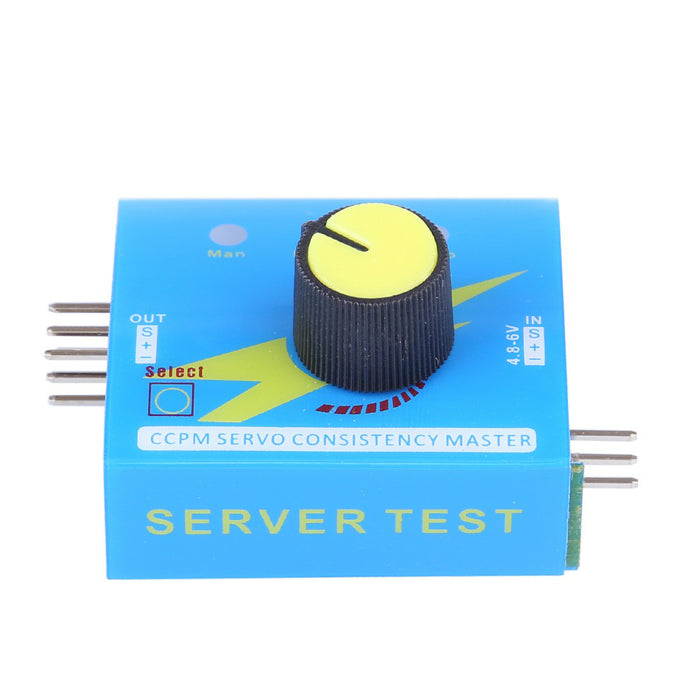

Consistency Speed Controler Servo Tester for In-line Four-cylinder Gasoline Engine Model
.It can easily detect and set the virtual position, jitter and neutral position of the server.
.Two sets of servos or ESCs can be connected
.Single-chip microcomputer control, good stability and high precision.
.Rotate the knob to detect the steering gear.
.If you connect an electronic speed controller (brushed or brushless), you can get rid of the remote control device and adjust the speed manually. It is used to test the performance of the speed controller or motor. It is very practical, and there is no need to connect the remote control and the receiver.
.It is equivalent to the function of a "manual receiver", which simulates the rudder of the transmitter through the knob.
.Note: This product cannot test the servos above 55g, but the ones below 55g can be tested.
.Material: Electronic Components + Plastic
.Output: ≤15mA (5.0)
.Input: DC 4.5-6.0v
.Output Signal: 1.5ms±0.5ms
.Adjustment Mode: Manual, automatic, neutral
.Product Dimensions: 4.25 x 2.4 x 2.35cm
.Product Weight: 7.5g
.Package Dimensions: 11.5 x 7 x 3cm
.Package Weight: 7.5g
--------------------------------------------------------------------

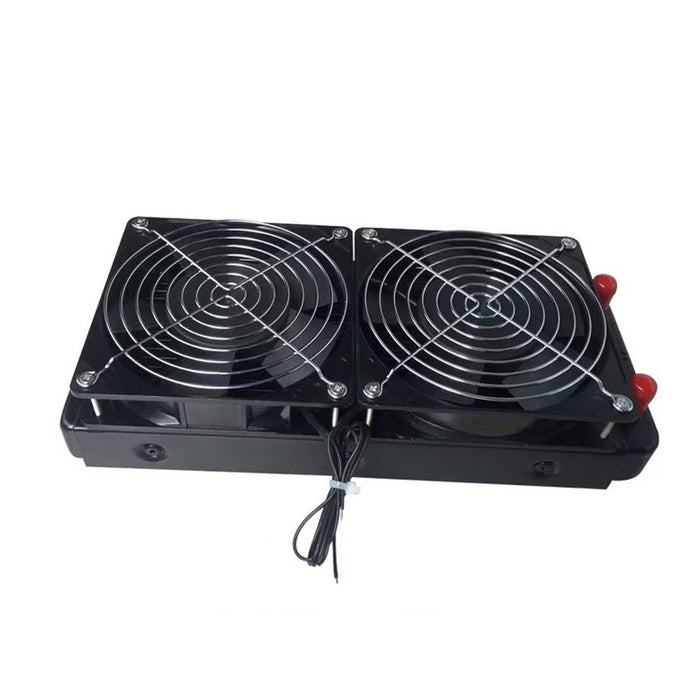

Universal Cooling Water Radiator Kit for ENJOMOR GS-L4/V8/V12 Engine Models
The Universal Cooling Water Radiator Kit is specifically designed for ENJOMOR GS-L4/V8/V12 engine models and is used to provide cooling during engine startup.
.Material: Metal
.Product Weight: 200g
.Package Weight: 300g
.Product Dimensions: 16 x 8 x 6cm
.Package Dimensions: 20 x 10 x 8cm
--------------------------------------------------------------------
Package Content:
.1 x ESC
.1 x Servo Tester
.Fuel Tank * 1
.1*Oil Pipe
.1*Water Tank Water Pipe Kit
.CDI Igniter *1
.Spare Hall Sensor *1
.Water Radiator *1
