Item in Black-SKU: 33ED3030434

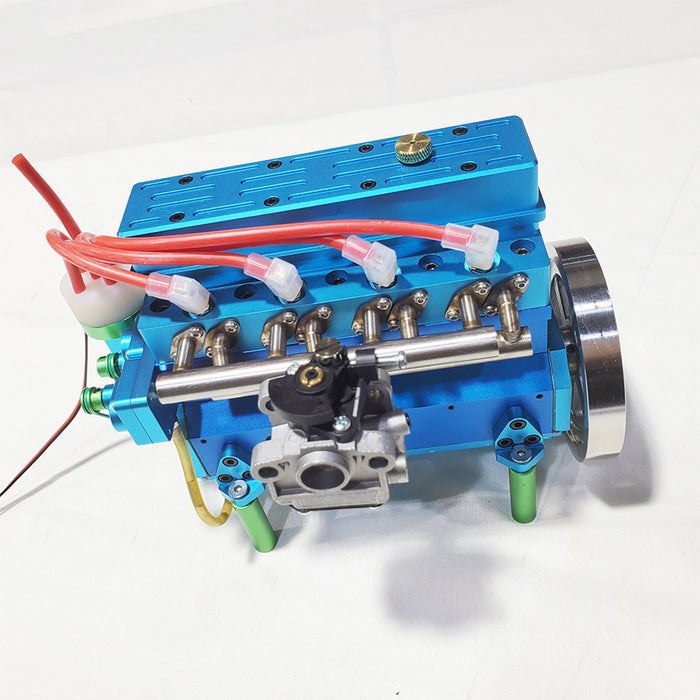

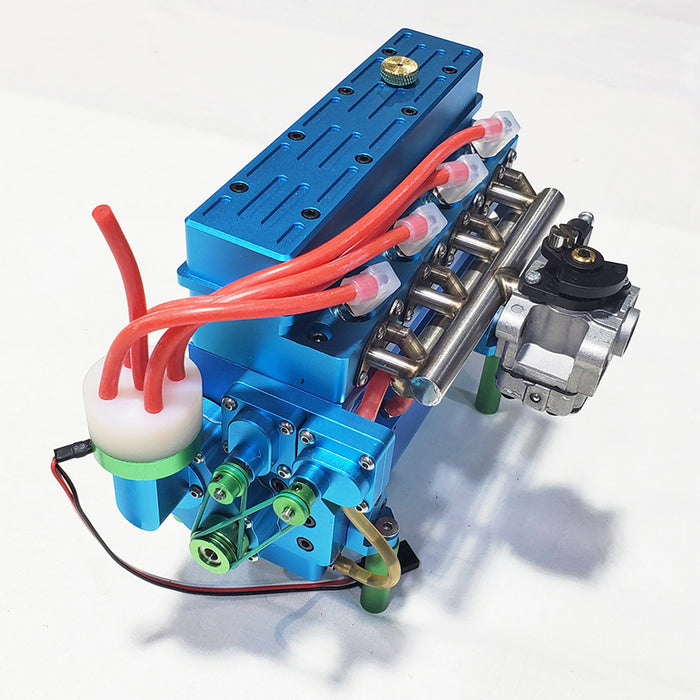

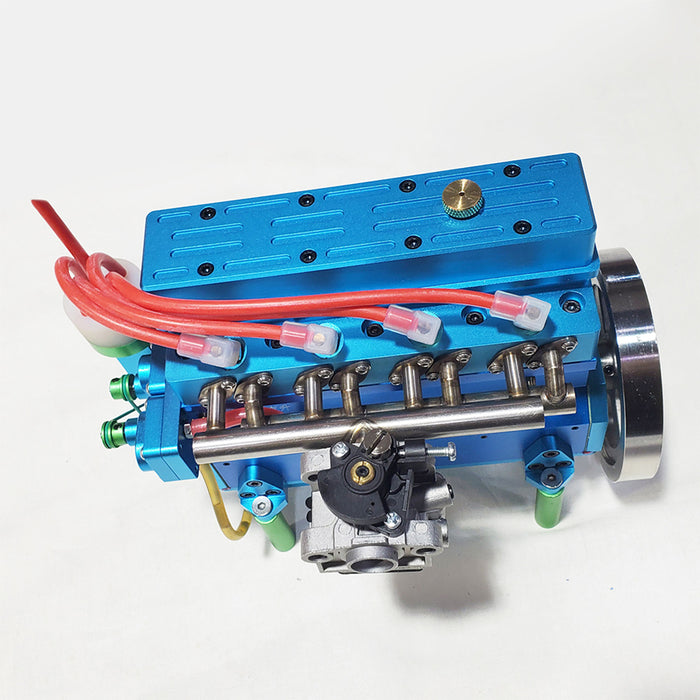

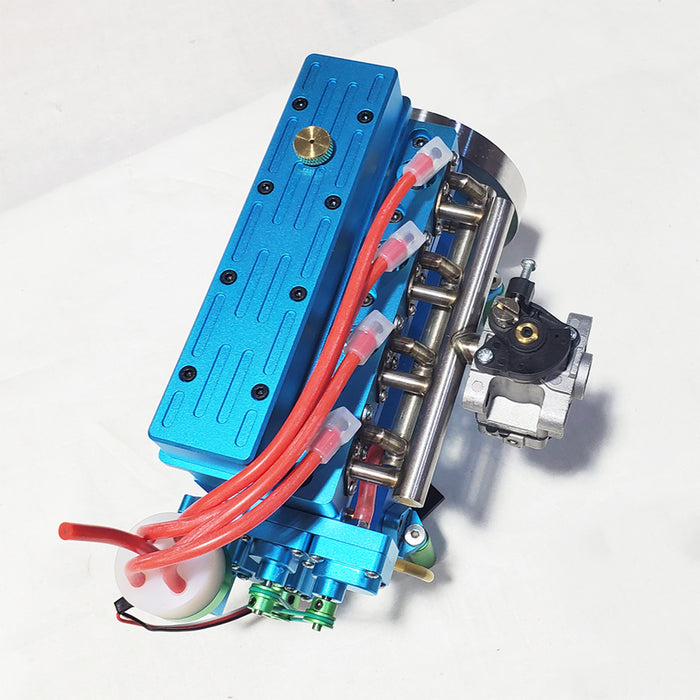

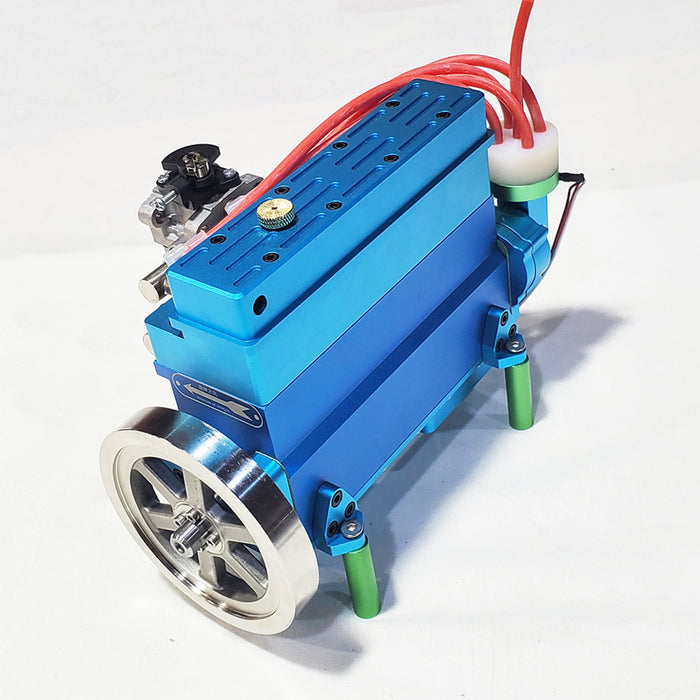

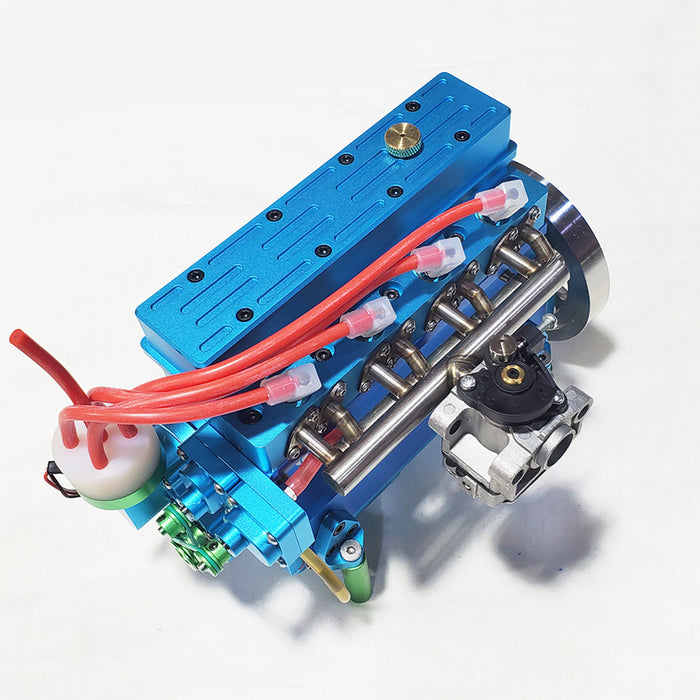

32cc Inline Four-cylinder Water-cooled Gasoline Engine for RC Model Car / Ship / Airplane

Features:

.This is a Inline four-cylinder gasoline engine model with independent lubrication method
.The following items should be brought by yourselves: Gasoline, (0W-30) engine oil, 3 pieces of 18650 batteries.
.(0W-30) engine oil must be added before you start, and you must to connect it to the water cooling device and connect the ground wire to the engine, otherwise you will be responsible for the consequences. Each machine is tested before leaving the factory, and it is normal to see if there are oil stains or signs of activation after purchase
.Wiring Steps: 1. Connect the ingiter, ground wire, spark plug wire, fuel pipe, air cooled pipe, oil filter, and the lubricating oil pipe. 2. Fill the fuel tank with gasoline. After filling, make sure that there is no air in the tubing
.The machine  has the characteristics of fine appearance, superior quality, excellent workmanship, superior performance and strong practicality. It will be attractive to fans of model engines. Can be used as a high-end model gift to others, suitable for collection and as a desktop model, also suitable for modification to RC model, more applications waiting for you to develop
.Note: 1. Due to the difference in display and light, the picture may not reflect the actual color of the item. Thank you for your understanding! 2.Due to manual measurement, please allow some differences. 3. The wiring must be correct. Please be careful during refueling. 4. It is not recommended for children under 8 to play. Children under 14 should be accompanied by adults. 5. We provide professional pre-sale and after-sales service, please contact us if you have any problem

Specifications:

.Color: As Shown
.Material: Aluminium Alloy
.Item Name: Gasoline Engine Inline Four Cylinder Model
.Displacement: 4 x 8CC
.Model: GN-N100
.Size of Engine: 210 x 120 x 150mm(L x W x H)
.Cylinder Diameter: 24mm
.Stroke: 20mm
.Voltage: 6-12V
.Fuel: Gasline 95＃ / 97＃ / 98＃
.Best Tappet Clearance: 0.5mm
.Cylinder Liner: Copper Cylinder Liner with Hard Chrome Plating Inside
.Piston: Double Groove 7075 Aluminium Alloy Piston
.Piston Ring: Fluorine Rubber Ring (Support to upgrade bimetallic piston ring)
.Connecting Rod: One-piece Casting
.Crankshaft: One-piece Casting, Later Quenching
.Cylinder: 7075 Aluminum Alloy, Anodized
.Lubrication Method: Independent Lubrication(Independent lubrication of crankshaft and camshaft, splash lubrication for the rest)
.Product Size: 21 x 12 x 15cm
.Product Weight: 3000g
.Package Dimensions: 28 x 23 x 22cm
.Package Weight: 3800g
.Packing: Carton Box

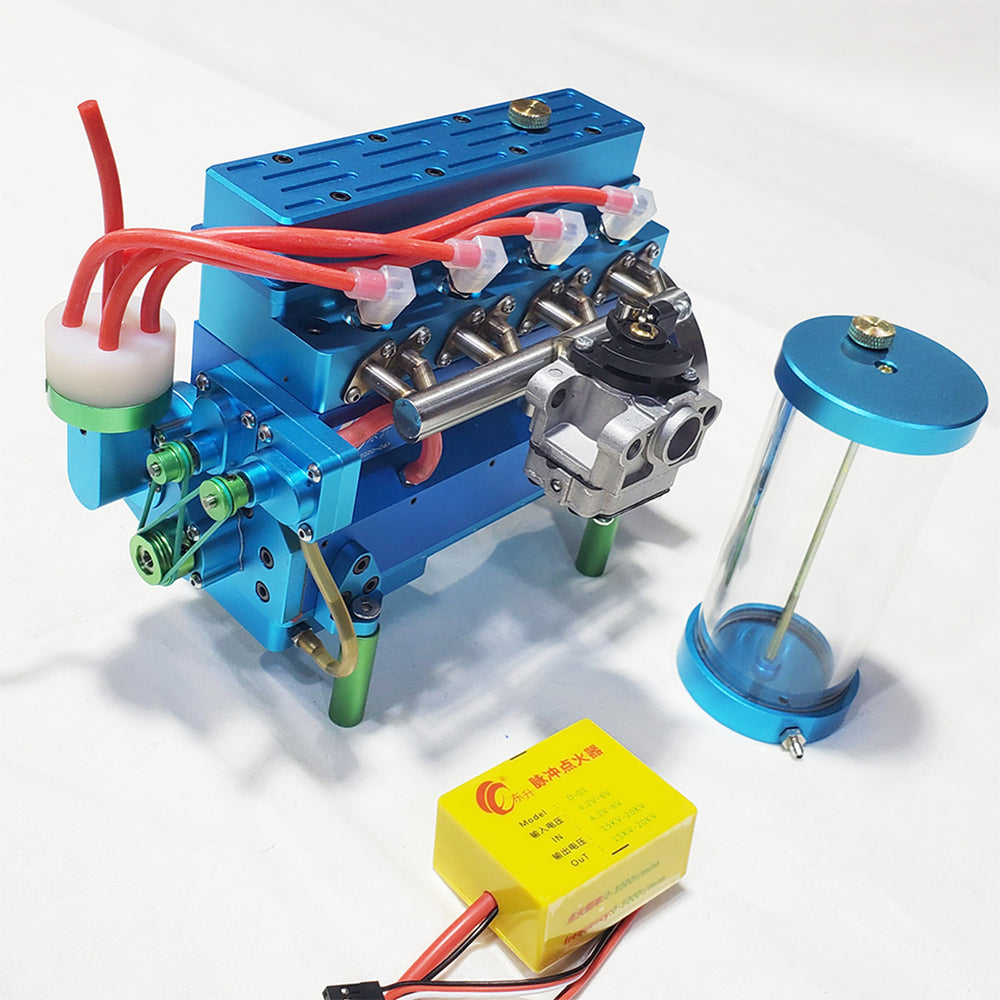

Package Content:

.1 x Engine Model
.1 x Fuel Tank
.1 x Igniter
.1 x Battery Box
.2 x Hall Sensor
.1 x Fuel Pipe
.2 x Water Cooled Pipe
.1 x Filter
.1 x Water Cooled Platoon Kit
.1 x Push Botton Switch
.1 x Manual
