JDMODEL JDM-128 1/14 RC Loader Simulation Hydraulic Adjustable Arm Multi-function Forklift Construction Mechanical Vehicle Model (RTR Version)
Features: The main body is made of aluminum alloy, stainless steel, CNC and injection molding process, baking paint and anodized surface treatment process. The whole vehicle has been assembled and tested, equipped with FS-I6S remote control, you only need to prepare the battery, charger and power indicator separately to complete the model. The vehicle is multi-functional, buckets, forks, and hydraulic grabs can be freely replaced and used. With hydraulic control, you will unlock more ways to play, experience unprecedented fun, and experience the powerful charm of RC construction machinery models. It is very suitable for professional enthusiasts and enthusiasts of RC construction machinery vehicle models.

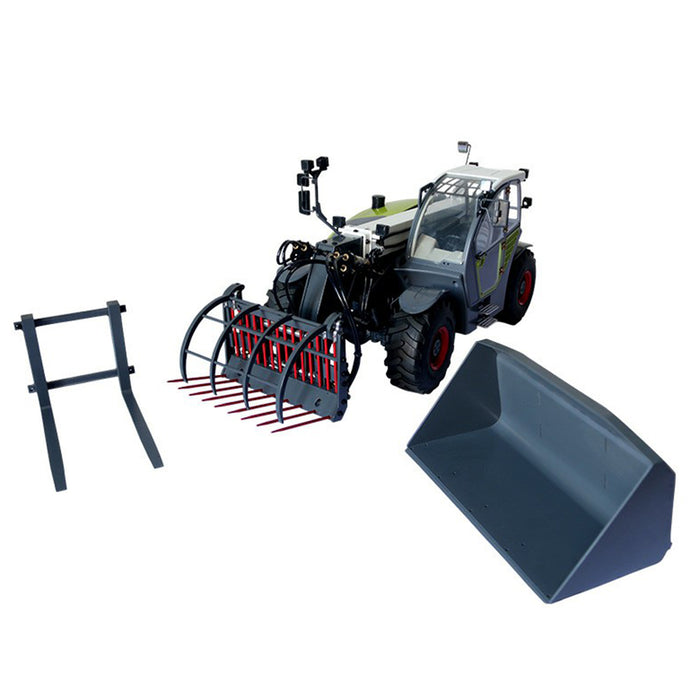

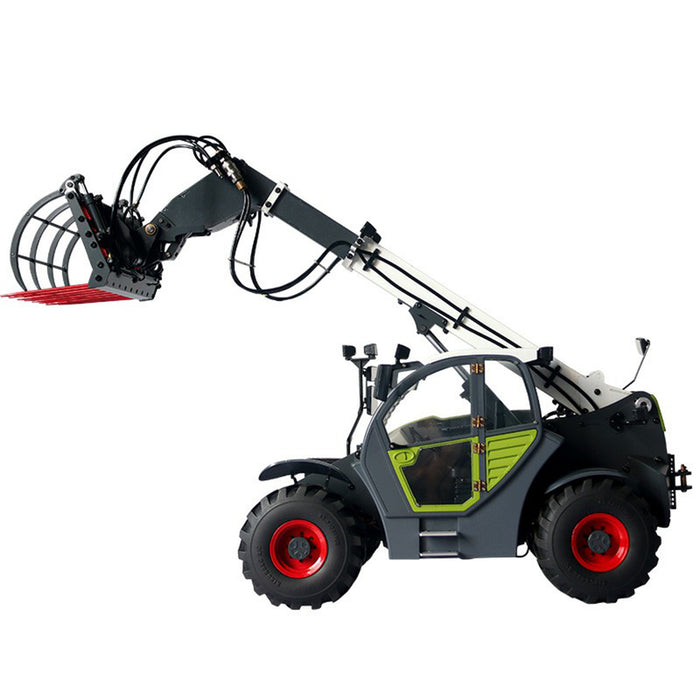

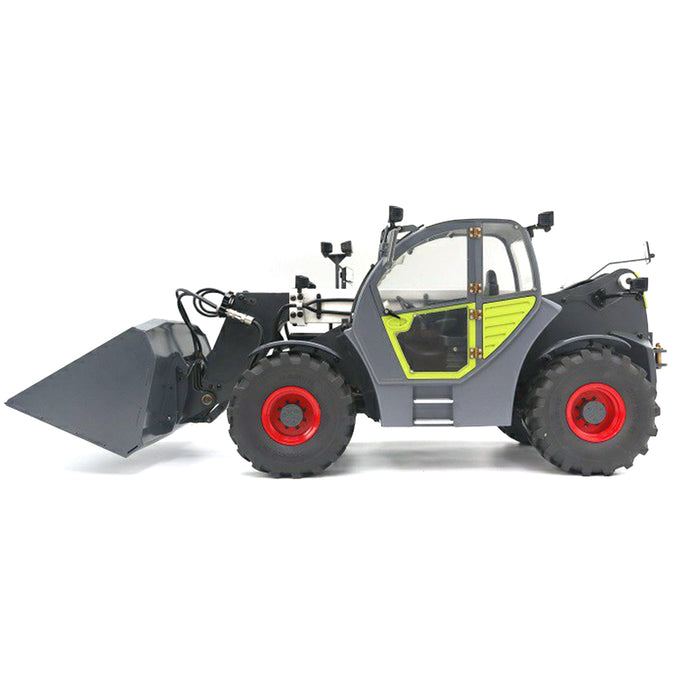

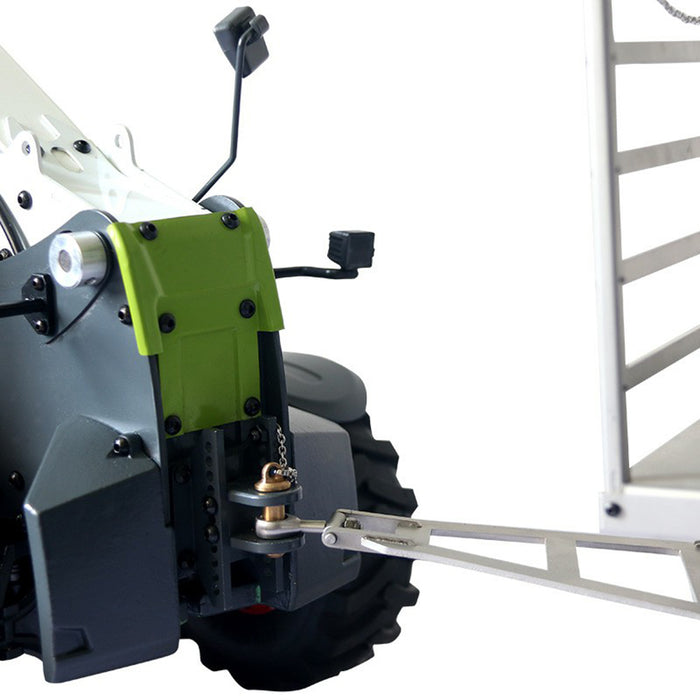

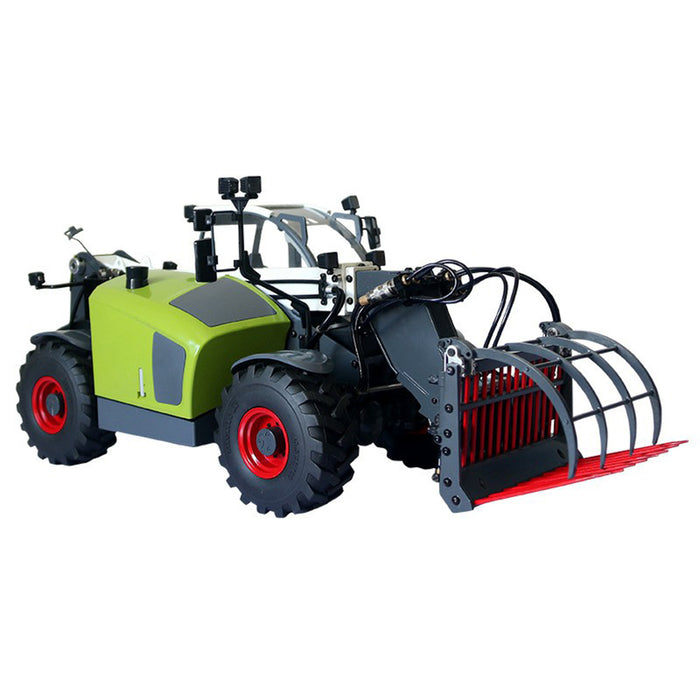

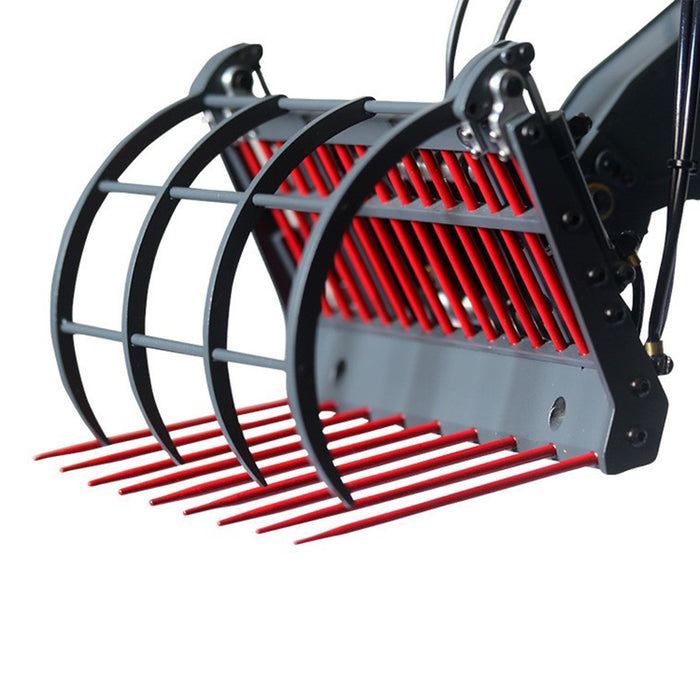

More details : 1. Highly simulated 1/14 remote hydraulic telescopic forklift model. The standard accessories of the whole vehicle are bucket+fork+hydraulic grab. 2.Alloy axles are used, both front and rear axles have differential lock function, and both front and rear axles can be steered and the control is flexible. 3.Four-way hydraulic valve design, the front connector has hydraulic quick release function, which can quickly change different tools. 4.The maximum lift of the telescopic boom is more than 500MM, and the lifting weight is 1.5KG. 5.The tail hook can be matched with the static point 128-A carriage. 6. Herringbone tires and EVA liner can meet the operation of different terrains. 7.The truck has hydraulic cylinders for lifting, telescoping, bucket two-way locking and turning. 8.All-metal two-speed planetary gearbox, first gear reduction ratio 1:64, second gear 1:16.
Power-on Steps: 1. Confirm that the remote control CH5/8 switch position is up and the CH6/7 switch is in the neutral position, the joystick returns to the neutral position, and the power can be turned on after confirmation. 2.Turn on the remote control switch (press and hold the two switches for 2S at the same time), the interface display is turned on. 3.Connect the battery to the power supply of the main car, wait for the signal sound (within about 5 seconds), and operate after confirmation.
Notes: 1. If the sequence of power-on operations is reversed, the ESC will enter the setting mode, causing the ESC to not work normally. 2. Remote control battery installation: pay attention to the positive and negative poles of the battery during installation. 3. Before installing the main vehicle battery: measure the voltage first, and the voltage cannot be lower than 11V. 4.If you have any questions about the product or use problems, please contact us in time, we will provide the best quality pre-sales and after-sales service.
Specifications: .Color: As Shown .Material: Aluminum Alloy + Stainless Steel + Plastic + Rubber .Ratio: 1:14 .Size: L553/W220/H232mm .Weight: 9.6 KG (Included remote control) .Lifting Force: 4 kg when the telescopic boom is not opened / 1.5kg when the telescopic boom is opened / 2kg of bucket turning force .Remote Control System: FlySky FS-I6S+IA10B, equipped with 10-channel receiver .Remote Control Batteries: 4 x AA batteries (not included) .Main Vehicle Battery: 11.1V 3S lithium battery (battery connector type is XT60) (not included) .Maximum Battery Size: within the size of 100mm long, 35mm wide and 35mm high (No battery, charger and power indicator) .Product Weight: 9120g .Package Dimensions: 55.3 x 22 x 23.2cm .Package Weight: 13600g .Packing: Carton Box

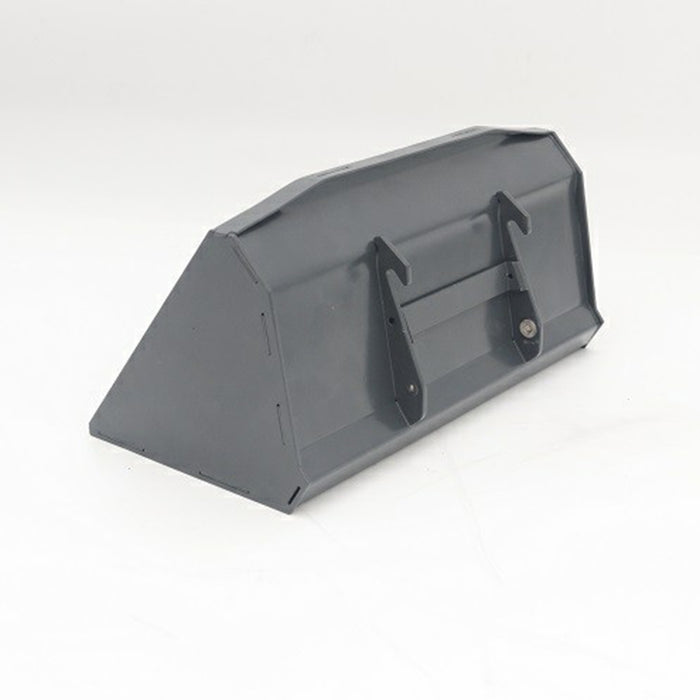

Package Content: .1 x Vehicle .1 x Bucket .1 x Fork .1 x Hydraulic Claw .1 x English Manual
