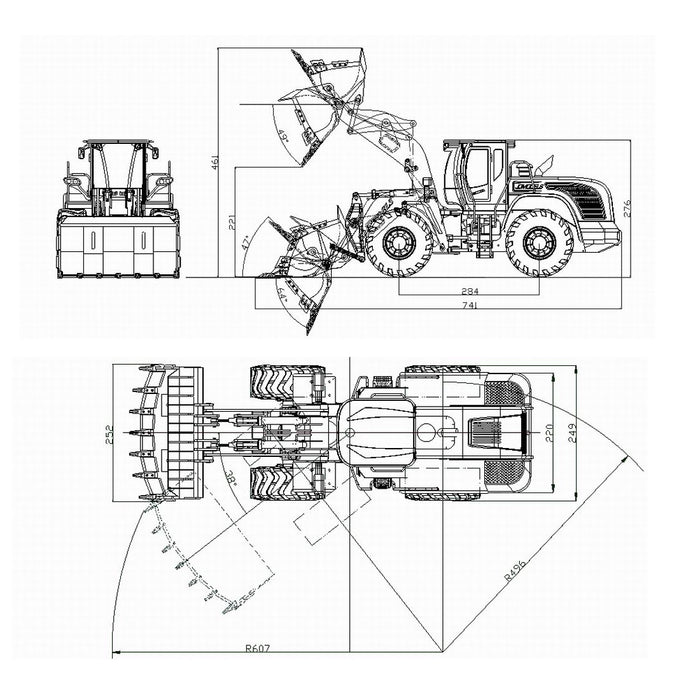

.The discharging Angle of the bucket at any Angle is greater than 49 degrees .Automatic leveling function (Figure: after unloading, just move the big arm down, and the bucket will automatically level to the loading state of about 5 degrees from the ground) .The bucket back at an Angle of 47 degrees; Design automatic translation function (Figure: after the bucket is back, you only need to move the big arm up, and the bucket will be automatically put and translated to the highest point, waiting for unloading) .Unloading height is 221mm. Unloading Angle up to 64 degrees. An Angle of 24 degrees from the ground. The lifting height of material is 461mm. Articulated frame hydraulic steering design ±38 degrees. Bucket turning radius 607mm. Tire center turning radius 496mm. .Note: 1. Start up sequence: Please turn on the remote control first, and connect the main power supply of the model. Wait 5 seconds for the ESC response before operation. 2. When the upper arm is in the lower bucket to drop material, the upper arm cannot be lifted. Otherwise, the bucket cylinder will be damaged. 3. Due to the large mass of the vehicle, it is necessary to avoid impact when handling. Otherwise, the bridge and bucket cylinder will be damaged. 4. Add 180-230 ml hydraulic fluid to the new car .Suitable for high-end professional RC model enthusiastis or construction machinery model enthusiasts. Experience the powerful charm of RC construction machinery model .If you have any questions, please consult customer service. .Suitable for over 14-year-old.
.Color: As Shown .Material: Metal .Scale: 1:14 .Length: 741mm (Lay the bucket flat) .Width: 249mm (Tire end face) .Height: 276mm .Theoretical Rising Force: 15KG (Lifting the arm) .Theoretical Traction: 30KG .Remote Control: FS-I6S (2.4G / 6CH) .Remote Control Battery: 8 x AA (Not Included) .Vehicle Battery: 11.1V 3S Lithium Battery or 12v Battery(Within 135 x 30 x 50mm) - Not Included .Hydraulic Pump: Flow Rate 0.8L/MIN. Rated Pressure 2.5mpa. Limit Pressure 5MPA .Reversing Valve: Miniature 3-way Reversing Valve with Middle Return Oil Cock .Sound Group System: Additional purchase is required(Not Included) .Lighting system: Additional purchase is required(Not Included) .Product Size: 74.1 x 24.9 x 27.6cm .Product Weight: 21000g .Package Dimensions: 88.5 x 38 x 38cm .Package Weight: 26000g .Packing: Carton Box
.1 x Loader .1 x Remote Control
