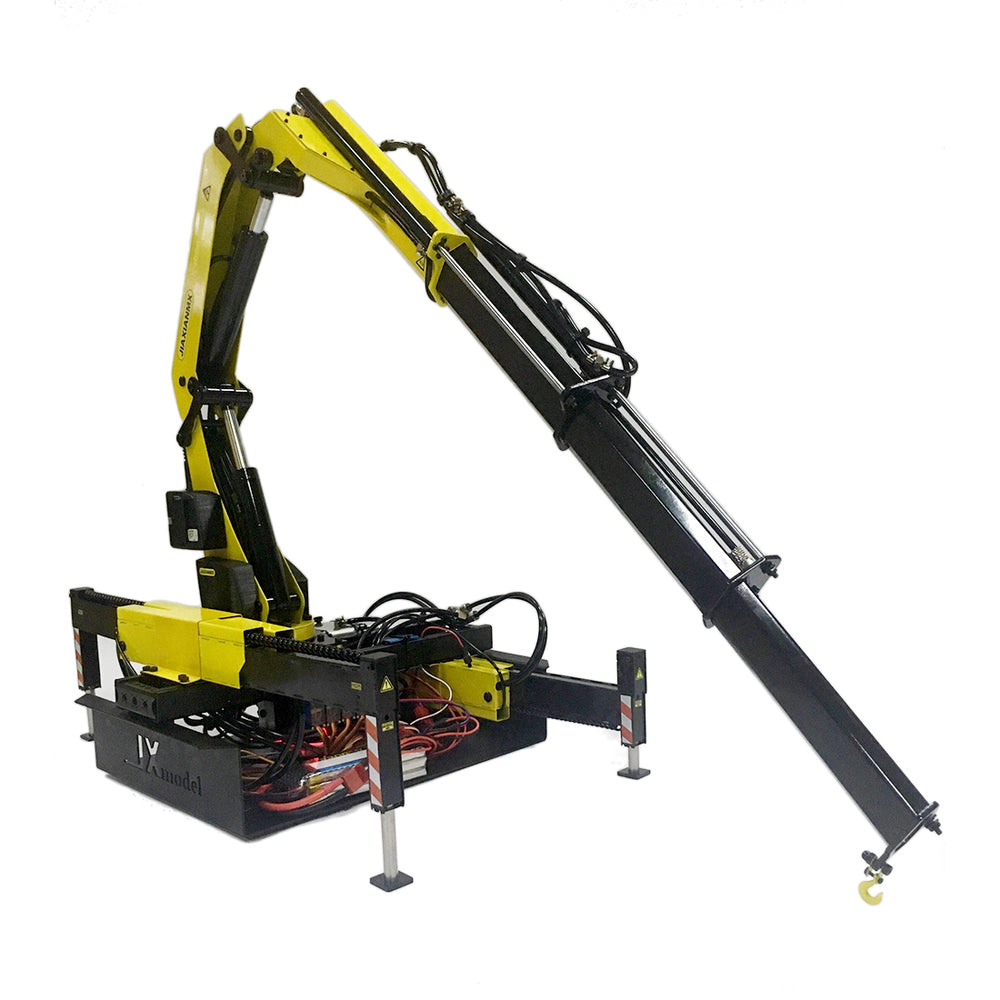

Name: JXmodel Crane Model Hydraulic Truck-mounted Crane for 1/14 Tamiya Tractor Truck (KIT)
Brand: Engine DIY
SKU: 33ED3220964
Price: 2599.99 USD
Availability: InStock

JXmodel Crane Model Hydraulic Truck-mounted Crane for 1/14 Tamiya Tractor Truck (KIT)

JXmodel Crane Model Hydraulic Truck-mounted Crane for 1/14 Tamiya Tractor Truck (KIT)

$2,599.99

SPRING SALE: Get Extra 10% Off with Coupon Code: WD10

Join Our FacebookGroup & Get Extra Discount!

Start Your MOC Engine Bricks Journey & Save up to $100 Off!

SKU 33ED3220964

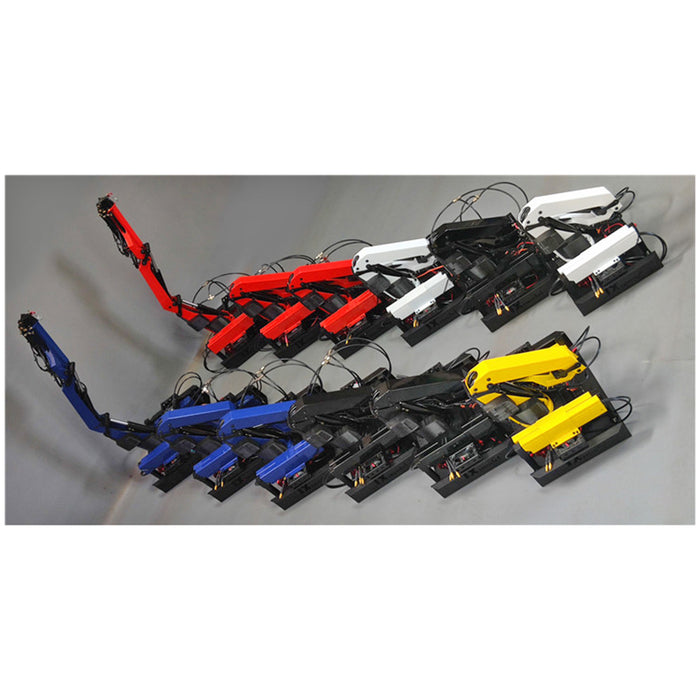

Color

Black

Yellow

Red

Dark Blue

Quantity

1. Free Shipping Of All /Return guarantee /Payment secure.

2. Please contact us for Wholesale.

JXmodel Crane Model Hydraulic Truck-mounted Crane for 1/14 Tamiya Tractor Truck (KIT)

Features:

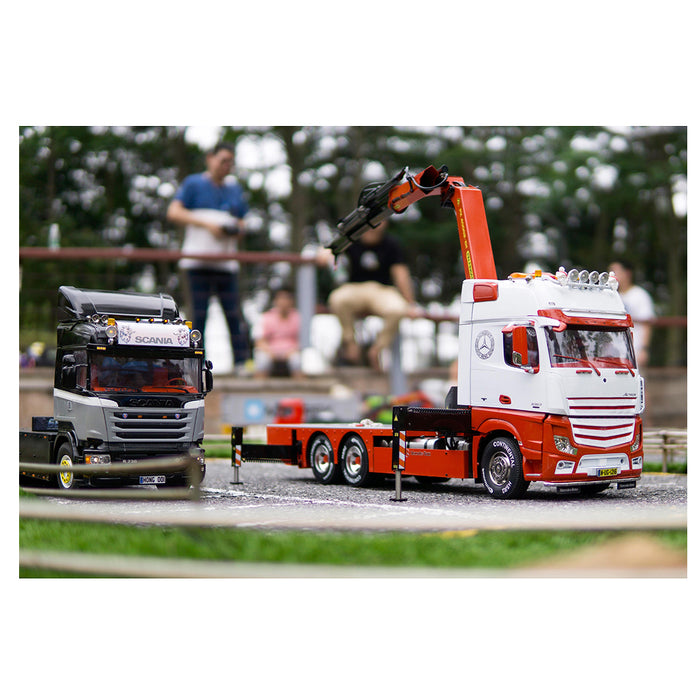

.1/14 remote control heavy truck crane model, suitable for 1/14 Tamiya tractor ratio
Product List:
1 set of main frame, 5 main frame cylinders; 4 telescopic legs, 4 telescopic leg cylinders; 4 supporting legs, 4 supporting legs, geared motors with 2 ESCs; 4-way reversing valve One is equipped with 4 9g steering gears; 1 set of turntable and turntable motor power distribution adjustment; 1 set of large flow and high pressure oil pump plus ESC; 1 set of fuel tank 82*52*52; 1 set of simulation beam, 2 sets of boom positioning plates, (Used to copy the required hole positions of the product) 1 meter of high pressure oil pipe, 1 meter of soft oil pipe, 2 pipe clamps are included; a product manual
Lifting Power:
Hydraulic (tested to lift 3KG, the reason is that the extension length of the third section of the telescopic boom is different, the lifting force is different, and you know the real car. It is recommended not to lift heavy objects, after all, it is a model, the pursuit is action, and simulation heavy objects can be lifted )
.Telescopic Leg Power: Hydraulic
.Vertical Support Leg Power: N20 reduction motor and screw

Specifications:
.Material: Metal
.Folded Size: 170(L) x 200(W) x 200(H)mm (installation reserved space not less than 170mm)
.Unfold Size: The length of the third telescopic boom is 650mm; the height of the second boom is 350mm; the hoisting height is 834mm (measured from the ground)
.Rotation angle (left/right) 360 degrees, it is recommended to be less than 360 degrees
.Power Supply: 2S-3S lithium battery (3S recommended)
.Channels: 8CH (recommended players to use less than 12CH remote controller)
.Hydraulic Oil: New ordinary national standard 46# hydraulic oil (not too thick)
.Product Dimensions: 17 x 20 x 20cm
.Product Weight: 10000g
.Package Dimensions: 70 x 35 x 30cm
.Package Weight: 12000g
.Packing: Carton Box

Package Content:
.1Set x Crane Kit
