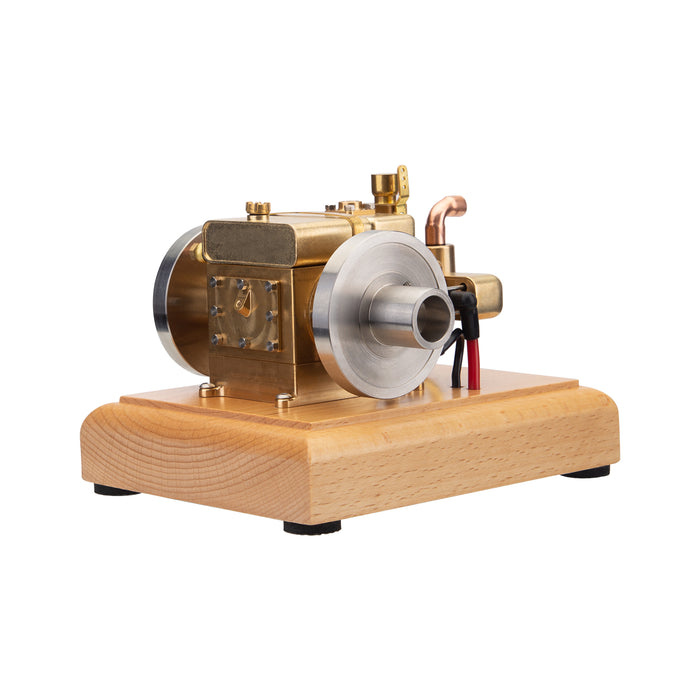

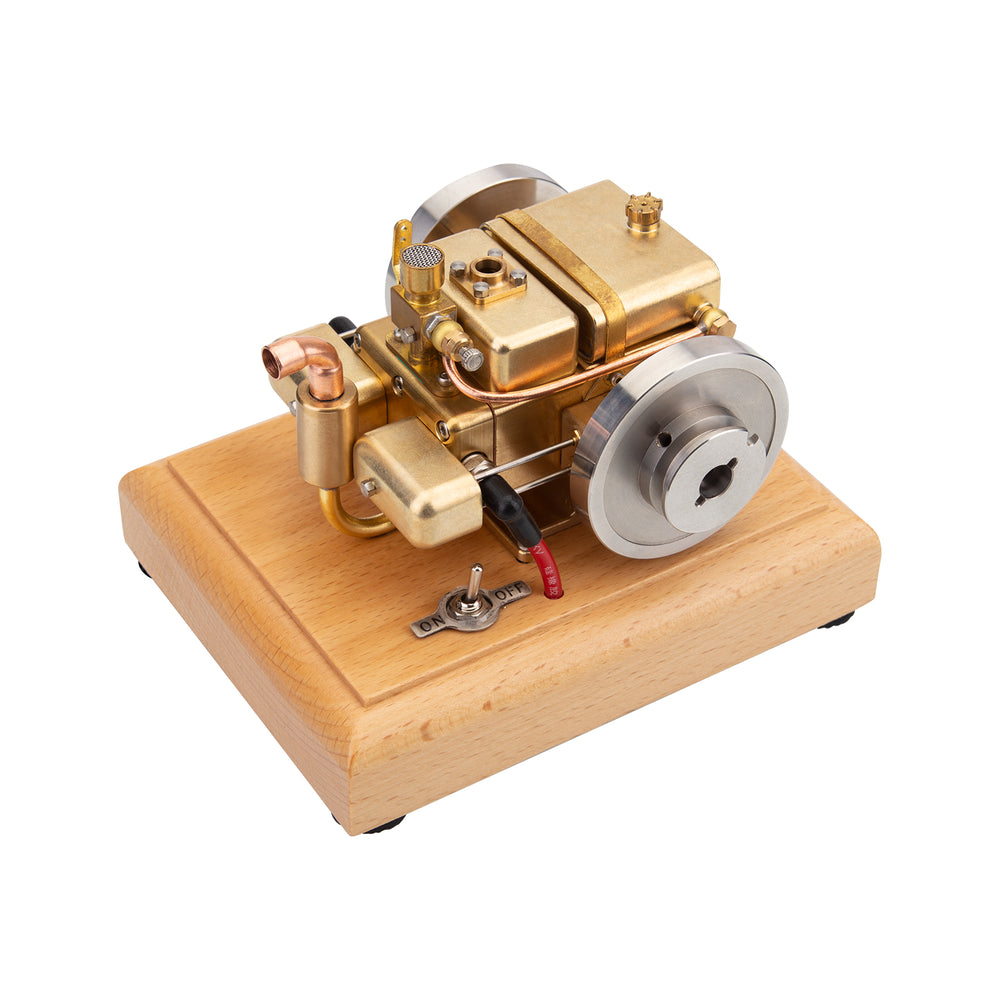

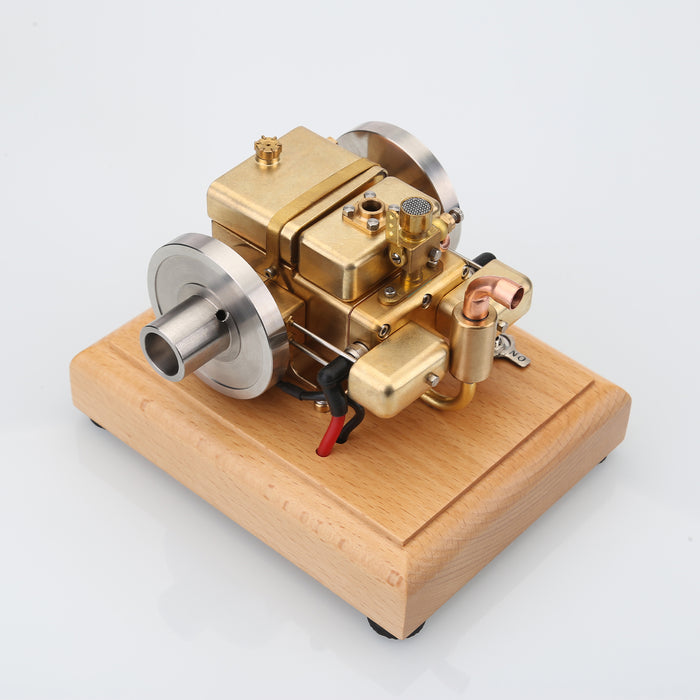

M12C 3.2cc Mini Horizontal Water-cooled Double-cylinder 4 Stroke Gasoline Engine Upgrade Internal Combustion Engine Model
Features:
Mini Horizontal Double-cylinder Engine:
Adopts water-cooled cooling structure and uses adjustable speed carburetor. It is carefully crafted from brass and stainless steel, with a unique and exquisite shape, a stable and reliable structure design, and a wooden base for easy placement and operation. You will love this retro and exquisite gasoline engine model.
Steps to Start the Engine:

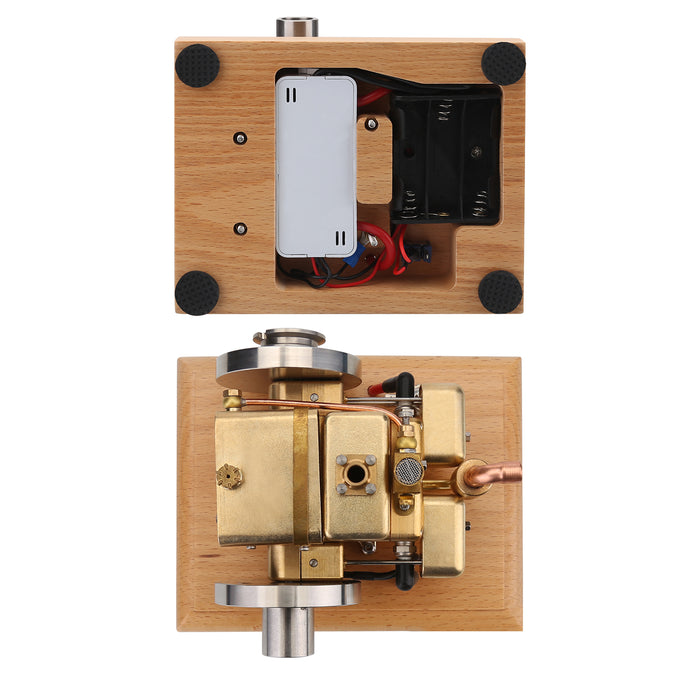

1. Check the engine wiring from the wooden base, connect the fuel tank oil pipe, and install 3 AA batteries (4.5V);
2. Fill the fuel tank with 95# gasoline, after the filling is completed, place the flywheel on the engine The right side (the surface of the power switch) rotates clockwise several times, its effect can make the mixed fuel completely enter the cylinder to ensure that there is no air in the fuel pipe;

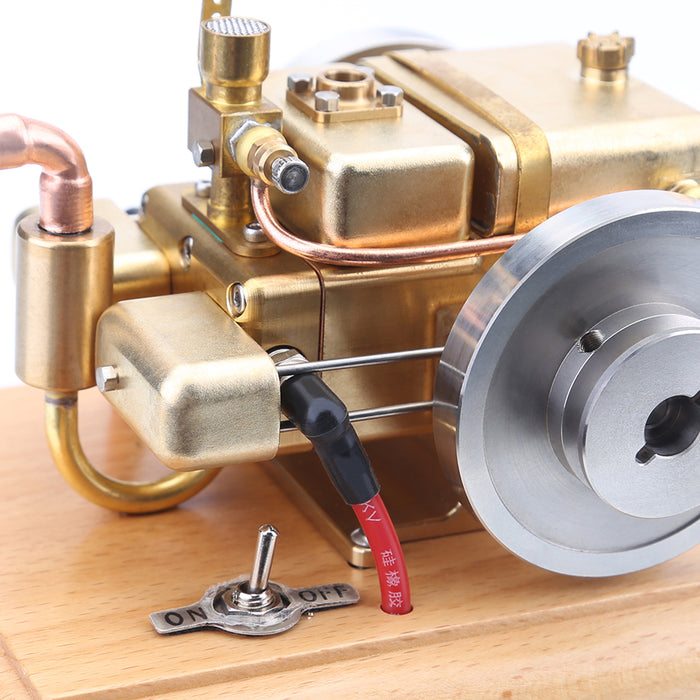

3. Turn on the power switch, and then quickly turn the flywheel clockwise so that it is on the right side of the engine (power Switch surface) to start the engine.
Notes:
1. If the ignition device is normal and the cylinder compression is normal, and the machine cannot start normally, it is likely that the carburetor oil needle needs to be adjusted;
2. After tightening the main oil needle on the carburetor, loosen it by 1/4 turn And start the flywheel to make the mixing ratio of gasoline and air reach the normal working mixing ratio;
3. When the machine stops running, the power switch should be turned off.
Excellent Gifts:
This exquisite engine model is easy to operate and full of fun. It can be used as a desktop model to play, as a boutique model for collection, and also as an excellent personalized gift for mechanical crafts model lovers.
Age: Over 14 years old
Note: If you have any questions about the product or usage problems, please contact us in time, and we will try our best to solve it for you.
Specifications:
.Color: As Shown
.Material: Brass + Stainless Steel + Wood

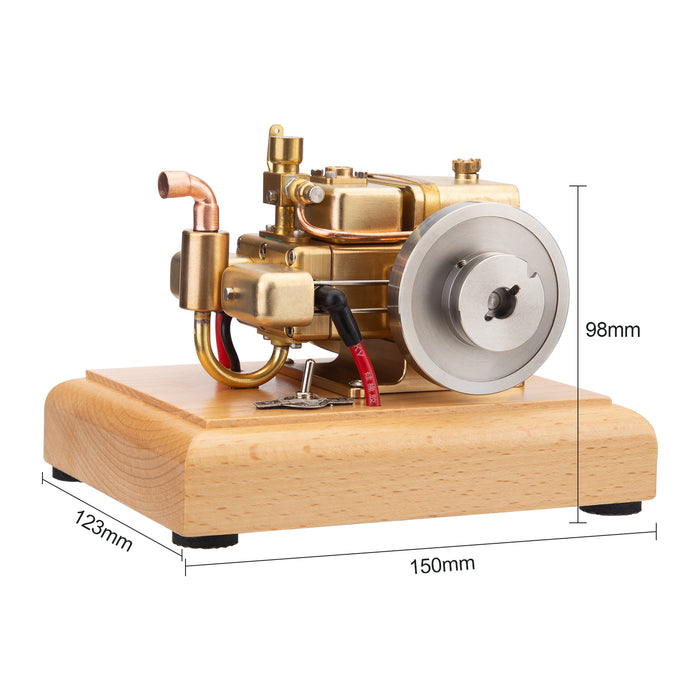

.Overall Size: 150 x 120 x 98mm
.Engine Size: 123 x 103 x 68mm
.Wooden Base Size: 150 x 120 x 30mm
.Displacement: 3.2CC
.Cylinder Diameter: 13mm
.Stroke: 12mm
.Flywheel Diameter: 56mm
.Ignition Device Power Supply Voltage: 4.5V (Need to prepare 3 x AA batteries by yourself)
.Starting method: External force (electric drill) or hand pull start
.Used Fuel: Gasoline or aviation kerosene
.Product Weight: 1700g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 2200g
.Packing: Box
Package Content:
.1 x Engine
.1 x Puller
.1 x Manual
