Electric Start Modified Kit for Inline Four-cylinder Water-cooled Gasoline Engine
Features:

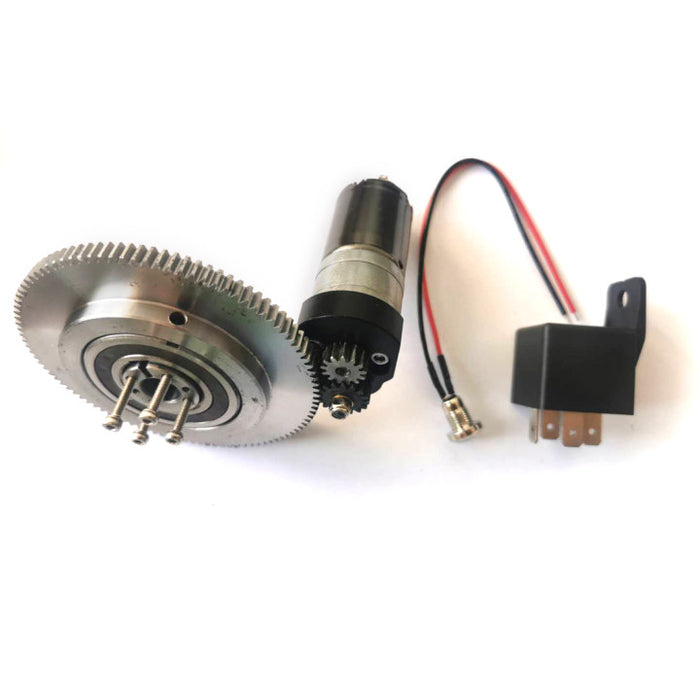

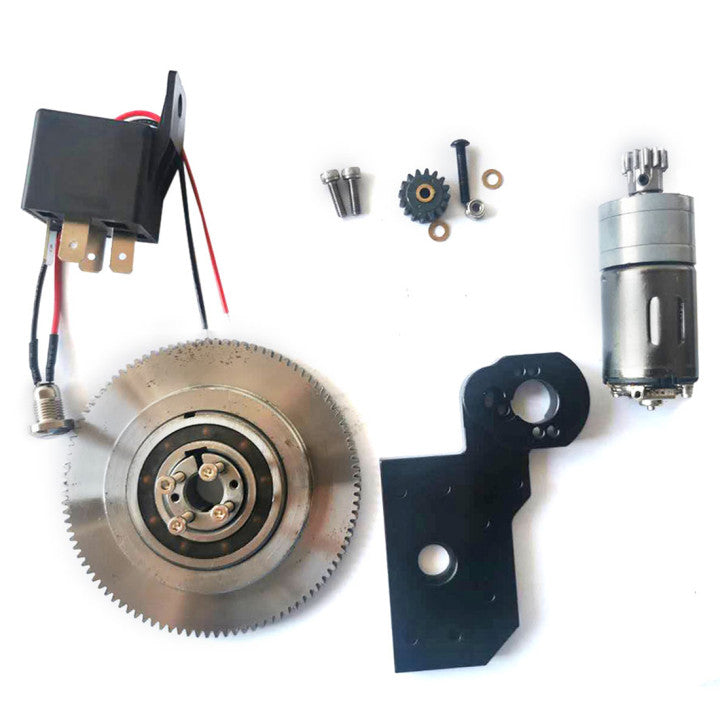

.The electric starter is specially adapted to the inline four-cylinder water-cooled gasoline engine. .The kit contains anodized sandblasted oxide black adapter plate, 0.8M starting gear, 0.8M transition gear, starting motor and 0.8M starting gear, one-way clutch, locking sleeve, starting relay, starting switch, special screws for locking sleeve, transition gear screws, etc. .Through many experiments, research and improvement, after installing this electric starter kit, it can perfectly realize the electric start of inline four gasoline engine, the starting is stable, the crankshaft is not damaged, it is easy to install and install in place without damage. .For Ages: 14+
Specifications:
.Color: As Shown .Material: Metal .Product Weight: 250g .Package Dimensions: 20 x 15 x 10cm .Package Weight: 300g .Packing: Bag
Package Content:
.1Set x Electric Start Modified Kit
Liquid error (snippets/product line 1104): Could not find asset snippets/mett-Promotion.liquid
Questions about Shipment
Q1 : Do you ship worldwide? A1 : Yes, we can ship worldwide. Q2 : Where you ship goods from? A2 : Our warehouse is located in China, the goods will be shipped from China mainland.
Q3 : What is the shipping cost? A3 : For giving customer good shopping experience, we offer free international shipment.
Q4 : What is the shipping time? A4 : For expected delivery date, please check in this page: Expected Delivery Time
Q5 : How do I track my package? A5 :You can track your order on 17track.net . Or if you need a team members help check up please contact with our service team service@enginediy.com and we will be in touch with a status update.
Questions about Payment & Order Q1 : What payment terms you can accept? A1 : For payment, we accept Paypal and Credit Card.
Q2 : My payment was declined, why? How to solve it ? A2 : If you made the purchase via Credit Card and failed, could you please contact with Stripe Support Team for solution? Or if the issue can be solved, please no worry, we accept Paypal payment as well.
Q3 : How do I cancel my order? A3 : For the order, if not shipped out yet, please contact with our Service Support Team service@enginediy.com , we will cancel your order and give you full refund.
Q4 : Is my information is securing using this site? A4 : Yes, Enginediy.com takes precautions to protect your personal information. When you submit sensitive information via the website, your information is protected both online and offline. Please don’t worry for this.
Q5 : What if my address is wrong? A5 : If the recipient's address was wrong, after the failed delivery, the parcel should be returned back to sender. After we receive the parcel, we will contact you for an updated address and arrange the new shipment.
Questions about Return & Refunds Q1 : What items are returnable? A1 : a)- We can accept returns or exchanges within the 30-day period. b)- All returned items must be in the original condition: unused, unwashed, and unworn. No exceptions. Q2 : How do I return a product? A2:Contact with Enginediy Service Team service@enginediy.com to confirm details to make sure the item is meet the return condition. After the agreement, Service Team will send the detailed return information, please offer return tracking number after return shipment. Q3 : What is you refund policy? A3 : Refunds are processed within 1-5 business days, after you received our confirmation on the cancellation.
Q4 :How will you refund me? A4 : The refund are applied to the original payment method.
Modified Electric Start Kit for 32cc Inline Four-cylinder Water-cooled
Everything is fine. The starter motor is powerful and the clamp assembly is brilliant
w
william hall (Brisbane, AU)
good unit
very good unit works well . instructions a little bit sketchy,
d
david bradley (Bognor Regis, GB)
32cc 4 cylinder Elecrtic starter
What a suburb bit of Kit, Don't think about it just buy one,
Parcel arrived easy fitment, works a treat,
I find a little prime of petrol in the carb makes starting even easier.
Surperb engineering, used Fema ones in the past these are half the cost,
David UK
S
Susanne Kiler (Oakland, US)
Not yet tried
I have not tried the item out yet as I am waiting for the base to arrive, that I ordered from your company.
Please check back with me later
B
Bruce young (Albany, US)
Not for the novice, but works well.
The item is well made and works great once installed, but the only instructions amount to a very “polished” video that omits any sticky issues.
First, the set screw holding the flywheel flange to the crankshaft is on with lock tite. Either a big soldering gun or torch will be needed to heat it and free it. I used a small jewelers pencil flame torch. Worked great.
Second, once the rear plate is removed from the block, clean the lip of the oil pan up and use high temp red silicone to seal the new back plate when installed. Otherwise you’ll have an oil leak and get to do it again.
Adjusting the mating between the one way clutch and starter big gear by loosening the set screw will help get things aligned properly.
I’m still not totally confident of reassembly of the flywheel. The only method I figured out that worked was using the long screws provided and flipping the flywheel over with the recessed middle facing out to install it onto the starter clutch collet. You won’t have much crack left sticking out, so any thoughts of adding a pto pulley will be complicated.
Don’t try to run the starter off the ignition battery pack. The current draw is too high, and prolonged cranking will literally melt the battery tray. A dedicated starter battery is the ticket. I’m using a 9.6v NiMH pack for the starter circuit.
Again, a great product once you figure it out. It looks great and works fine. The total lack of instructions assumes a lot from the buyer.
