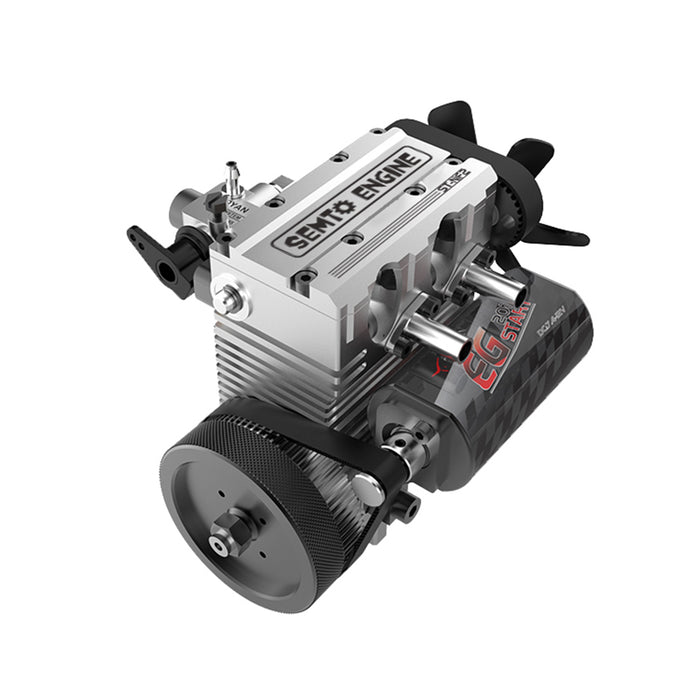

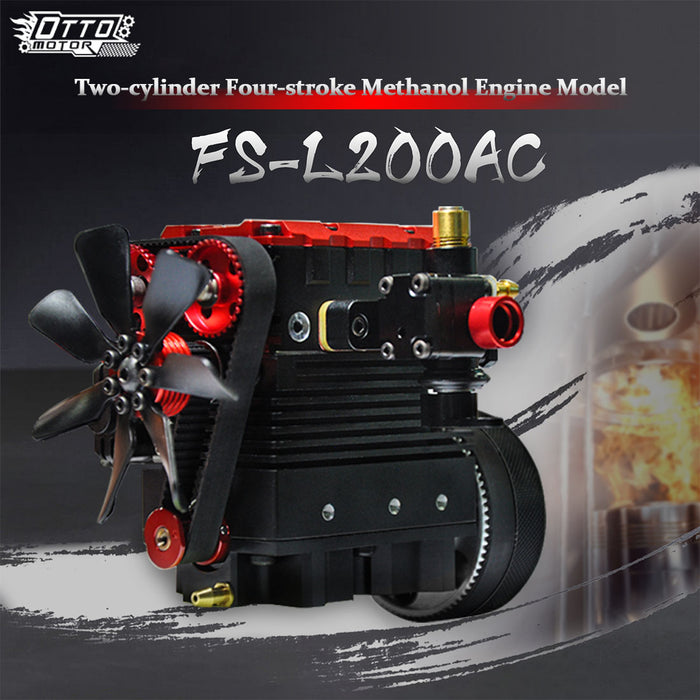

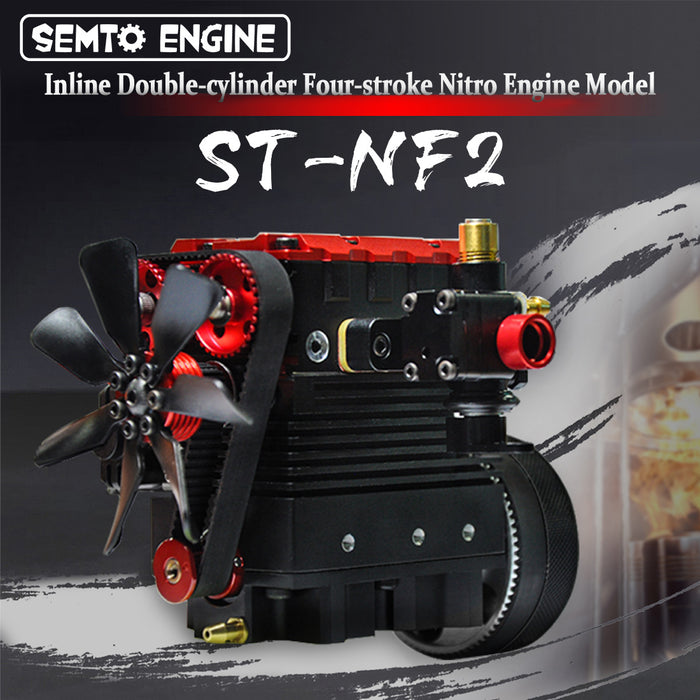

Warm Tips: A. The red one sold on USA only , the silver one sold on worldwide B. These 2 are the same engine but with 2 different logos on the cover, one is OTTO MOTOR which is off production now, one is SEMTO ENGINE. Orders after 12th, Dec will be shipped with the new logo SEMTO ENGINE. Any advice, please email us at service@enginediy.com

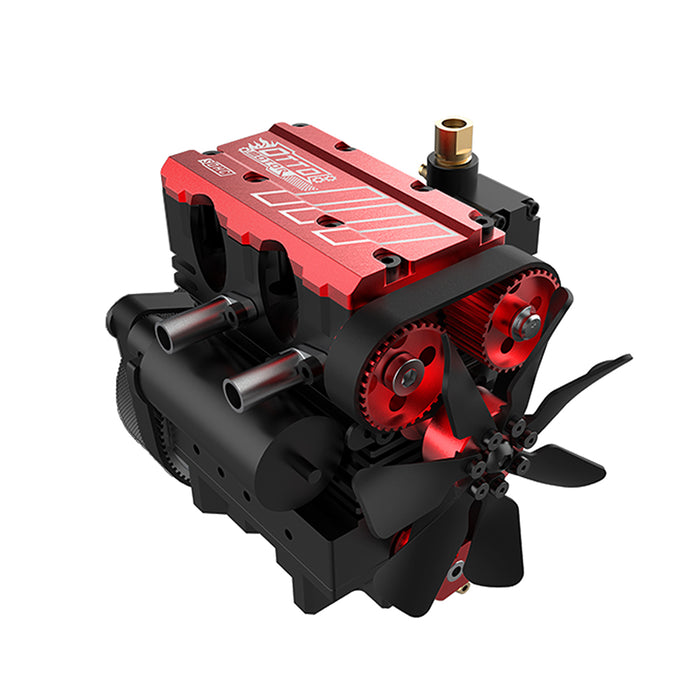

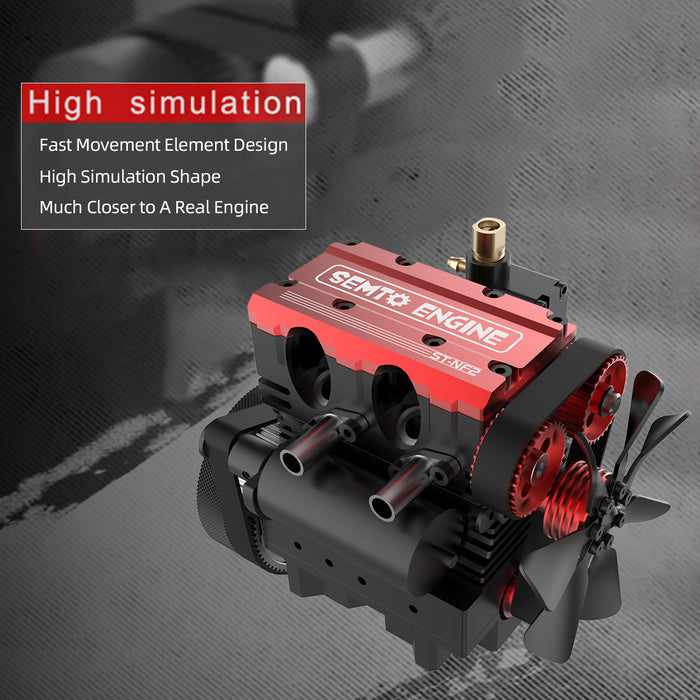

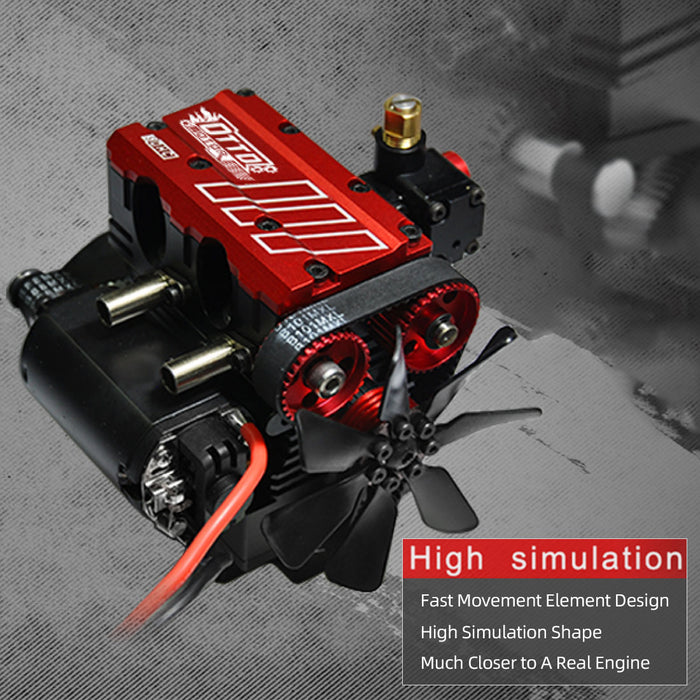

High Simulation: The engine model with a realistic appearance and red sport elements meaning thunderbolt movement, whcih gets closer to a real engine.

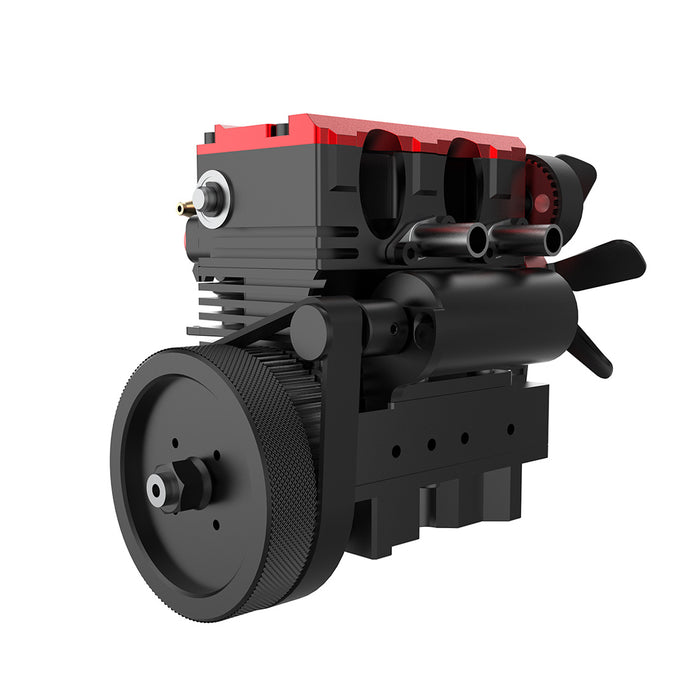

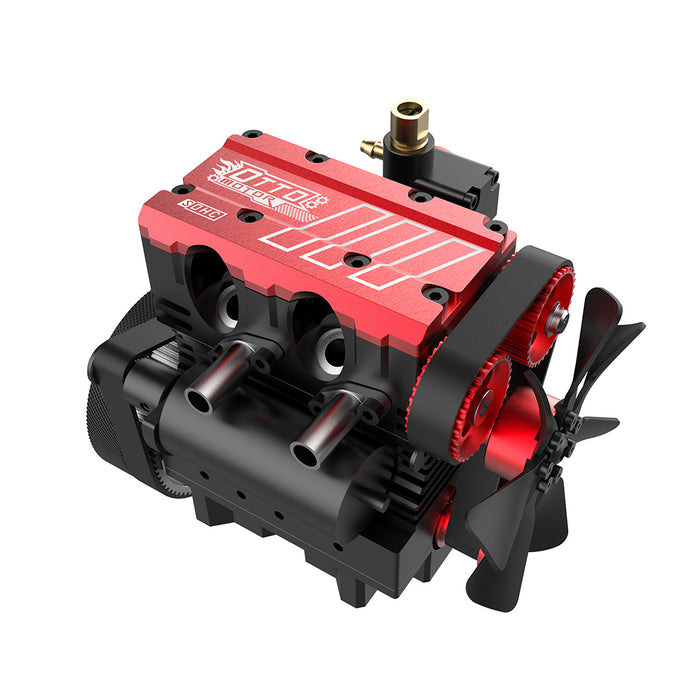

Miniature IC Engine Model: Treated by aluminum CNC processing and oxidation coloring, this SEMTO/ OTTO & TOYAN engine features a meticulous surface, compact structure and lightweight body.

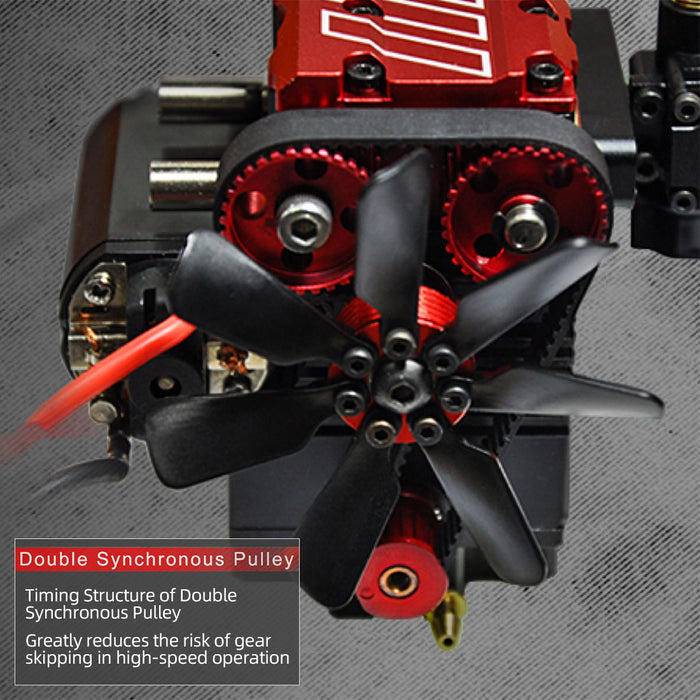

Dual Synchronous Belt Pulley: The timing structure of a dual synchronous belt pulley greatly reduces the risk of gear jumping in high-speed operation.
Rocker Arm: The short rocker arm makes the valve switch operation more accurate.

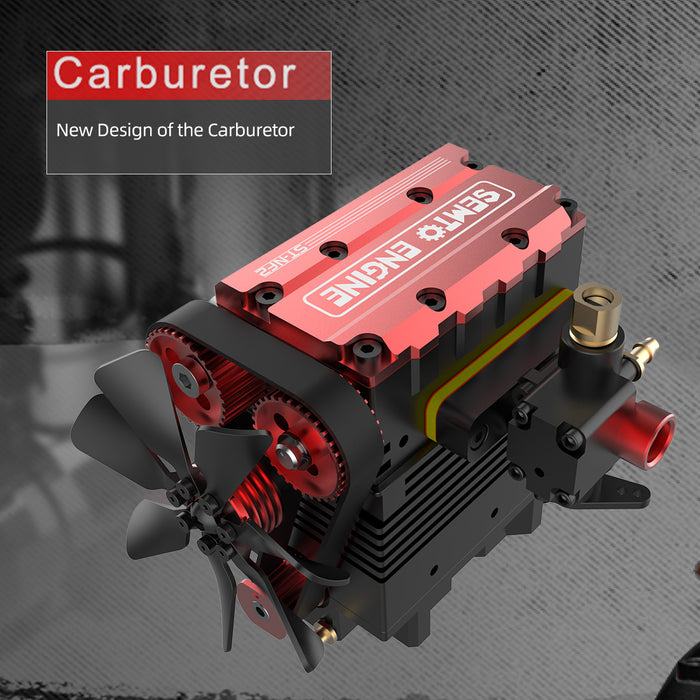

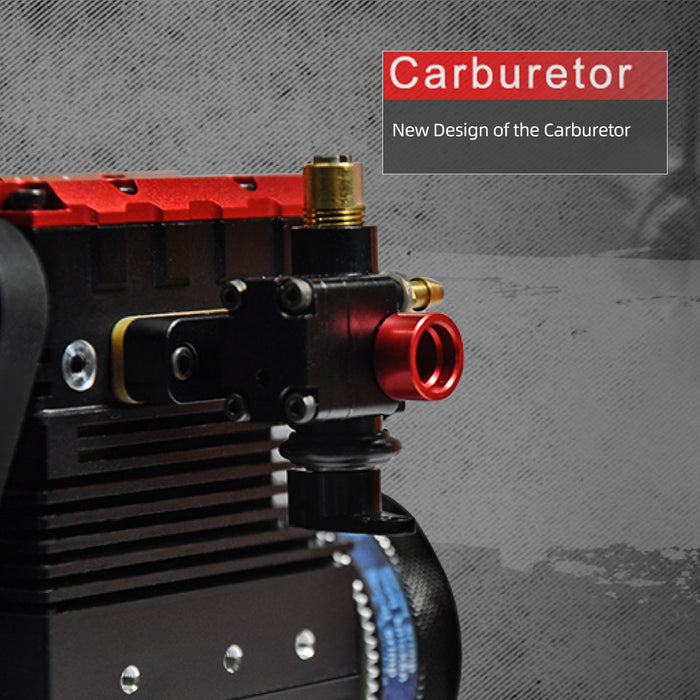

Carburetor: Enjoy easier adjustment and more sensitive throttle response thanks to the brand-new signal carburetor.
Electrical Starting: Equipped with a high-torque starting motor for a more convenient and smooth start.

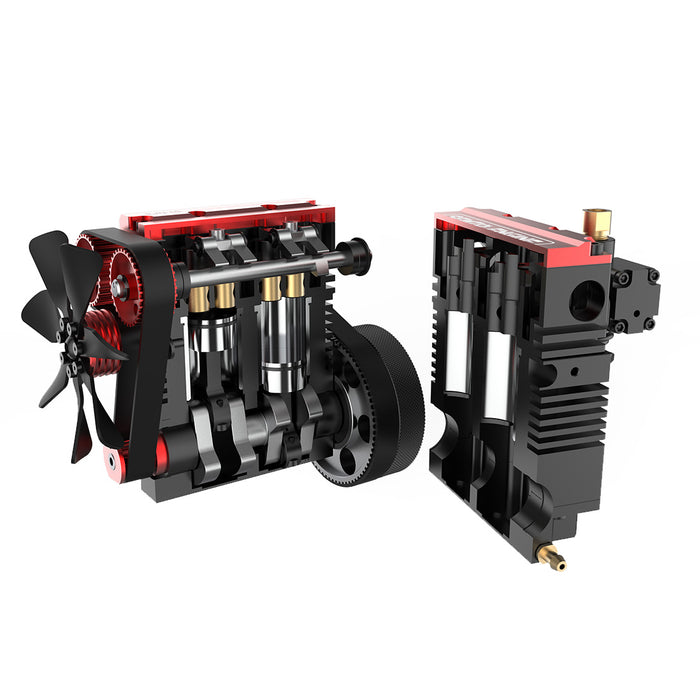

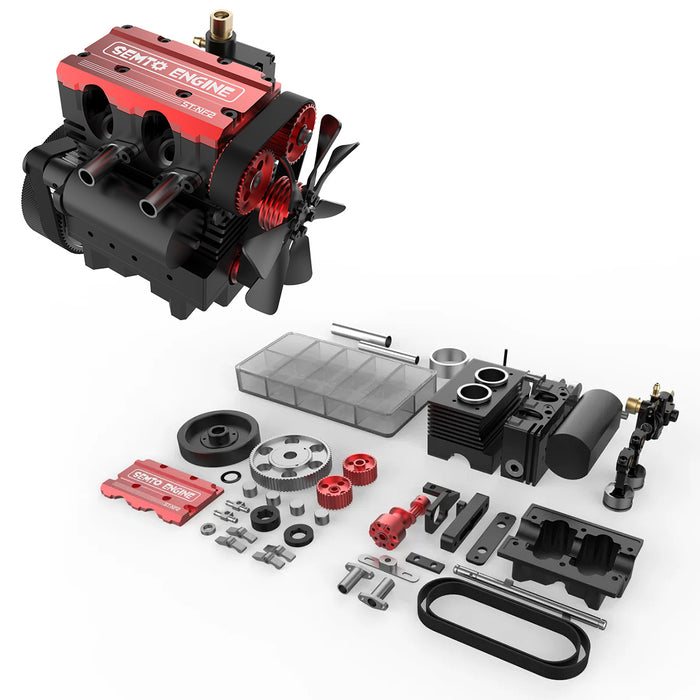

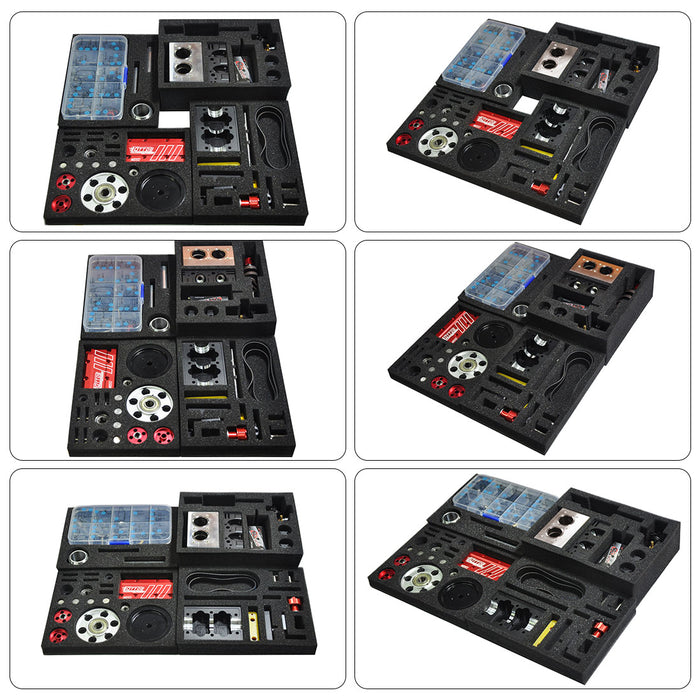

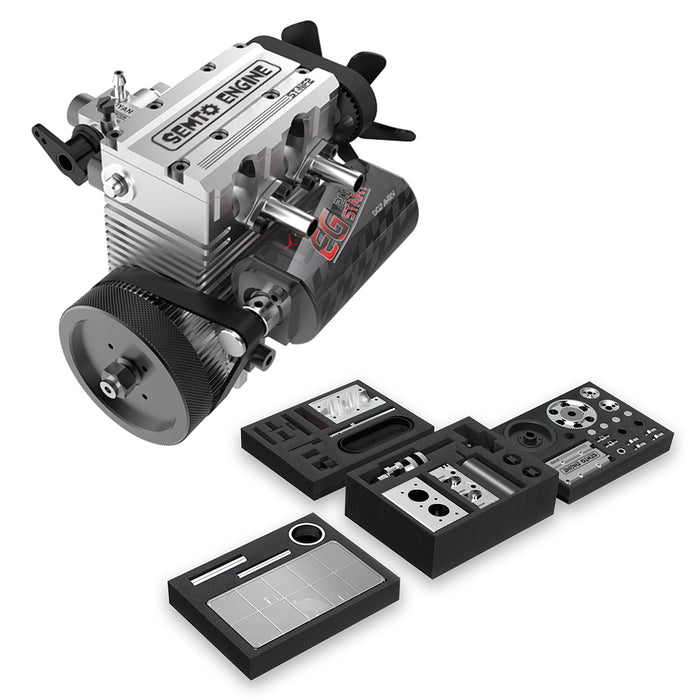

Enjoy DIY Fun: You can walk through the internal structure and mechanical operation principle of the engine while enjoying DIY assembling fun with the desktop engine model.
Wide Applications: Blending perfectly with a gearbox for superior compatibility and an excellent guarantee to upgrade, the product makes a stunning mechanical artware, an ideal gift for mechanical engine enthusiasts and a superb teaching aid for demonstration teaching in physical & mechanical classes.

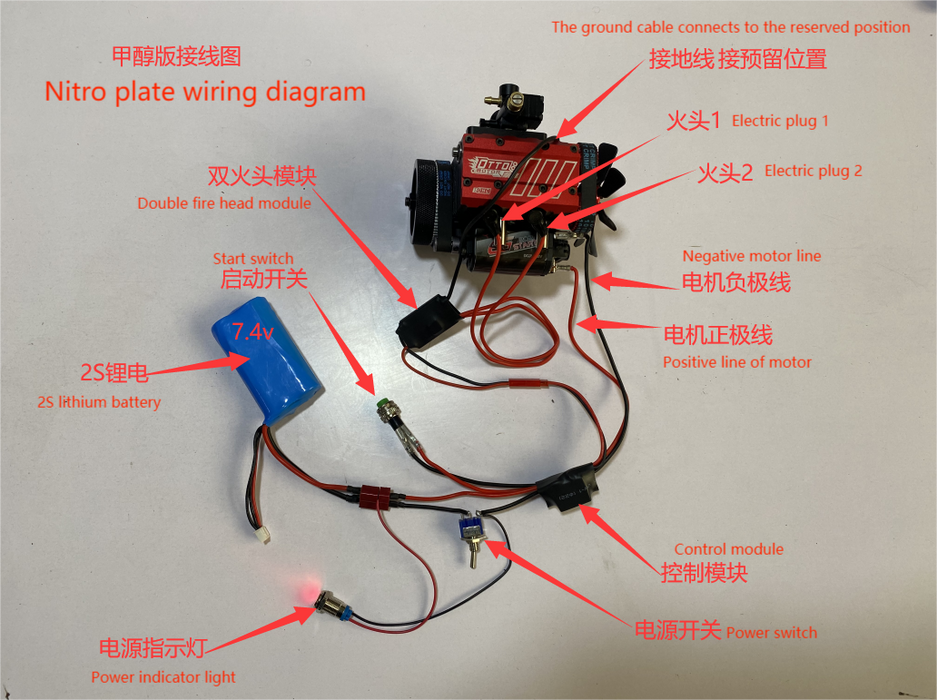

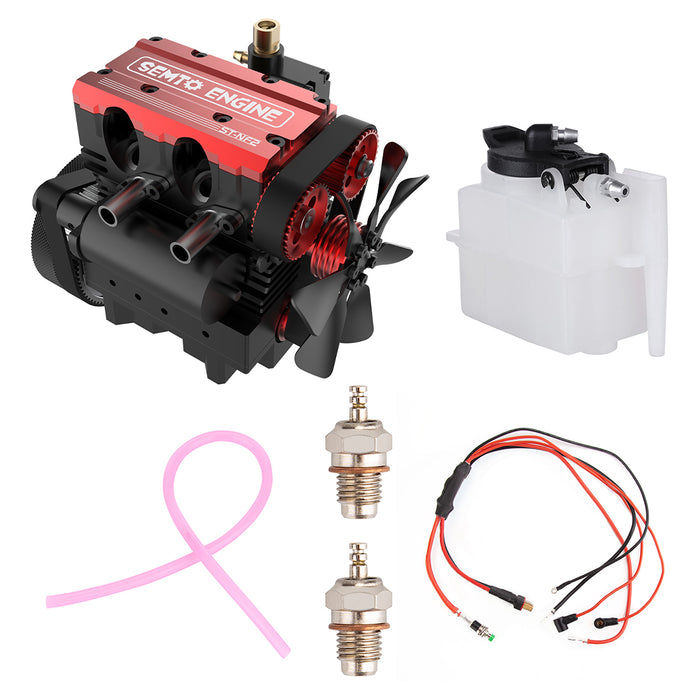

Warm Tips: Starting Ignition set is not included, please prepare or buy it by yourself. If there is any questions or advice, please feel free to contact us service@enginediy.com

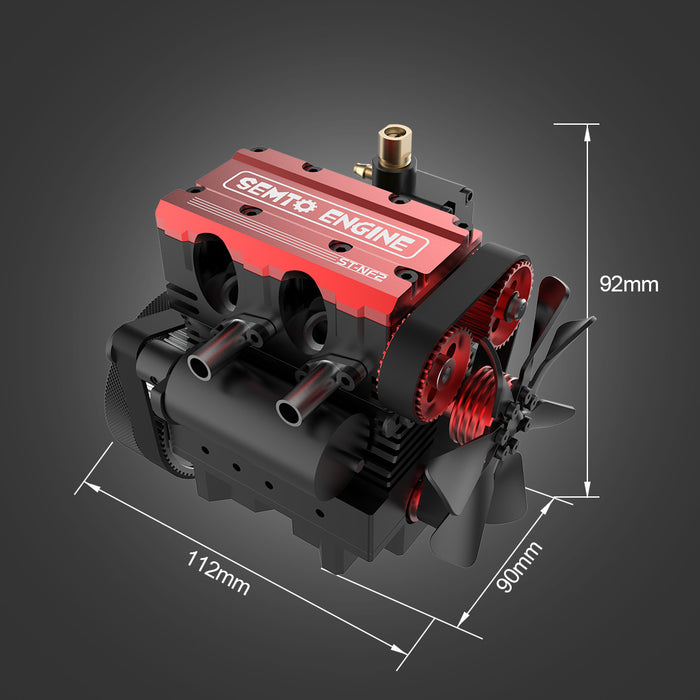

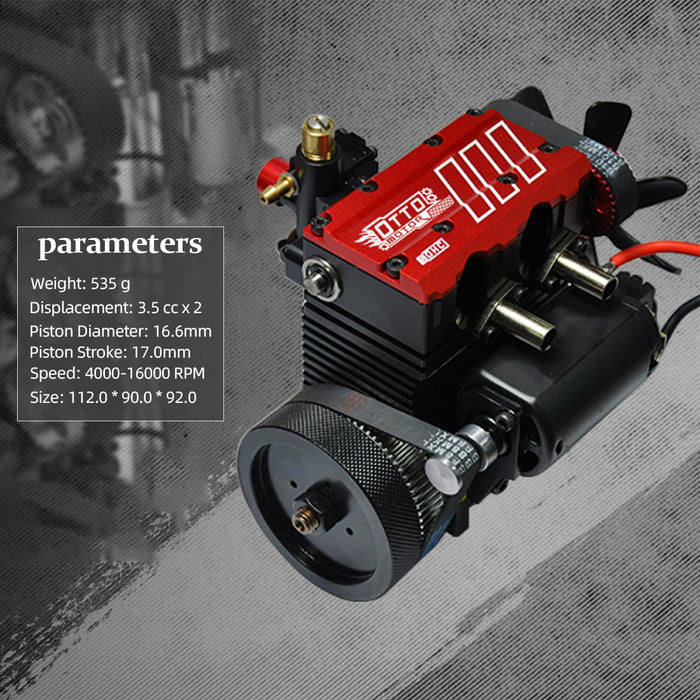

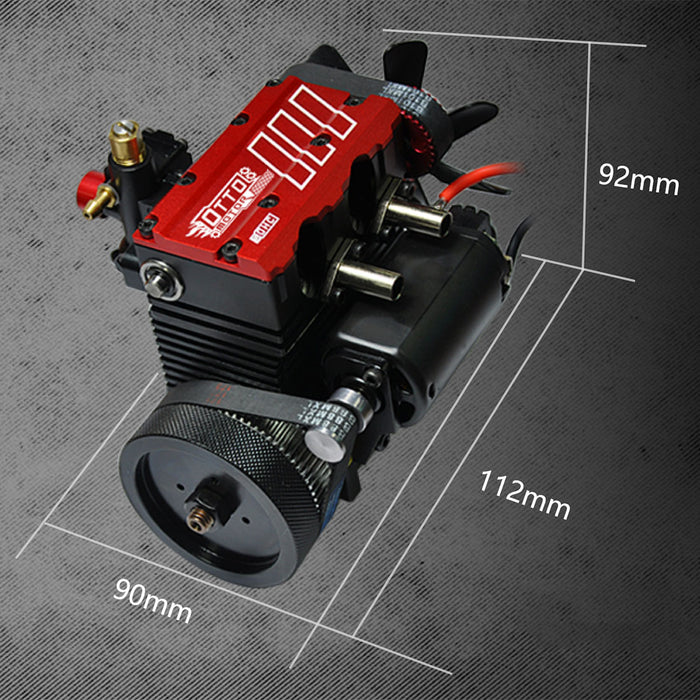

Know More: .Material: Metal .Brand: SEMTO/ OTTO MOTOR & TOYAN .Model: ST-NF2/ FS-L200AC .Form: Kit Version .Engine Type: Nitro Internal Combustion Engine Model .Valve Mechanism: SOHC .Displacement: 7 (3.5*2)cc .Cylinder: Inline Double-cylinder .Stroke: Four Stroke .Cyilinder Diameter: 16.6mm .Stroke: 17.00mm .Speed: 4000-16000rpm .Power: 0.6ps .Cooling Mode: Air Cooling .Lubrication Mode: Mixed Oil Lubrication (add grease) .Starting Mode: Electric .Ignition Mode: Ignition Modules (Not Included) .Type of Electric Plug: F-type Four-stroke Electric Plug (Not Included) .Starting Voltage: 7.4V 2S Li battery (Not Included) .Fuel Type: 20-25% Nitro Fuel .Product Dimensions: 11.2 x 9 x 9.2cm .Product Weight: 535g .Package Dimensions: 14.5 x 11 x 11.2cm .Package Weight: 800g .Packing: Graphic Carton .Ages: 14+
Liquid error (snippets/product line 1123): Could not find asset snippets/mett-Promotion.liquid
Questions about Shipment
Q1 : Do you ship worldwide? A1 : Yes, we can ship worldwide. Q2 : Where you ship goods from? A2 : Our warehouse is located in China, the goods will be shipped from China mainland.
Q3 : What is the shipping cost? A3 : For giving customer good shopping experience, we offer free international shipment.
Q4 : What is the shipping time? A4 : For expected delivery date, please check in this page: Expected Delivery Time
Q5 : How do I track my package? A5 :You can track your order on 17track.net . Or if you need a team members help check up please contact with our service team service@enginediy.com and we will be in touch with a status update.
Questions about Payment & Order Q1 : What payment terms you can accept? A1 : For payment, we accept Paypal and Credit Card.
Q2 : My payment was declined, why? How to solve it ? A2 : If you made the purchase via Credit Card and failed, could you please contact with Stripe Support Team for solution? Or if the issue can be solved, please no worry, we accept Paypal payment as well.
Q3 : How do I cancel my order? A3 : For the order, if not shipped out yet, please contact with our Service Support Team service@enginediy.com , we will cancel your order and give you full refund.
Q4 : Is my information is securing using this site? A4 : Yes, Enginediy.com takes precautions to protect your personal information. When you submit sensitive information via the website, your information is protected both online and offline. Please don’t worry for this.
Q5 : What if my address is wrong? A5 : If the recipient's address was wrong, after the failed delivery, the parcel should be returned back to sender. After we receive the parcel, we will contact you for an updated address and arrange the new shipment.
Questions about Return & Refunds Q1 : What items are returnable? A1 : a)- We can accept returns or exchanges within the 30-day period. b)- All returned items must be in the original condition: unused, unwashed, and unworn. No exceptions. Q2 : How do I return a product? A2:Contact with Enginediy Service Team service@enginediy.com to confirm details to make sure the item is meet the return condition. After the agreement, Service Team will send the detailed return information, please offer return tracking number after return shipment. Q3 : What is you refund policy? A3 : Refunds are processed within 1-5 business days, after you received our confirmation on the cancellation.
Q4 :How will you refund me? A4 : The refund are applied to the original payment method.
I like the little engine but I don't have the plugs or the other stuff to get it started would like to get it going so I can start it
H
Hans Mulder (Schagen, NL)
Nice little engine
Nice building kit of a 7 cc 2 cilinder engine. The kit is very complete, and easy to build. Only one minor detail : the box with small parts and screws is not transport proof. There is space between lit and box that alows the parts to move and mingle. It becomes a puzzle. The engine is OK after the puzzle is sorted out. Nice engineering.
R
Rob Crèvecoeur (Epe, NL)
nice engine, fast delivery

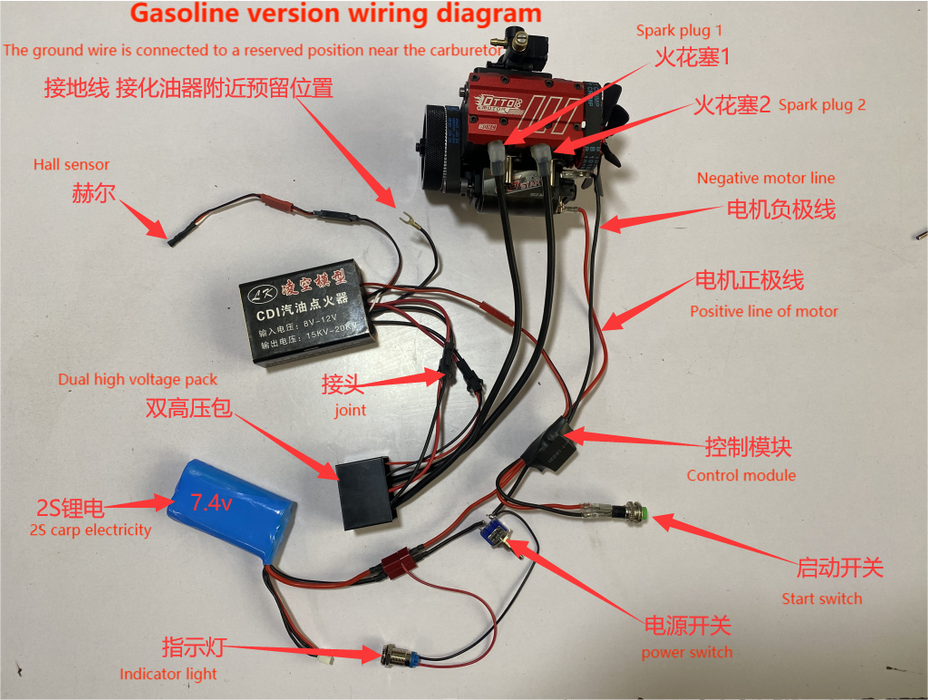

I spent a day to put all the parts together and nothing was missing, no left overs! Nice machining. I used the conversion for gasoline and in the beginning it didn't start. I found out that the hall sensor works only one-way up, so, after turning it around, the motor started and runs very well. I suppose it has to run in, because taking over from stationary to full speed doesn't work so well. I fiddled with the mixture screw, but that did (up to now) not help much. Also it became very hot. After longer run in, i think, it will turn much better! But, all in all, nice motor, well made!
S
S.W. (Copenhagen, DK)
what a nice little 4 stroke engine.
I received this little engine a coupple of months ago. delivered fairly fast with DHL.
I spend a coupple of evenings putting the parts together as described in the manual (online) and the thing would not start no matter what i did. It turned out one glowplug was defective and a little complaint was filed to Engine Diy. one week later a new glowplug (os brand) turned up in my mail box at no cost. this i super service!
after running the engine wich startet rigt up after the new plug was installed, I broke a starting belt ... simply by running the starter for a wery long period due to the glow plug failure and a lack of attention to the "preload" of the startingbelt. I ordered a new one and wrote afterwards to DIY that they were welcome to send one for free due to the glowplug that lead to the startingbelt issue. a coupple of hours later i recieved a message from DIY: Dear Sir, we will send you two new belts! This is unbelievable god service and I am not sure that I would get such a service even from my local Hobbyshop. I am wery pleased with the service and the shipping time. The engine is nice and priced fair or maybe even cheap to be honest. I would like to se an engine in almost same size that woud deliver aprx. 1,2hp. and with watercooling ... if it was a 300usd. engine it would be ok with me as long as it could deliver more power and run cool (watercooling). Conclusion: super service, cheap, nicely build product, fast delivery ... whats not to like.
