Steam Engine: Working Principles, DIY Builds, and Common Uses



Steam engines powered industries, trains, and ships, thus transforming the world for centuries. We’ll provide insight into the basics of the steam engine, including its history, and also tell you how this engine works with interesting, science-based facts. Plus, we’ll provide a step-by-step tutorial for assembling of steam engine model utilizing a DIY model kit.

1) What’s a Steam Engine?

“As the name suggests, in this engine, burning fossil fuel ( mostly Coal & Gas ) is used to boil water and produce steam, which is pressurised and directed into a cylinder in which it moves the piston and produces mechanical power, which drives locomotives, trains, etc.”

It is worth noting that in steam engines, the combustion of coal/gas and also the water boiler ( which produces steam ) is placed outside the engine. So, steam engines are also known as external combustion engines.

•  History of the Steam Engine



Before the development of Internal combustion engines in 1860 ( these days, car/jet/boat/train engines ), the steam engines ( external combustion engines) were considered the tip of the tech and were used everywhere.

The tale of the steam engine goes back to the 1st century AD, when Hero of Alexandria invented the aeolipile, a motion device that used steam but lacked practical use. Later, the simplest form of a steam turbine device was recorded in Ottoman Egypt by Taqi al-Din in the year 1551.

In 1606, Jerónimo de Ayanz y Beaumont patented his creation, the first steam-powered water pump used for mining operations. But his findings were not documented or shared with our world.

Later, in 1698, Thomas Savery created the first commercially steam-powered pump meant to extract water from mines. Following this, Thomas Newcomen improved Savery’s design in 1712 with a more efficient atmospheric steam engine that gained popularity in the mining industry.

The true turning point came when James Watt, starting in 1765, added a separate condenser to Newcomen’s engine, which greatly increased its power and working capacity.

The story does not end there; in the 1800s, Richard Trevithick first came up with the idea of the high-pressure steam engine and later created the first steam locomotive.

George Stephenson went on to improve locomotive construction in 1814, and by 1829, his famous steam locomotive “Rocket” became the standard for all future steam trains.



2) How does a Steam Engine work?



Before going into the working of a steam-powered engine, let us understand it parts first;

• Boiler: It’s a Cylindrical tank that heats water to create high-pressure steam.

• Steam Cylinder: It is like a Hollow, tube-like chamber where steam pushes a piston back and forth.

• Piston: It looks like a solid cylindrical rod that moves in and out of the cylinder, driven by steam pressure.

• Connecting Rod: They are long, straight metal bar that links the piston to the crankshaft, turning back-and-forth motion into rotary motion.

• Crankshaft/Flywheel: It is a rotating wheel with a crank arm that stores and transmits the engine’s rotary power smoothly.


• Slide Valve/Valve Gear: It looks like a flat or cylindrical sliding piece that controls the timing and direction of steam entering and leaving the cylinder.


• Condenser: Box-like or tubular structure that cools the used steam back into water to recycle it and improve efficiency.


• Governor: Spinning ball mechanism with arms that adjust the steam flow to maintain a steady engine speed.




   Working Mechanism of the Steam Engine

The working mechanisms of steam engines are based on the Rankine cycle. It’s a basic thermodynamics cycle that explains the process of transforming heat energy into mechanical work using water and steam in a continuous and closed loop. It generally has four stages. So, let's discuss them one by one.



Step 1) Isentropic Compression (Pump Stage)

This cycle actually starts with using cold water, but the problem is that it has low pressure, so at this stage, basically, the pressure of water increases, so that it takes up more heat in the boiler to generate steam, thus the engine will work efficiently. Well! A pump provides this function by performing isentropic compression (compressing water without heat transfer). It’s like pumping a bicycle tire, but the difference is that here you are using water. Clear!

Step 2) Isobaric Heat Addition (Boiler sub-phase)

Now, this high-pressure water is pumped into a strong metal container called a boiler, in it is heated at constant pressure (isobaric heat addition ) using fuels such as coal, wood, or oil. As the water temperature reaches above 100°C (212°F), it converts into steam.

Here, the interesting point is that steam takes up more space ( 16000 times that of liquid water) as compared to water. This is because in steam, water molecules are more separated from each other in contrast to liquid water in which is closely packed. It increases more pressure inside the boiler.

Step 3) Isentropic Expansion (Turbine or Engine Stage)

When the pressure is high enough, then steam is released into a cylinder. Here, keep in mind that a cylinder contains a piston ( a solid piece of metal which can slide back and forth). Now, this is the steam that pushes the piston so it slides forward. This is the transformation of steam’s energy into motion described by Newton's Second Law (F = ma)

The movement of the piston is not finished yet. This is because, this piston is further connected to a crankshaft, which converts the back-and-forth (reciprocating) motion into rotary motion to drive wheels or machines. This is the section that does something useful mechanically.

Step 4）Isobaric Heat Rejection (Condenser Stage)

After the piston’s movement, used steam temperature moves into te condensor, where it cools down and converted into liquid at constant pressure. This cooling step permits the working fluid to be restored to its original condition so that it can be pumped once more, thereby improving efficiency.

Thus, the engine continuously repeats the process: steam is introduced, the piston is pushed, movement is generated, and steam is expelled. This is a complete and constant process of the conversion of thermal energy into mechanical energy, powering the engines of trains, ships, and older machines.

3) Common uses of the Steam engine

The steam engine was an exceptionally impactful invention of science and technology. It enabled people to work faster, travel farther, and build more than in comparison to the past.  Let’s have a closer look at its daily life uses!

i) Trains and Railways

Travel was incredibly slow, tedious, and troublesome before the advent of steam engines. People would ride horses or utilise wagons to travel. With the invention of steam engines, trains were now able to transport passengers and goods over long distances in a relatively short period of time. This steam-powered train travel connected cities and improved the economy by enabling the rapid transport of goods in bulk.

ii) Ships and Boats

In past, sailing vessels were reliant on the wind, which could be quite inconsistent. However, ships with steam engines could move even during still air. This allowed steamships to maintain schedules irrespective of weather conditions. Moreover, cross-country trade saw a boost since goods could be transported reliably and securely through rivers and oceans. Plus, travel to new lands also became faster than ever.

iii) Factories and machines

The heart of the Industrial Revolution was the steam engine. It powered machines for spinning thread and for wood and metal cutting in factories. These jobs were previously done either by hand, with the help of animals or not done at all. Thus, work became faster with steam engines. Machines could do what many workers had to do before. This led to widespread availability of cheap products.

iv) Mining Work

Similarly, mining like lifting coal or heavy loads to the surface, as well as water flooding tunnels, was slow and dangerous. However, owing to the invention of Steam engines, this issue was solved. This is because such engines power the pumps that remove water, as well as help winches for lifting coal. These technologies helped miners obtain more resources that fueled industries dependent on coal and minerals.

v) Farming Tools

In agriculture, steam engines took the place of animals for pulling big, heavy implements. They also powered tools which could harvest and de-bulk crops much faster than humans could. This allowed farmers to cultivate larger areas and produce much more food using fewer labourers. With more efficient farming, the food supply for growing towns and cities, particularly during the industrial period, improved significantly.

4) How to build a steam engine?

You might be asking yourself if it's even possible to create a steam engine model at home. Whether you are a hobbyist or a student, we know that your level of curiosity is high. That’s why we at engineDIY have developed a DIY engine model kit, which includes all the tools and equipment needed to design a working steam engine model right at home.



All you have to do is follow the instructions, and you can start assembling it. Additionally, for the rest of you who want a bit more guidance, we will be providing a detailed step-by-step tutorial that guarantees if you follow the provided structure, your problems are as good as gone, and it will unleash your imagination!

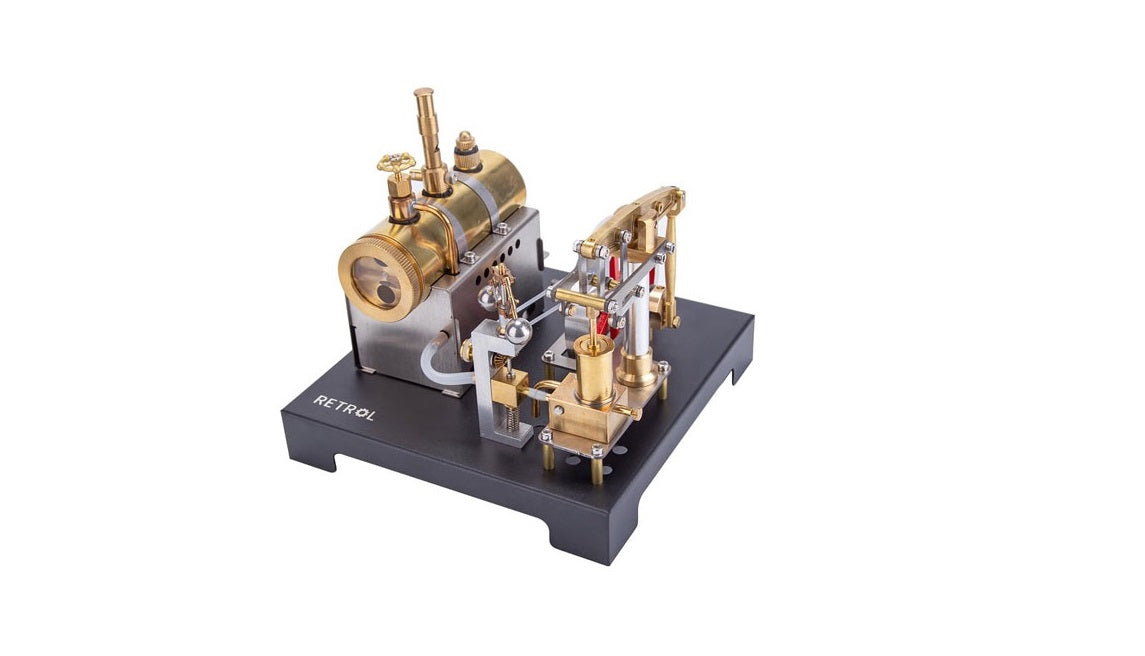

Parts included in the DIY steam engine model kit

• Base Plate

• Cylinder

• Piston

• Flywheel

• Boiler

• Governer

• Gaskets/O-rings

• Burner or Alcohol Lamp

• Steam Pipes or Tubes

• Crankshaft and Connecting Rod

• Screws, bolts, and nuts for assembly

Other Tools You May Need

• Screwdrivers (small Phillips and flathead)


• Allen keys/Hex wrenches


• Pliers or tweezers


• Mini file set (for smoothing edges)


• Lubricant or light machine oil (for moving parts)


• Distilled water (for the boiler to prevent mineral buildup)


• Protective gloves and goggles (for safety while heating)


Step-by-Step Assembly Tutorial



Step 1) First of all, you need to unpack the DIY model kit, and in the box, you will find a manual in which all the instructions about the model assembly will be given. You need to match all the parts included in the kit with the manual to check whether any parts are missing or not.

Step 2) Now, you will start by setting cylinder onto the engine stainless steel base plate. Also insert the piston into cylinder. However, as the piston ill move back or forth, so to ease the motion of the piston, its good to put oil, so it freely moves without any resistance.

Step 3) The very next setp will be to attach the crankshaft along with the piston rod. Then, you need to fix the flywheel into the end of crankshaft. Here, you eed to make sure that flywheel is rotating. You can test it by rotating it with hand. You can also put oil for ease.

Step 4) After this, place the boiler securely on the base. Use the provided brackets or clamps. Check that the boiler is stable and slightly raised so that the burner can sit just below it.

Step 5) Next, you need to connect the boiler’s output nozzle to the cylinder's steam inlet. Luckily, this pipe is transparent, so you can witness steam going to the cylinder. Moreover, you also need to connect the spore valve to control the flow manually.

Step 6) At this stage, you need to put the burner under the heating chamber of the boiler. This will serve as the source of heat for generating steam. Keep in mind that an alcohol lamp or solid fuel burner is mostly used in DIY kits. Refrain from igniting for now, but conduct thorough tests first.

Step 7) We have just assembled all the parts of the steam engine. However, before bringing steam into use, check the mechanical movement first. For instance, manually rotate the flywheel, and observe the piston move reciprocally within the cylinder. Moreover, check that the crankshaft and piston rod turning motion is smooth and isn’t jerky or stubborn.

Step 8) Now, you are ready to generate steam, so fill water in the boiler. To avoid spills, use a funnel. Moreover, avoid overly filling water and take note of the max fill line indicated in your kit manual.

Step 9) It is now time to fully run the steam and engine! So, with the use of a long match or lighter, carefully ignite the burner. Allow several minutes for the steam pressure to develop in the boiler. When ready, steam should push the piston, turn the flywheel, and run the engine.

Recommended Tips for Smooth and Safe Operation

• Always monitor the burner when the engine is on.

• During operation, you need to wear protective gloves while handling the boiler or burner.

• Before refilling or disassembling the engine, ensure that it has cooled down.

• Avoid filling excess water to prevent corrosion.

• Store in a cool, dry location.

5) Conclusion

The steam engine is an incredible invention which triggered the significance of the modern era industry and transportation. Grasping the concept of its construction and functionality enables one to appreciate the field of mechanical engineering and thermodynamics practically.

If you are up for breathing life into this historic marvel, a steam engine DIY kit from engineDIY might just be perfect for you! We have an array of well-made kits for both novice and seasoned steam enthusiasts, making the process of learning and building enjoyable. So, contact us today!



6) FAQs related to the Steam Engine



Q1: How does a steam engine function?

The steam engine uses both heat and motion to function. Once the boiler heats water, turning it into steam, pressure builds. This steam then pushes against a piston that rotates, providing movement which in turn powers the steam engine’s mechanical parts.



Q2: Are there any safety concerns for beginners building a DIY steam engine?

Most kits cater to novices, so safety concerns are minimal. Building your steam engine can be safe and fun if you follow the provided steps, don protective gear, and operate the burner with caution. Enjoying operating your steam engine is possible when you follow these simple guidelines.

Q3: What fuels are available for use in steam engine kits?

For steam engines, alcohol-based fuels and solid fuel tablets are the most popular, powering most DIY kits. Based on their wide availability and ease of utilisation, these fuels are a great choice, producing just the right amount of heat needed for safe steam generation.
