How does the Tesla Coil work

He also took advantage of it to investigate how electricity moves very quickly or when it sparks greatly. Even today, Tesla’s coils are being used in science demonstrations and in classrooms to display the wonder of electricity. While Tesla coils are not used as home power sources, they have significantly advanced the understanding of transmitting power wirelessly.

2) Basic Components of a Tesla Coil

• Power Source: It can be DC or AC electricity that provides Electrical Energy for the Tesla coil.
• Transformer: Next, an electric circuit component that increases the voltage of an electrical supply is referred to as a transformer.
• Capacitor: It collects and stores energy in an electric field.
• Spark Gap: After that, a small space between two conductive points, across which a spark can jump.
• Primary Coil: A thick coil with fewer turns to generate a magnetic field.
• Secondary Coil: It has more wire turns than the primary one.
• Top Load (Usually a Toroid): The last part is a donut-shaped section positioned on the uppermost part of the Tesla coil.

4) How Tesla Coils Work: Step-by-Step Guide

A Tesla coil generates high-frequency, high-voltage electricity using resonant circuits to transfer energy. In this section, we will discuss how a Tesla coil works. Each step contributes to the increasing energy build-up, which can be released as powerful sparks.

Step 1: Charging Capacitor

First, a power source supplies a low-voltage current. Then, a transformer increases this low voltage to a high voltage current. After that point, the capacitor receives a high-voltage current feed. The capacitor stores energy until it reaches full capacity. In the end, it discharges energy all at once.

Step 2: Spark Gap Fires

As soon as a certain voltage level is reached across the capacitor, it causes the spark gap to break down electrically, forming a spark. This spark is, in fact, closing the circuit so that the energy stored in the capacitor can discharge quickly into the primary coil.

Step 3: Creating a Magnetic Field

A high-frequency alternating current (AC) is generated and flows through the primary coil. In this phase, the capacitor releases energy in oscillations, and changing current creates a fluctuating magnetic field.

Step 4: Energy Transfers to the Secondary Coil

As a result of electromagnetic induction, the primary coil's fluctuating magnetic field induces a current in the secondary coil ( Faraday’s Law ). The secondary coil has more turns than the primary, so it creates current with high voltage.

Step 5: High-Voltage Sparks from the Top Load

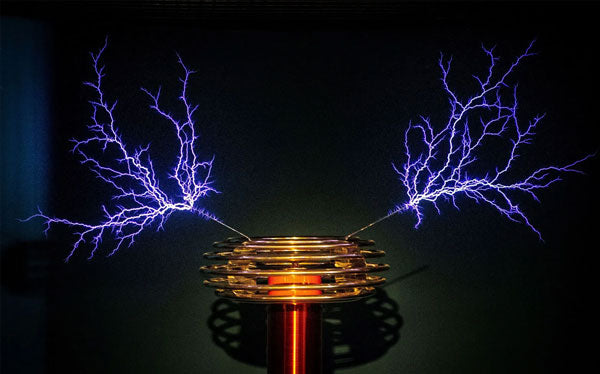

When the voltage increases in the secondary coil, it frequently reaches very high levels, like hundreds of thousands or even millions of volts. This high voltage will cause air to ionize and electricity to discharge in the form of sparks or arcs from the top load, which is usually a toroidal conductor, and is released into the atmosphere ( without any wire ).

This cycle occurs multiple times within a second, which in turn indicates to the formation of continuous and powerful electric arcs.

5) Practical Applications of Tesla Coils

Tesla coils go beyond their function as tools for science classes or sources of exciting voltage discharges. They serve many practical purposes across various fields. Now we will discuss the uses of Tesla coils:

• Wireless Power Transmission: Tesla coils are capable of transmitting electric current via the air without physical connections. This technology assists with wireless phone chargers, which do not require plugging in.

• Radio Technology: Now, these days, Tesla coils aided in radio’s formative years. They produced the high-frequency signals needed to transmit sound wirelessly.

• Medical Devices: In the past, doctors would use Tesla coil machines to send small electric charges into the bodies of their patients. It was thought that this practice would aid in the recovery process. These machines are not used this way in modern medicine, however.

• Entertainment and Education: Today, Tesla coils are a common fixture in schools and science museums. They produce large, loud sparks that serve to explain electricity in an entertaining way.

• Safety Testing: Lastly, engineers utilize Tesla coils to test the machines or components for voltage to determine how well they handle extremely high voltage. This ensures the equipment is safe for use.

Conclusion

A Tesla coil is an example of a smart device that shows you how electricity functions. It gets energy via basic components like coils and a spark gap. After these parts are set up, the device emits powerful electric sparks into the surroundings.

Even today, people use Tesla coils in science exhibitions, as well as educational and testing tools, to engage with the fascinating world of electricity. We offer Tesla coil kit at EngineDIY that allow you to examine electric currents firsthand.  If you have any questions, feel free to reach out to us here. We are more than glad to help you.
