RETROL ENGINE HM-01 7cc Engine 4-stroke Horizontal Hit and Miss Internal Combustion Engine Model
Introduction:

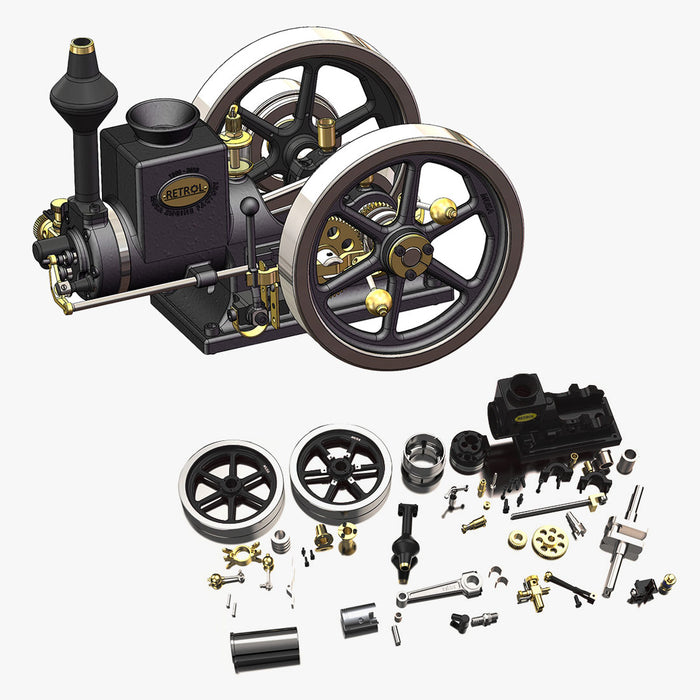

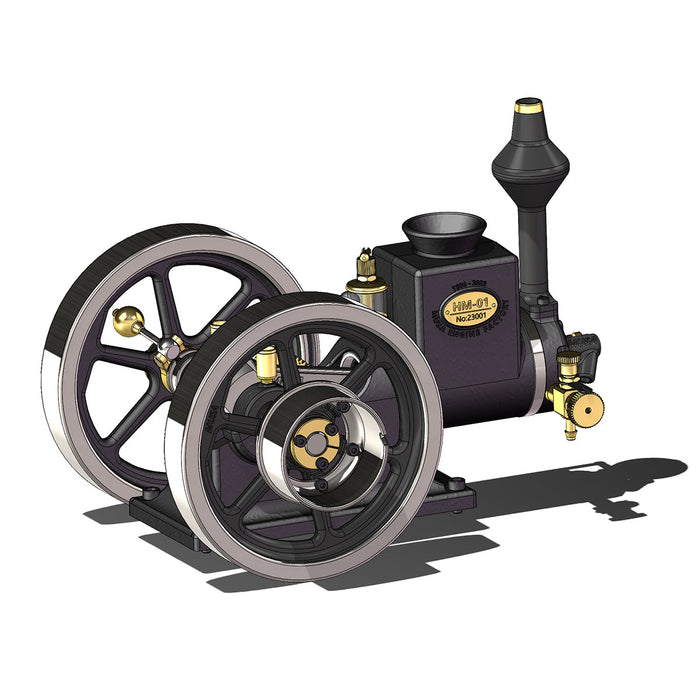

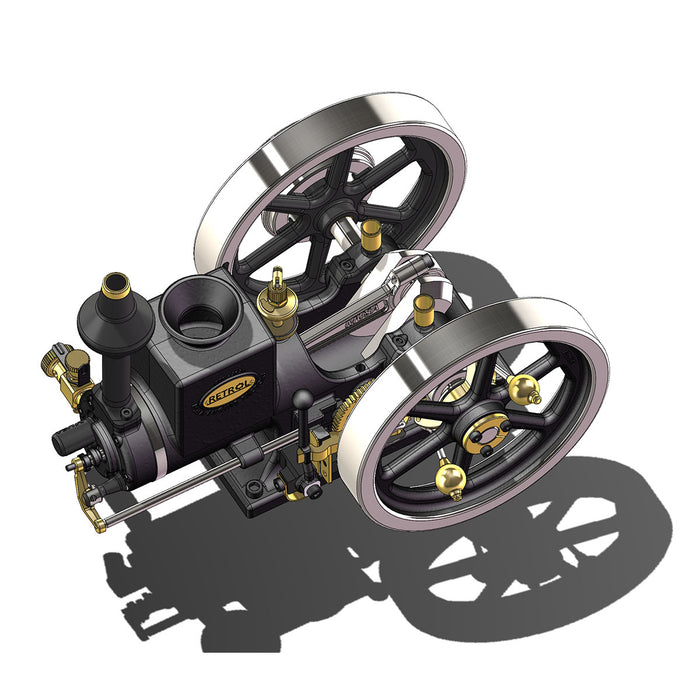

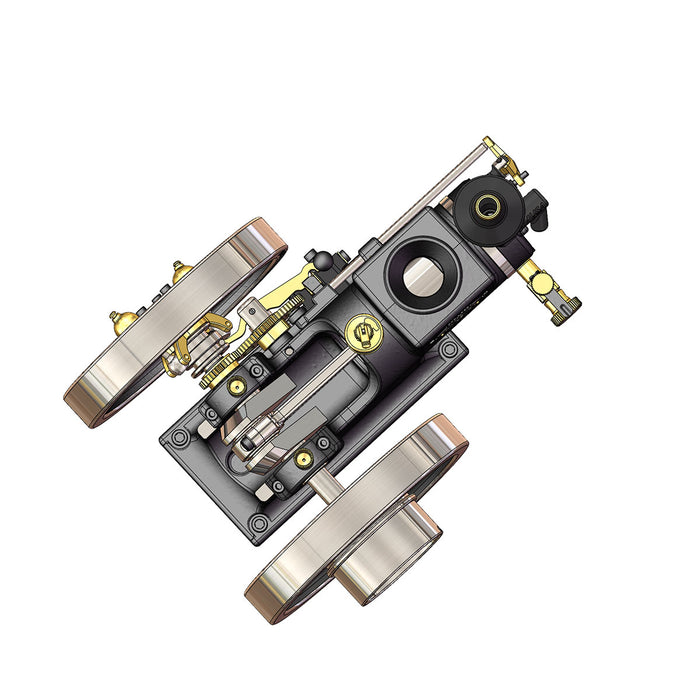

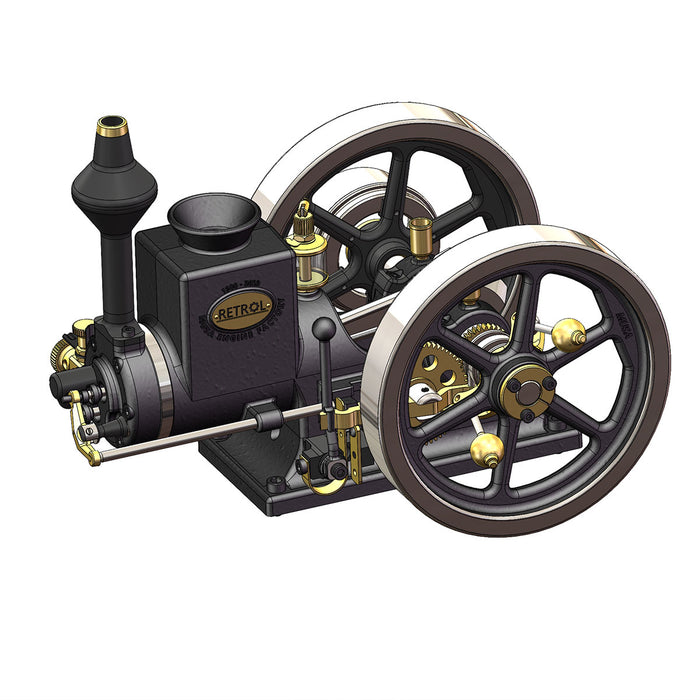

The RETROL team has spent 4 months designing and developing this new Hit & Miss engine model, designated as "HM-01". This hit and miss engine adopts carefully selected high-quality materials and exquisite craftsmanship to assure the engine's reliability and durability. The design features a transparent, adjustable flow main oil cup, a new carburettor and a reverberating exhaust pipe. The two large flywheels are well weighted, with a spring loaded ball and split wide face pulley, making the engine very practical for power output. A special design with a rarely seen "fast and slow gear change" allows the engine to be switched between super slow speed and high speed for power output. This makes the engine more playable and the player more operational. Product technology: the whole machine Ferrari red paint using electrophoresis surface treatment process, the main components (body main body, flywheel, connecting rod, etc.) are made of stainless steel 304 casting, all assembly surface using CNC finishing, high carbon steel hardened one-piece crankshaft. This makes it not only a playable engine model, but also a highly collectible mechanical artwork.
Features:
Exquisite Manufacturing Process: This Hit-and-Miss engine model is made of high quality metal materials and manufacturing process to ensure its quality and accuracy. Each component is precision machined and assembled, giving the whole model a very realistic look that will catch the eye. Beautifully Detailed Features: The model engine is beautifully designed and every detail has been carefully considered and manufactured. The engine surface is painted red to maintain the original look of the old agricultural machine, with realistic sound and movement, adding to the impressive vintage classic flavour. Easy to Display and Operate: the model engine is all set and ready to run, with an easy to understand operation and display. It can easily be displayed anywhere, for example on a desk or in a collection cabinet. You can easily control the operation of the engine by starting and stopping it manually. Real Principles: This model engine is also a great tool for education and learning. You can learn how the Hit-and-Miss engine works and its mechanics by watching it in action, igniting the fuel and producing unique sounds and movements when you start the engine. A Beautiful Gift: This model engine is perfect for mechanics enthusiasts, collectors and anyone interested in mechanical principles. It is not only a decorative piece but also a very valuable collector's item. It can also be an unforgettable gift for collectors of stationary model engines. Warm Reminder: The engine does not include accessories such as spark plugs, CDI ignition, fuel tank, fuel line, base and wooden box for the equipment, please purchase extra according to your needs.
Specifications: Material: Metal Colour: As Shown; Brand: RETROL ENGINE Type: HM-01 Shape: KIT or Pre-assembled Version Dimensions: approx. 17*13*13 cm Weight: approx. 1.8 KG Displacement: 7cc Cylinder: horizontal single cylinder Stroke: four-stroke Bore: 20mm Stroke: 22mm Cooling Method: Evaporative water-cooled Lubrication Method: mixed oil + oil cup lubrication Starting Method: manual starting Ignition Method: CDI igniter Spark plug type: imperial thread 1/4-32 ME-8 spark plug Type of fuel: petrol 92# and above Type of lubricant: four-stroke engine oil (oil to petrol at a 1:25 mix ratio)

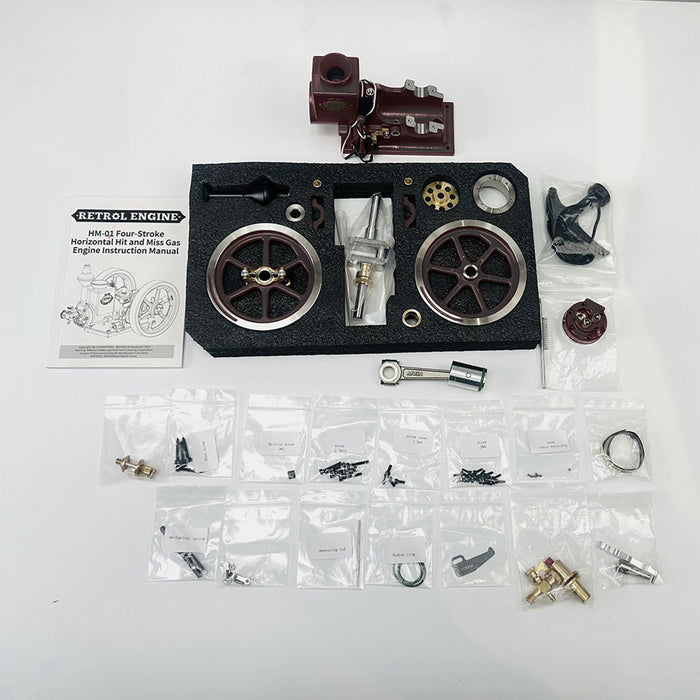

Packing List: 1* Engine 1* Instructions
Questions about Shipment Q1 : Do you ship worldwide?A1 : Yes, we can ship worldwide. Q2 : Where you ship goods from?A2 : Our warehouse is located in China, the goods will be shipped from China mainland.
Q3 : What is the shipping cost?A3 : For giving customer good shopping experience, we offer free international shipment.
Q4 : What is the shipping time?A4 : For expected delivery date, please check in this page: Expected Delivery TimeQ5 : How do I track my package?A5 :You can track your order on 17track.net . Or if you need a team members help check up please contact with our service team service@enginediy.com and we will be in touch with a status update.
Questions about Payment & OrderQ1 : What payment terms you can accept?A1 : For payment, we accept Paypal and Credit Card.
Q2 : My payment was declined, why? How to solve it ?A2 : If you made the purchase via Credit Card and failed, could you please contact with Stripe Support Team for solution? Or if the issue can be solved, please no worry, we accept Paypal payment as well.
Q3 : How do I cancel my order?A3 : For the order, if not shipped out yet, please contact with our Service Support Team service@enginediy.com , we will cancel your order and give you full refund.
Q4 : Is my information is securing using this site?A4 : Yes, Enginediy.com takes precautions to protect your personal information. When you submit sensitive information via the website, your information is protected both online and offline. Please don’t worry for this.
Q5 : What if my address is wrong?A5 : If the recipient's address was wrong, after the failed delivery, the parcel should be returned back to sender. After we receive the parcel, we will contact you for an updated address and arrange the new shipment.
Questions about Return & RefundsQ1 : What items are returnable?A1 : a)- We can accept returns or exchanges within the 30-day period. b)- All returned items must be in the original condition: unused, unwashed, and unworn. No exceptions. Q2 : How do I return a product?A2:Contact with Enginediy Service Team service@enginediy.com to confirm details to make sure the item is meet the return condition. After the agreement, Service Team will send the detailed return information, please offer return tracking number after return shipment.Q3 : What is you refund policy?A3 : Refunds are processed within 1-5 business days, after you received our confirmation on the cancellation.
Q4 :How will you refund me?A4 : The refund are applied to the original payment method.
I bought this motor for pleasure, I like it very much, everything fits beautifully, only a small snag on the clutch is such an aesthetic defect, but they wrote back to me that it does not affect the function. But from an aesthetic point of view, it's a pretty big mistake. Originally, I thought that the engine was supplied with an old type engine, but it came in a new one. The engine is not yet fully assembled and I will post a video when it is functional.
L
Lewis Ellis
Nice little engine
Nice little engine kit all the machine work was spot on went together well they have changed the crankshaft a little bit around the rod journal (for safety is my guess) after assembly and setting the ign point timing added Coleman fuel mixed 25-1 with 2-stroke oil and it started right up. I ran it about an hour and shut it down the next day it had lost enough compression so it wouldn’t start I also noticed that the spark was arcing from the point spring to the bottom of the engine base I added a little piece of shrink tube over the bent part of the contact and replaced the piston O-Ring with the extra one that was included and it cranks right up. I do wish it had a little more durable piston ring setup but overall a great little engine
S
Sam Wyley
It’s not the attention to detail like the jet engine
Just received this engine, on first glance, parts look amazing but instruction manual for assembly leaves a lot to be desired. No parts labeled and a lot left for interpretation, along with the fact that you will need a magnifying glass and careful and precise interpretation of the instructions. The parts are of high quality but assembly instructions leave a lot to be desired compared to the jet engine that was assembled prior too
J
John Lee (Brisbane, AU)
Retrol HM-01 Hit and Miss engine.
This was the first model engine I have built and I’m delighted to say everything went together beautifully. The components are well made and apart from removing a few burrs here and there they all assembled just perfectly. I picked up a few tips from the experts on YouTube along the way and enjoyed the challenge of getting the ignition timing just right. I have found lighter fuel (Shellite in Australia) mixed 40:1 with 2 stroke oil much cleaner burning than petrol and oil mixed at 25:1 as recommended in the instructions. Easier to start as well. I would like to see a battery box supplied with the ignition set and details of the batteries required. Also as others have mentioned, a longer HT lead to the spark plug is needed. Altogether though a beautiful well made engine that I really enjoyed building. Any suggestions what to build next?
H
Harald Hahn (Berlin, DE)
Retrol HM01
As my son was 10 years old and really wanted to build a machine himself, having watched and participated with his father for a long time, I bought the HM 01 kit and let him build the machine according to his own ideas without any help.
Here is the result.
