How Do You Start a Radial Engine? A Step-by-Step Guide With the Science Behind It

To start a radial engine safely, you deal with the oil risk before you ask the engine to fire. The process starts with checks for possible hydraulic lock, then moves through fuel, ignition, priming, starter engagement, and first idle.

That is why a radial startup looks so dramatic. The propeller moves through compression, the starter whine rises, the first uneven coughs break through, and smoke may roll from the exhaust before the engine smooths out.

This article walks through the startup logic behind full-size radial engines, then shows what carries over to fuel-powered model radials and what does not apply to an electric engine model or display-style kit.. You’ll see how oil movement, priming, starter force, first fire, and stable idle connect during startup.

Why Does a Radial Engine Need Special Startup Care?

A radial engine needs special startup care because oil can settle in the lower cylinders after shutdown.

The layout is the reason. A radial engine places its cylinders around one central crankcase, almost like spokes around a wheel. In a 5-cylinder or 9-cylinder radial, some cylinders point upward, some sit sideways, and some point downward. Gravity does the rest.

When the engine sits, oil can move into the lowest cylinders. That does not mean the engine is poorly designed. It just means the shape of the engine changes how you prepare it before startup.

Why The Startup Routine Exists

The startup routine is not there for drama, even if it looks dramatic from the outside. Hand-turning checks, fuel setup, ignition setup, priming, and starter use all have one job: help the engine reach first fire without forcing metal parts against trapped liquid.

Think of it this way: before the engine gets power, you want to know it can move freely.

What Is Hydraulic Lock, And Why Does It Matter Before Startup?

Hydraulic lock happens when oil or another liquid sits inside a cylinder and blocks normal piston movement. It matters before radial engine startup because air can compress, but liquid cannot.

A radial engine is strong, but it is not built to squeeze liquid. If a piston pushes into pooled oil, the force can damage rods, piston pins, pistons, crankcase parts, or cylinder assemblies because those parts are designed to compress air, not trapped oil.

How trapped liquid can damage the engine

Trapped liquid can damage the engine because liquid does not compress like a normal air-fuel charge. When a piston moves upward and hits pooled oil, the movement can stop suddenly or load internal parts far beyond their normal limits. Think of the piston as a moving plug inside a tube. During a normal compression stroke, it squeezes air and fuel vapor. That charge gets smaller as the piston moves upward. Oil is different. A pool of oil gives the piston almost nowhere to go.

Pre-start checks for clearing the risk

Pre-start checks help reveal signs of oil in the lower cylinders before starter force enters the system. The exact method depends on the engine design and approved maintenance procedure.

A normal check should show smooth movement and expected compression pulses. Sudden resistance is different. That is not something to force.

How do you start a radial engine step by step?

A radial engine startup follows a careful order: clear the lower-cylinder oil risk, prepare the engine for first fire, prime only as needed, bring in the starter, and confirm the engine settles safely.

The exact checklist depends on the aircraft, engine type, and approved maintenance guidance. The steps below explain the mechanical purpose behind the process, not a universal startup procedure.

Step 1: Clear The Cylinders And Check For Resistance

Before starter power is applied, the operator checks that the engine turns freely and looks for signs that oil may have settled in the lower cylinders.

The main things to watch for are:

• Smooth Movement: The propeller should move through its travel without an abnormal hard stop.
• Expected Compression Pulses: Normal compression can feel firm, but it should not feel like a sudden mechanical wall.
• No Unusual Resistance: Hard stopping, odd binding, or heavy resistance means the process should stop until the approved guidance is followed.

This step is not about “warming up” the engine. It is about making sure the engine can move without forcing pistons and rods against trapped liquid.

Step 2: Set Up Fuel, Air, And Ignition

Once the engine is clear to move, the next job is to prepare the conditions for a controlled first fire.

Fuel supply, mixture position, throttle position, magneto or ignition setup, and starter readiness all affect how cleanly the engine can catch.

• Mixture Position: A setting that is too rich or too lean can prevent a clean first fire.
• Throttle Position: Throttle controls how much air enters the intake during cranking, which affects how easily the first cylinders ignite.
• Ignition Readiness: Spark has to arrive at the right time, or the engine may cough without settling.

This is the quiet part of the startup, but it decides whether the first firing strokes have a chance to work.

Step 3: Prime Carefully

Priming adds fuel for the first start, especially when the engine is cold. Cold fuel does not vaporize as easily, so a cold radial may need extra help before the first firing strokes.

The balance matters:

• Too Little Priming: The mixture may stay too lean to ignite.
• Too Much Priming: Raw fuel can flood the intake or cylinders and create a risk similar to oil pooling.
• Right Amount: The correct amount depends on temperature, engine behavior, and the approved checklist.

Priming is not “add more fuel until it starts.” It is about giving the engine enough vapor-ready fuel to catch without creating a new problem.

Step 4: Bring In The Starter

Starter engagement brings the engine up to cranking speed so the cylinders can draw in mixture, compress it, and reach the first firing strokes.

Full-size radial engines have used different starter systems, including inertia starters, electric starters, and cartridge starters, depending on the engine design and era. No matter the system, the starter has to turn the engine fast enough for fuel, air, and spark to come together.

Cranking speed matters. If the engine turns too slowly, the cylinders may not draw in enough fresh mixture or build enough compression heat for a clean first fire. In that case, even correct fuel and spark may not be enough.

Step 5: Let First Fire Stabilize

First fire begins when some cylinders start burning the mixture and the engine starts to run on its own.

But we are not done just because it fires. We still watch oil pressure, throttle response, idle behavior, and roughness to see whether the engine is settling safely.

Key checks include:

• Oil Pressure: Oil pressure must show within the approved time after first fire. If it does not, the engine is shut down immediately.
• Throttle Response: The engine should respond in a controlled way, not surge or die unpredictably.
• Mixture And Idle Behavior: The engine should begin to smooth out as more cylinders fire evenly.
• Roughness: Some uneven firing can happen at first, but rough running that does not settle needs attention.

A stable idle means the engine is no longer just making noise. It is firing evenly, building temperature, showing oil pressure, and behaving in a controlled way.

Why Does A Radial Engine Cough, Smoke, Or Run Rough At Startup?

A radial engine may cough, smoke, or run rough at startup because fuel, spark, oil temperature, cylinder position, and cranking speed do not settle at the same instant.

A few uneven coughs can be normal. A hard stop, no oil pressure, or rough running that does not improve is different.

Fuel, spark, and cranking speed working together

Fuel, spark, and cranking speed must work together for a radial engine to start well. Fuel provides the mixture, spark lights it, and cranking speed moves enough air through the cylinders for combustion to begin.

That same intake-compression-combustion idea is easier to follow in an internal combustion engine model, where the basic cycle is smaller and more visible.

A weak start can happen when one part of that trio falls short.

• Too little fuel may leave the engine dry. Too much fuel may flood the cylinders or intake.
• Weak spark can make the first fire slow or uneven.
• Low cranking speed may fail to move enough mixture through the engine.

Normal startup drama versus warning signs

Normal radial startup behavior can include brief smoke, coughing, and uneven first firing. Warning signs are different. They include abnormal resistance, loud mechanical distress, no oil pressure after start, or rough running that does not settle.

• Brief Smoke: Some smoke can come from oil that settled in the engine and burns off after start.
• Uneven First Coughs: A few cylinders may fire before the whole engine stabilizes.
• Abnormal Hard Stop: A sudden stop during hand-turning is not normal and should not be forced.
• No Oil Pressure: If oil pressure does not show within the approved time, shut the engine down immediately.
• Persistent Rough Running: A rough start that does not improve needs attention, not guesswork.

What Can A Radial Engine Model Show You?

A radial engine model can make hidden movement visible: cylinder layout, crank motion, rod movement, and piston travel. Those moving parts help explain why the real engine needs careful startup preparation.

A real radial engine involves fuel, ignition, oil systems, hydraulic-lock risk, and propeller hazards. Much of its motion is also hidden inside metal cases, cylinders, and covers. A model removes some of that barrier. You can watch how the parts move together instead of only reading about what happens inside.

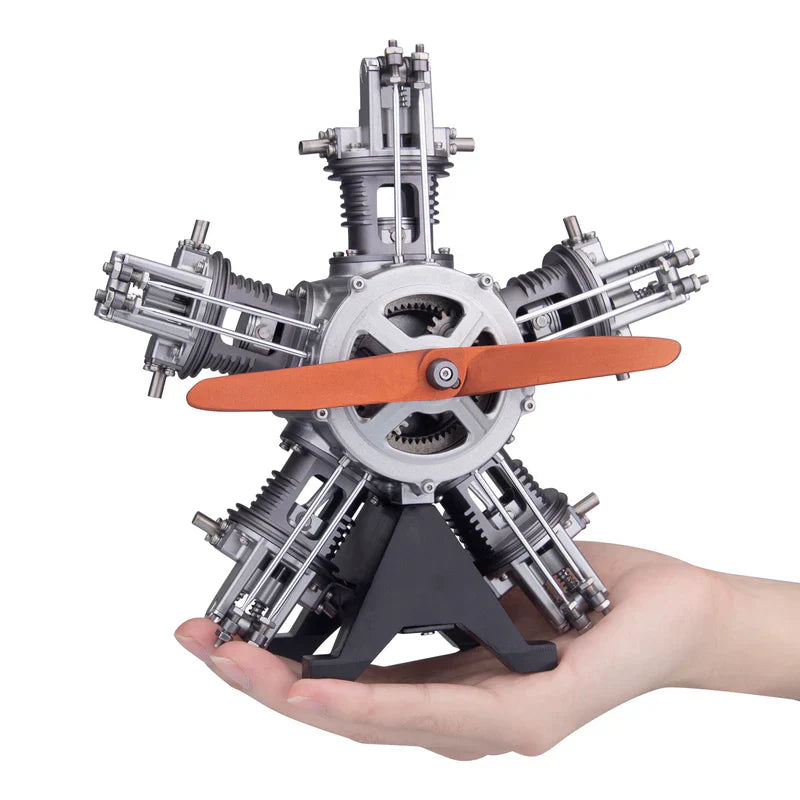

For example, the 5 Cylinder Radial Engine Model Kit is a full-metal, motor-driven radial model designed to show the running process visually. It does not burn fuel like a real aircraft engine, but it helps make the star-shaped layout, piston movement, and radial engine motion easier to understand.

Conclusion

A radial engine startup looks dramatic: the propeller moving through compression, the starter whine rising, the first rough coughs, and the smoke clearing as the engine settles. But the drama comes from real mechanical limits, not nostalgia alone.

A good start begins with caution, not force. If the engine meets abnormal resistance, trapped oil can turn into hydraulic lock and damage internal parts. After first fire, oil pressure, idle behavior, throttle response, and roughness show whether the engine is settling safely.

Caution comes before power in a radial engine startup. If the engine meets abnormal resistance, forcing it can turn trapped oil into hydraulic lock and damage internal parts. After first fire, we still watch oil pressure, idle behavior, throttle response, and roughness to see whether the engine is settling safely.

Once you understand that chain of cause and effect, the startup sequence feels less like a ritual. You can see why the engine smokes, why the first firing sounds uneven, and why a visible radial engine model can make the hidden motion easier to understand.

FAQs

1. Do All Radial Engines Need To Be Pulled Through Before Startup?

Not always in the same way. Many radial-engine procedures include a pre-start movement check because oil can settle in lower cylinders, but the correct method depends on the specific engine, aircraft, and approved checklist.

2. Is Smoke Normal When A Radial Engine Starts?

Some smoke can be normal because oil may settle inside the engine after shutdown and burn off during startup. Heavy smoke, no oil pressure, or rough running that does not settle is different and should be checked properly.

3. Why Do Radial Engines Sound Rough When They First Start?

A radial engine can sound rough at first because not every cylinder fires evenly right away. Fuel, spark, cranking speed, oil temperature, and cylinder position all need to settle into rhythm before the engine smooths out.

4. What Is The Difference Between A Radial Engine And A Rotary Engine?

A radial engine has fixed cylinders arranged around a central crankcase while the crankshaft turns. In an early rotary engine, the entire cylinder assembly rotated with the propeller. The names sound similar, but the mechanical layout is different.

5. Are Radial Engines Still Used Today?

Yes, but mostly in vintage aircraft, restorations, airshows, specialty aviation, and model-engine hobbies. Most modern aircraft use different engine types because they are easier to package, maintain, and operate at scale.

6. Can A Model Radial Engine Help You Understand A Real Radial Engine?

Yes, but only for layout and motion. A model radial engine can show the cylinder arrangement, crank movement, rods, and piston travel. It should not be treated as a guide for starting or operating a real aircraft engine.
