Inside the EngineDIY Xenon Plasma Sphere: Brainiac75 Tests the Plasma Donut

A glowing ring of plasma floating inside a glass sphere looks almost too unusual to be real. Unlike the branching filaments of a traditional plasma globe, a toroidal plasma display can create a bright, dynamic ring that appears to hover and move inside the vessel.

Science and engineering creator Brainiac75 recently put the 200mm Xenon Plasma Sphere to the test. Rather than focusing only on its visual effects, he investigated two more interesting questions: Is the sphere really filled with xenon, and how does the plasma donut actually form?

His test combined spectroscopy, electromagnetic principles, and an unconventional experiment with a traditional plasma globe, offering a closer look at the physics behind the display.

Seeing the Plasma Donut in Action

Once the controls were properly adjusted, the EngineDIY plasma sphere produced a clearly visible toroidal discharge—a bright ring of plasma suspended inside the glass vessel.

The effect was strong enough to remain visible under studio lighting, although a darker environment revealed much more detail.

Using the three control dials, Brainiac75 was able to move between different discharge patterns. The plasma shifted from relatively clean toroidal rings to pearl-like chains, emerald-green aurora structures, and concentrated glowing nodes resembling small balls of plasma.

The ring itself was not always stationary. As the xenon inside the sphere heated, convection caused the plasma toroid to move and bounce vertically. Small adjustments to the controls could substantially change its shape and stability.

This constantly changing behavior gives the toroidal plasma display a very different appearance from the radial streamers typically associated with conventional plasma globes.

Is There Really Xenon Inside? Brainiac75 Tests the Spectrum

The tested EngineDIY sphere is designed around xenon gas, but Brain did not simply rely on the product description. He tested the light emitted by the plasma to see whether the gas could be identified independently.

A fiber-optic cable carried light from the plasma to a spectrometer while keeping sensitive electronic equipment away from the high-frequency system.

The captured spectrum was then compared with the known emission lines of xenon.

The results showed a strong match.

Clear peaks in the infrared region closely corresponded to strong xenon spectral lines. When the visible spectrum was examined more closely, the major detected peaks again aligned with xenon. Even two features in the near-ultraviolet region could be matched to known xenon emissions.

The test also showed no significant ultraviolet emission below 400 nm.

Taken together, these spectral measurements provide strong independent evidence that the tested sphere does indeed contain xenon. The distinctive emerald-green discharge observed during operation is also consistent with the behavior of xenon under low-pressure conditions.

Why Does Xenon Produce Such a Complex Glow?

Xenon is a noble gas with an atomic number of 54, meaning a neutral xenon atom contains 54 electrons.

When energy is transferred into the gas, some of these electrons can move into excited energy states. As they return to lower-energy states, energy is released as photons at specific wavelengths.

These wavelengths create the characteristic emission spectrum of xenon.

Because xenon has a relatively complex electronic structure, many different transitions are possible. Instead of producing one simple color, the discharge can contain numerous spectral lines that combine into the green, blue, violet, and other tones visible inside the sphere.

This is also why spectroscopy provides much stronger evidence for the identity of the gas than color alone. What appears to the eye as a complex glow can be separated into individual wavelengths and compared with the known spectral fingerprint of xenon.

How Does the Plasma Donut Form?

The circular coil beneath the glass sphere is essential to producing the toroidal plasma.

200mm Xenon Plasma Sphere operates with an approximately 10MHz high-frequency drive. When alternating current flows through the circular coil, it generates a rapidly changing magnetic field.

That changing magnetic field, in turn, induces an electric field.

The process can be simplified as:

Circular Coil → High-Frequency Magnetic Field → Induced Electric Field → Xenon Ionization → Toroidal Plasma

Inside the low-pressure xenon, electrons gain energy from the induced electric field. Their collisions with xenon atoms cause further excitation and ionization, creating plasma.

As excited xenon atoms return to lower-energy states, they emit light, making the electrical activity inside the sphere visible.

Because the electromagnetic field is generated by a circular coil, the discharge can organize along a ring-shaped path. Brain described the phenomenon as being similar to a visible swirling eddy current inside the sphere.

The result is the distinctive plasma donut: a luminous toroidal discharge shaped by the interaction between the electromagnetic field and the ionized xenon gas.

Can a Traditional Plasma Globe Produce the Same Toroid?

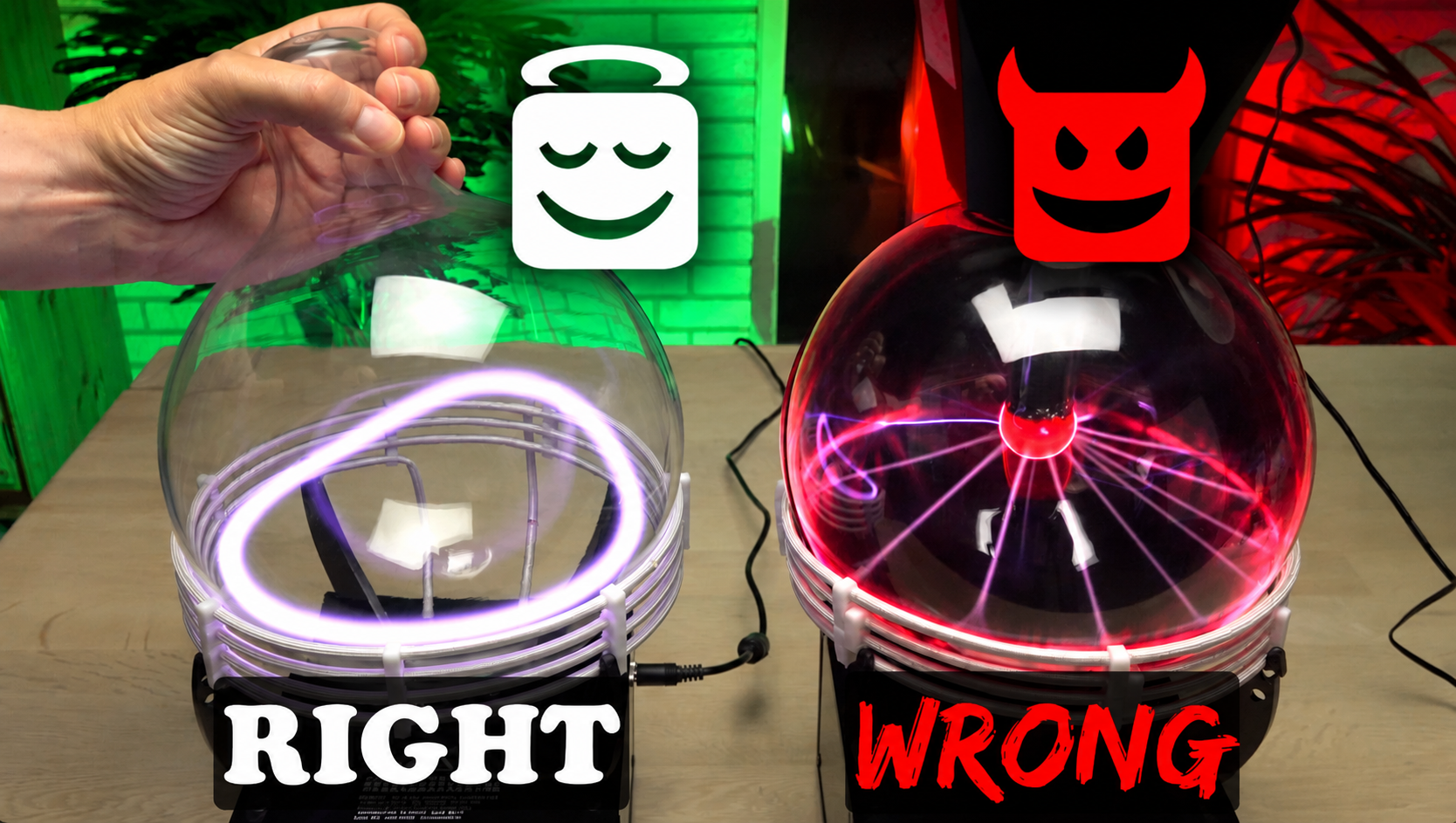

To investigate whether the toroidal effect was simply the result of higher power, Brain introduced an old conventional plasma globe into the experiment.

Initially, bringing the traditional globe near the toroidal coil produced little visible change. He then moved it closer and eventually positioned the globe directly inside the circular coil.

The response became much more dramatic.

The familiar radial plasma filaments inside the conventional globe became increasingly energetic. Adjusting the controls changed both the number of streamers and their length, creating dense spoke-like discharge patterns.

But despite the much stronger excitation, a stable plasma toroid never formed.

The conventional globe used in the experiment was originally powered by roughly 10W, while the toroidal system operates at substantially higher power. Even so, additional excitation alone was not enough to reproduce the plasma donut.

The experiment suggests that toroidal plasma formation depends on more than power. Gas composition, gas pressure, vessel geometry, electromagnetic field distribution, and excitation method can all affect the final discharge structure.

The traditional globe also heated rapidly during the experiment. This test pushed it well beyond its intended operating conditions and should be viewed as an experimental demonstration rather than a normal use case.

EngineDIY Toroidal Plasma Display vs. Traditional Plasma Globe

Both devices create visible plasma by energizing gas, but the resulting behavior is quite different.

The comparison shows why a toroidal plasma display is not simply a brighter version of a conventional plasma globe. The underlying excitation method and resulting plasma behavior are fundamentally different.

What Brainiac75 Found About the 200mm Version

Brain tested the larger 200mm Xenon Plasma Sphere.

According to the current specifications, the 200mm version uses an approximately 10MHz high-frequency drive, 0–70W adjustable output, and a 48V 4A power supply.

One physical difference became especially noticeable during the comparison experiment: the vessel used for the toroidal display was considerably thicker and heavier than the glass of the old plasma globe.

Brain identified the shape as essentially that of a large Florence flask. This type of vessel uses heat-resistant glass, which is relevant because higher-power plasma operation can generate substantial heat.

The test also revealed an acoustic characteristic of the system. Under certain settings and orientations, the sphere produced a noticeable high-frequency whistle. Changing the orientation of the vessel and fine-tuning the controls could reduce the sound significantly.

These observations highlight an important aspect of plasma displays: their behavior is not purely visual. Electromagnetic excitation, gas pressure, temperature, convection, vessel geometry, and acoustic effects can all interact while the system is operating.

What This Test Tells Us About the Plasma Donut

Brain's experiment goes beyond showing that Xenon Plasma Sphere can create an unusual visual effect.

The spectroscopy provides independent evidence that xenon is present in the tested sphere. The experiment with a conventional plasma globe demonstrates that simply increasing excitation does not automatically create a toroidal discharge. And the circular high-frequency coil provides the electromagnetic conditions needed for the characteristic ring-shaped plasma to develop.

Together, these observations help explain what initially looks like a science-fiction effect.

The plasma donut is the visible result of several physical processes occurring at the same time: electromagnetic induction energizes the gas, xenon atoms become excited and ionized, atomic transitions produce the characteristic light, and thermal convection keeps the plasma in motion.

That combination is what makes a toroidal plasma display particularly interesting. It does more than create a glowing ring—it makes otherwise invisible electromagnetic and plasma behavior visible inside a glass sphere.

Watch Brain's Full Plasma Experiment

Brainiac75's full test shows the plasma toroid developing and changing in real time, along with the xenon spectrum analysis and the experiment using a traditional plasma globe.

Seeing the discharge move is particularly useful because still images cannot fully capture how sensitive the plasma is to control adjustments, temperature, and gas convection.

For anyone interested in plasma physics, electromagnetic induction, gas discharge, or the science behind toroidal plasma displays, the experiment provides a practical look at how these principles come together in the EngineDIY Xenon Plasma Sphere.
