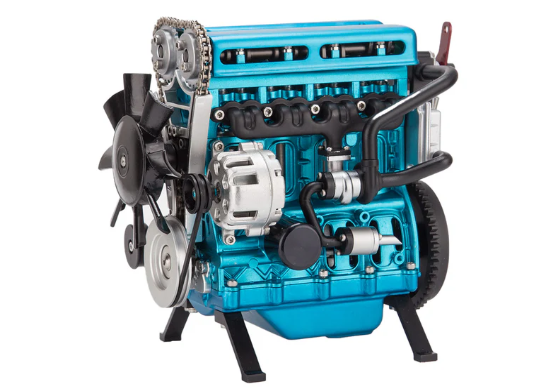

Teching 4 Cylinder DOHC Model Explained: How Modern Valve Timing Really Works

A 4-cylinder DOHC engine represents the most common modern passenger-car engine layout, combining compact size with precise airflow control.

In real vehicles, this configuration balances:

• Fuel efficiency

• Mechanical simplicity

• Reliable power delivery

DOHC—dual overhead camshaft—means two camshafts sit above the cylinder head:

• One camshaft controls intake valves

• The other controls exhaust valves

The Teching model reflects this architecture faithfully. You can see how the camshafts rotate independently while remaining synchronized with the crankshaft. This helps explain why DOHC engines breathe more efficiently than simpler designs.

How Does Valve Timing Actually Work in a DOHC Engine?

Valve timing works by locking the camshafts and crankshaft into a fixed mechanical relationship, ensuring valves open and close at precise piston positions.

Here’s what the model makes obvious the moment you turn it:

• As the crankshaft rotates, pistons move up and down

• Timing gears transfer that rotation to the camshafts

• Cam lobes press valves open at specific crank angles

• Valve springs close them instantly once the lobe passes

In a running engine, all of this happens too fast to see. On the Teching model, motion is slow and exposed, so cause and effect become obvious instead of theoretical.

Why Is DOHC Valve Timing More Efficient Than Simpler Designs?

DOHC valve timing is more efficient because intake and exhaust events no longer have to compromise each other.

With a single camshaft design, engineers must balance:

• Intake opening timing

• Exhaust closing timing

With DOHC:

• Intake timing can prioritize air volume

• Exhaust timing can prioritize gas evacuation

The Teching model visually demonstrates this advantage. You can watch intake valves stay open longer without affecting exhaust timing, which explains why DOHC engines:

• Rev higher

• Breathe better

• Produce smoother power curves

This is not marketing theory—you can literally watch airflow control happen.

Which Internal Components Control Engine Behavior the Most?

The model highlights how a few core parts define engine character.

Cylinder Block and Pistons

The straight-four layout places four pistons in a single line. Each piston connects to the crankshaft through a connecting rod. This arrangement converts vertical piston motion into rotational energy. Watching them reach top dead center and bottom dead center clarifies firing order and mechanical rhythm instantly.

Crankshaft

The crankshaft acts as the engine’s rotating backbone. Offset journals allow pistons to move independently while maintaining smooth rotation. The Teching model makes crank offset geometry easy to understand, especially how it affects balance and smoothness.

Dual Overhead Camshafts

Two camshafts sit above the valves. Each camshaft features lobes that press against valve components, controlling lift and duration. This is where airflow tuning really happens—and seeing those lobes in motion makes the concept click fast.

Valves and Springs

Valves open against spring pressure and close when the cam rotates away. Springs store energy and maintain timing accuracy across cycles. Observing how quickly valves snap shut explains why spring quality matters so much in real engines.

Why Did DOHC Become the Standard in Modern Engines?

DOHC became the standard because modern engines demand precision, not just power. As emissions rules tightened and performance expectations rose, engineers needed:

• Better airflow control

• Cleaner combustion

• More tuning flexibility

DOHC layouts delivered all three. The Teching model shows this evolution clearly by removing the engine block’s “mystery factor.” Once you see how independent camshafts work, the industry shift makes complete sense.

Learning Through a Working 4 Cylinder Engine Model Kit

Hands-on learning changes how mechanical concepts are absorbed. A working 4 cylinder engine model kit allows learners to interact with engine motion rather than memorize diagrams.

When you:

• Turn the crankshaft

• Watch valves respond

• Track timing relationships

By turning shafts, observing valve movement, and tracking timing relationships, learners build intuition. They begin to predict what will happen next, which is a key step toward real understanding.

This is why working 4-cylinder engine model kits are widely used in:

• Engineering education

• Automotive training

• Mechanical demonstration labs

Why Assembly Matters More Than People Expect?

Building the Teching 4 Cylinder DOHC model is part of its educational value. Components must align correctly. Timing relationships must be respected.

If parts are installed incorrectly, motion becomes restricted or uneven. This mirrors real engine assembly, where small errors can lead to major issues.

Metal construction gives the model realistic weight and feedback. Gears mesh with intention. Shafts rotate smoothly when aligned properly. This process teaches patience, precision, and mechanical awareness.

How Does This Model Connect to Real Automotive Engineering?

Electronics may control modern engines, but mechanics still do the work. Before sensors, ECUs, and software intervene:

• Pistons compress air

• Valves open mechanically

• Cam profiles define airflow

The Teching model focuses on this foundation. It shows what every modern engine still depends on, regardless of how advanced its electronics become.

Who Benefits Most From This Model?

The Teching 4 Cylinder DOHC model serves a wide audience:

• Engineering students developing mechanical intuition

• Automotive learners seeking deeper understanding

• Educators explaining engine fundamentals visually

• Collectors who appreciate working mechanical systems

Its value comes from clarity rather than spectacle.

Why the Teching 4 Cylinder DOHC Model Still Matters?

Automotive technology continues to evolve, yet mechanical fundamentals remain constant. Timing still governs success. Balance still influences durability. Airflow still shapes combustion quality.

The Teching 4 Cylinder DOHC model remains relevant because it focuses on these enduring principles. It teaches how engines work at their core, not just how they are managed electronically.

For anyone serious about understanding modern engines beyond surface explanations, this model delivers that understanding in a way few tools can.

Final Thoughts

Access to accurate mechanical models has reshaped how people learn about engines. At EngineDIY, we provide buildable engine systems that reflect real mechanical relationships rather than simplified displays.

By assembling and observing motion directly, learners bridge the gap between theory and physical understanding. This approach proves especially effective for valve-driven systems such as DOHC engines.

FAQs

1. How is a DOHC engine different from a SOHC engine in practice?

A DOHC engine uses separate camshafts for intake and exhaust valves, allowing more precise airflow control. Compared to SOHC designs, DOHC engines support higher RPM, smoother power delivery, and more flexible valve timing.

2. Is the Teching 4-cylinder DOHC model mechanically accurate?

The model follows real DOHC architecture, including camshaft placement, valve actuation, and crank-to-cam synchronization. While it doesn’t simulate combustion or electronics, the mechanical timing relationships are true to real engines.

3. Can this model really help you understand valve timing?

Yes. By slowing the motion and exposing the timing system, the model makes valve timing visible instead of abstract. You can directly observe when valves open and close relative to piston position, which is impossible to see in a running car engine.
