Ultimate FAQ on Gas Toyan V8 Engine: Everything You Need to Know
Are you thrilled about engine models? But still perplexed about the Toyan V8? Perhaps you have seen some videos. But you still have some very important questions. You wish to understand its workings. Moreover, you would like to know what fuel it requires.
More crucially, how about safety indoors? Don’t worry, you are not the only one. In this brief FAQ, you will find all the responses. Keep reading to learn everything before starting your Toyan engine FS-V800.

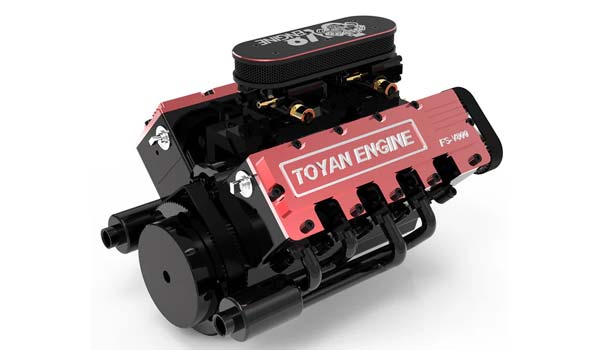

1) What is the Toyan FS-V800 V8 engine?
Toyan V8 Engine is classified as a small model engine. It is a stylized version of a car engine, while being smaller in size. In fact, it is made in a 1:8 scale, which means it is eight times smaller than a real V8 engine. Furthermore, this small engine functions with actual gasoline, similar to your vehicle at home.
When you start the engine, it makes authentic engine sounds and feels like it is actually a motor. Moreover, you can observe the components in action, such as the pistons and belts. More importantly, it isn’t only for demonstration purposes. It is functional, to a degree.
2) What Kind of Fuel Should I Use?
This particular engine requires gasoline as fuel. Then, similar to certain vehicles, you could use 92# or 95# gasoline. After that, it is essential to blend the gasoline with 2-stroke engine oil. After this, be sure to observe the exact blending proportions.
3) Will I Receive a Fully Assembled Engine?
No, you won’t get a ready-to-use engine. Instead, you will be provided with a DIY kit containing many small parts. Now, you need to open the box and confirm that all the required parts are present. After that, you will need to follow a sequential approach to construct the engine.
4) How Much Gas Does the Toyan Engine V8 Use?
The Toyan V8 engine won’t burn much gas. It is only around 20-30ml for a few minutes of use. Then, if you run it longer, just add more fuel. Therefore, it's a small engine, so it’s fuel-friendly.
5) I’m New to Engines; Can I Still Build It?
Absolutely, you can assemble it. Please stay calm and take your time. Moving forward, ensure you proceed by following the directions step by step. In the meantime, it may be beneficial to check out some videos.
6) What tools should I prepare?
First, make sure you have hex keys and screwdrivers. Next, make sure you have a small wrench and some tweezers handy, too. Every once in a while, a bit of sandpaper for polishing is handy too. That is all: just a handful of simple tools.
7) How Powerful Is the Engine Once It Runs?
The Toyan V8 engine generates approximately 4.3 horsepower. Next, it can go as high as 12,500 RPM. It may be small, but it sure runs strong.
8) Do I need to buy a starter system separately?
Absolutely, you do. To start, a starter motor isn't included in the kit. In addition, you will have to purchase a battery, a femur. Thus, ensure those parts are available before beginning.
9) Can I Install This Engine into My RC Car or Boat?
Of course, you can. Although your RC model needs to be sufficiently large. In addition, it must be able to support the size and weight of the engine. It will work well if all parts fit seamlessly.
10) How Heavy Is the Toyan V8 Gas Engine?
It is approximately 2.05 kg. This does not include the starter or cooling kit. It does get a bit heavier once those are added. For that reason, it will properly pair with almost all larger Toyan V8 RC cars.
11) What Are the Basic Parameters of the TOYAN V8 Engine FS-V800?
-
Model: FS-V800
-
Form: KIT Version
-
Scale: 1/10
-
Cylinder: V-type 8 Cylinder
-
Stroke: 4 Stroke engine
-
Displacement: 28cc (3.5cc* 8)
-
Bore: 16.67mm
-
Stroke: 17.00mm
-
Angle: 90°
-
RPM: 1800-12500rpm
-
Power: 4.35ps@11200rpm
-
Cooling Mode: Water cooling
-
Starting Mode: Electric (including starting motor)
-
Ignition Mode: 2 4-in-1(or 8-in-1) stabilized ignition modules
-
Type of Electric Plug: F-type 4-stroke electric plug
-
Lubrication Mode: Splash Lubrication (add a small amount of grease on the cam)
-
Fuel Type: 20-25% nitro fuel
-
Starting Voltage: 7.4V lithium battery (not included)
-
Product Dimensions: 12.34 x 3.2 x 12.73cm
-
Product Weight: 2050g
-
Package Dimensions: 17 x 15 x 4cm
-
Package Weight: 2950g
12) How does the TOYAN V8 compare to a single-cylinder engine?
The V8 engine offers a more refined performance and lifelike sound. On the other hand, a single-cylinder engine, while more straightforward, lacks power and excitement.
13) Why aren't scale one-piece headers included too? Is Toyan planning to release bolt-on upgrades?
Currently, Toyan works on the core engine functionalities. Though in the future, additional realism and power may be included through incremental upgrades.
14) Why does the Toyan V8 require mixed fuel?
The Toyan V8 employs a small 4-stroke engine configuration, but it does not have a dedicated oil circulation system like larger engines do. Because of this, it utilizes pre-mixed fuel, a mixture of gasoline and 2-stroke oil, to oil the internal components.
This combination guarantees operational efficiency and minimizes wear during high-speed cycles.
15) Why does oil discharge from the bottom of the engine?
This typically occurs due to excess oil in the fuel mixture, frequent poor sealing, or poor sealing. Furthermore, during high-speed operations, excess oil that hasn't combusted may escape.
16) Why doesn't the Toyan V8 Engine model have an Independent Splash Lubrication System?
Since it is a small-scale engine, a straightforward two-stroke-style mixed fuel system is utilized. The addition of a fully integrated oil pump would increase the cost, size, and complexity of the engine.
17) How much will this engine cost me?
Approximately $1,000 will be the cost of the basic engine kit. The cost will increase to at least $1,500 if accessories are included or if the assembled version is preferred.
18) Where Can You Buy the TOYAN Model Engine V8?
Indeed, you may obtain it from reputable retailers such as EngineDIY. They sell kits, components, and additional items.
19) Do I need to worry about overheating?
Not quite. Just ensure that the water cooling system is properly fitted. Also, provide time to cool between runs.
20) Is it safe to run the engine inside my room?
No, it’s not safe. Rather, you should use it outside or in well-ventilated areas.
Conclusion
Ultimately, you now understand the details of the Toyan V8 engine. Additionally, it offers an enjoyable, loud, and captivating experience. Yet, you need to exercise caution during usage. Furthermore, make sure to limit operating time.
Regardless, it is excellent for educational and display purposes. If you are in the market looking to get one, EngineDIY offers a reliable Toyan mini engine kit to scale engine models.
