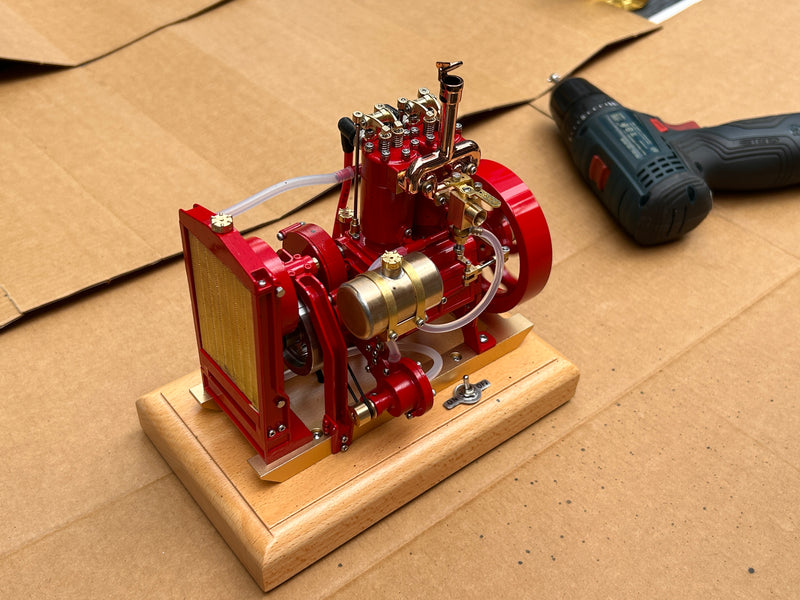

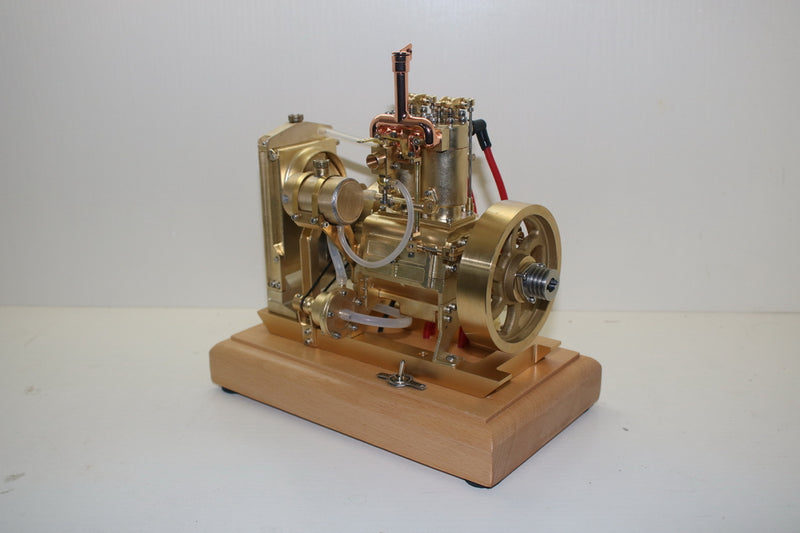

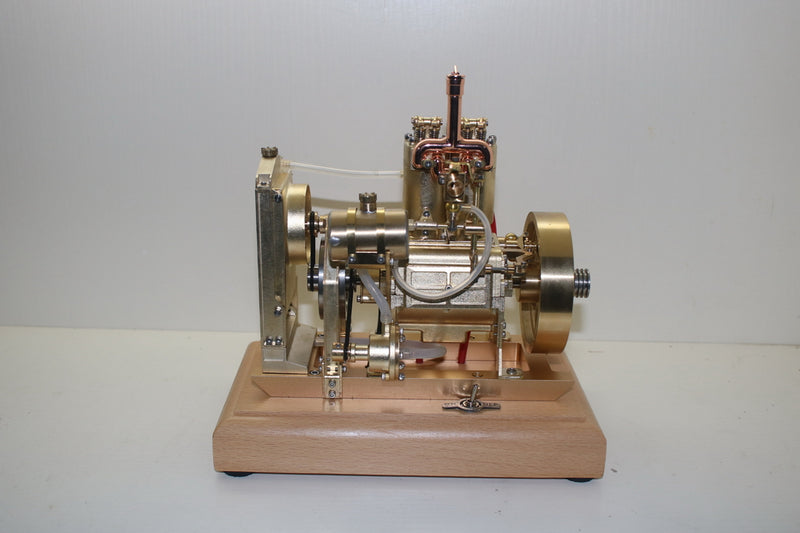

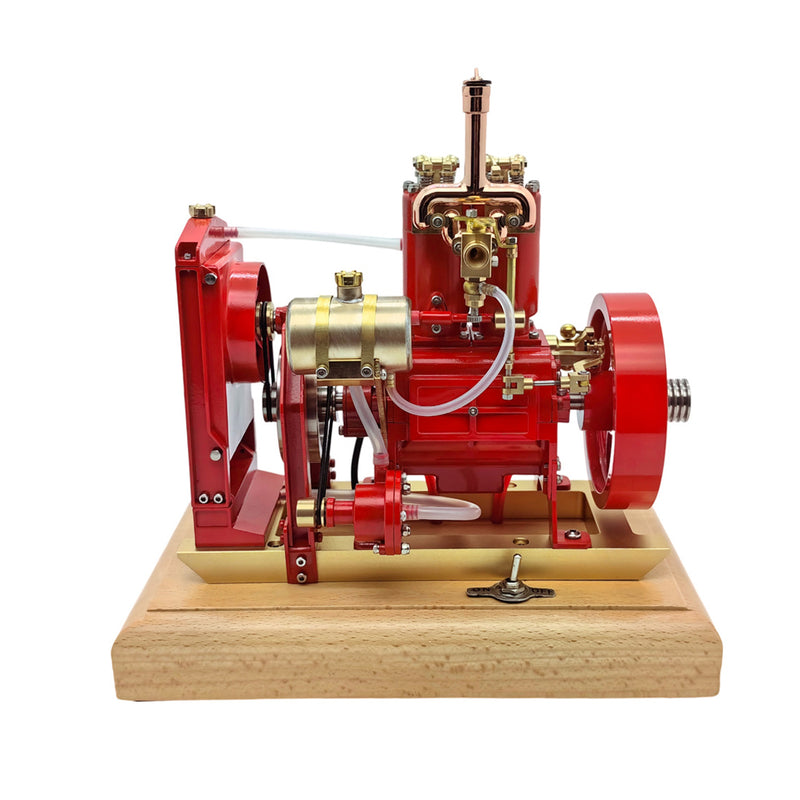

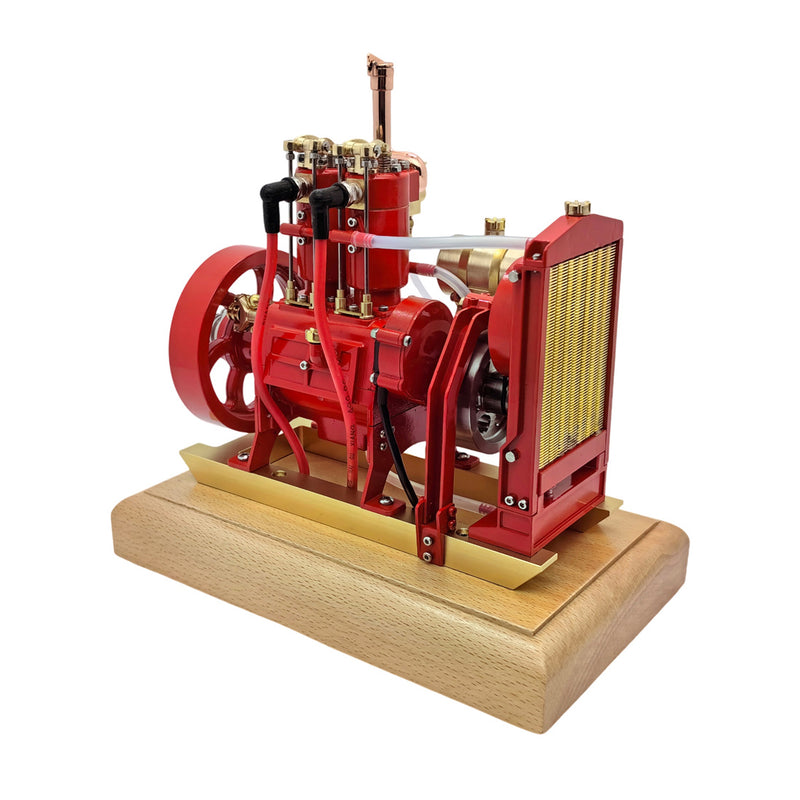

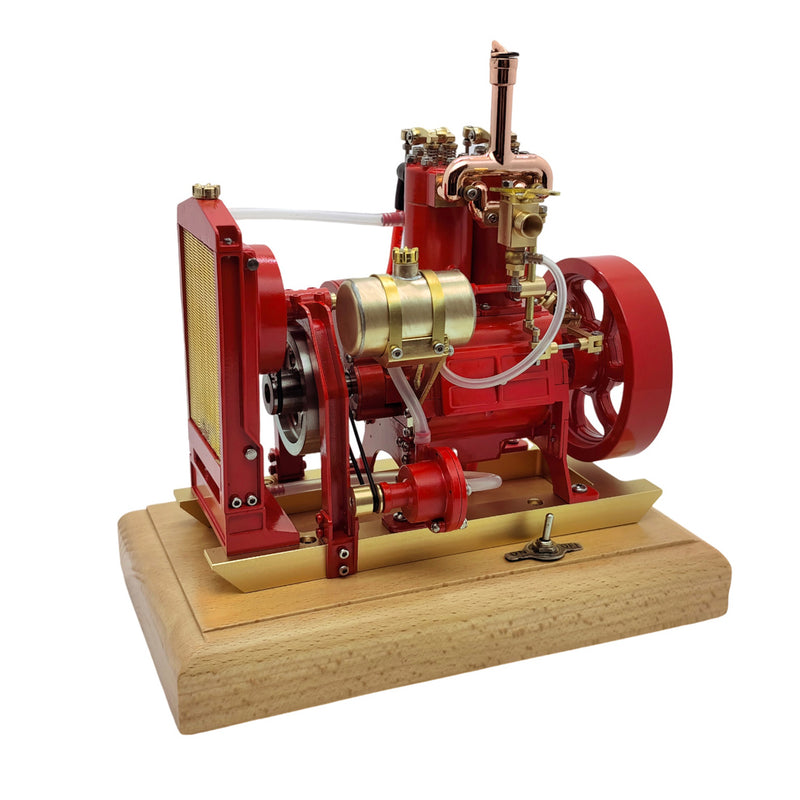

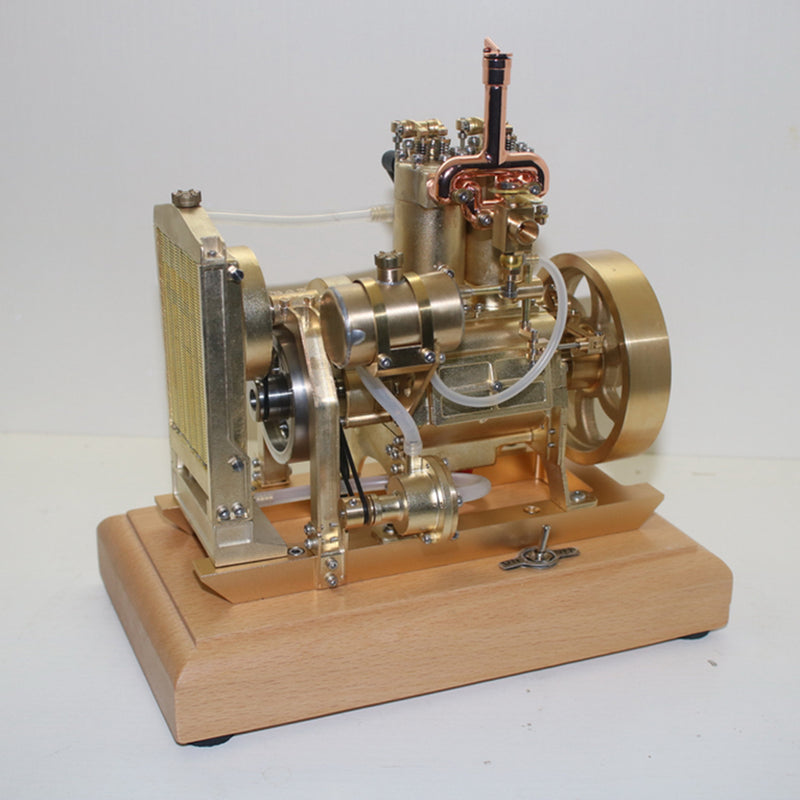

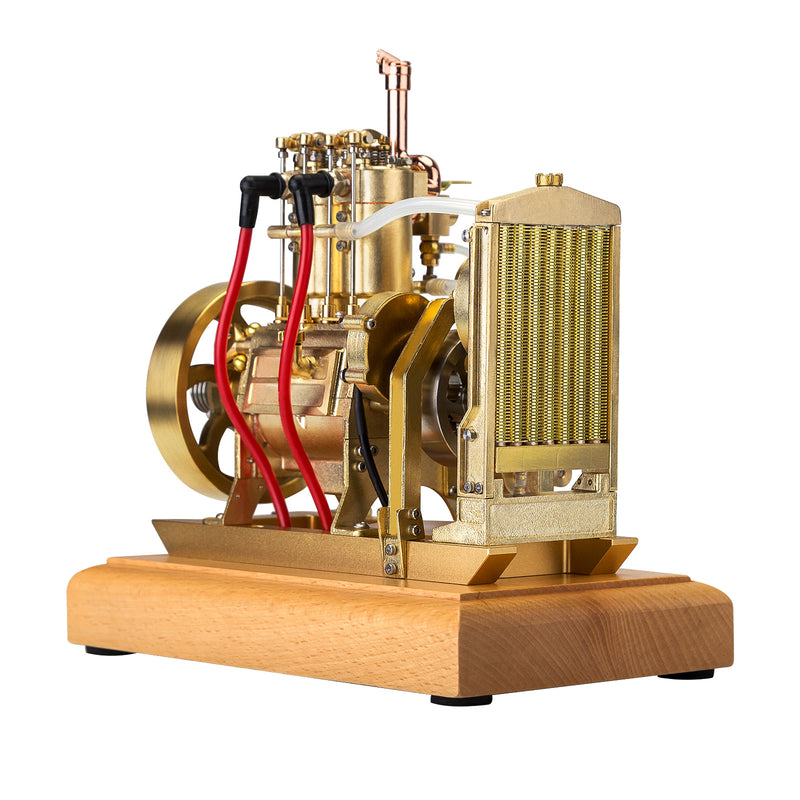

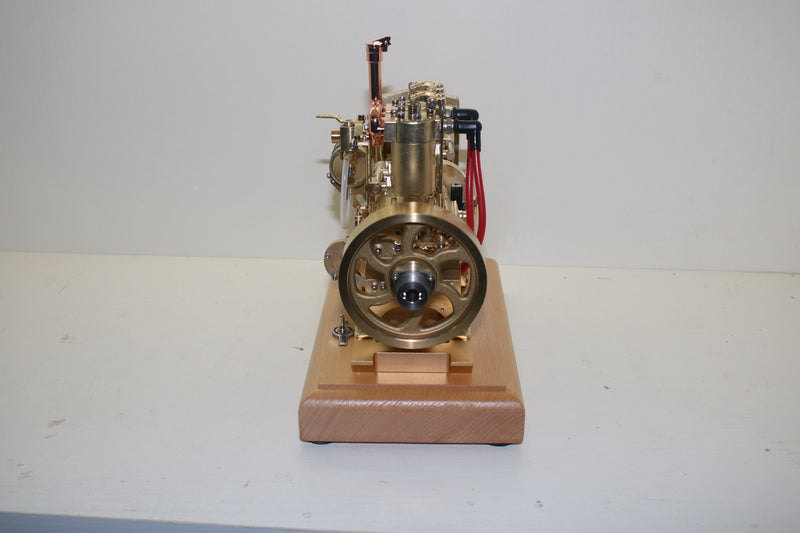

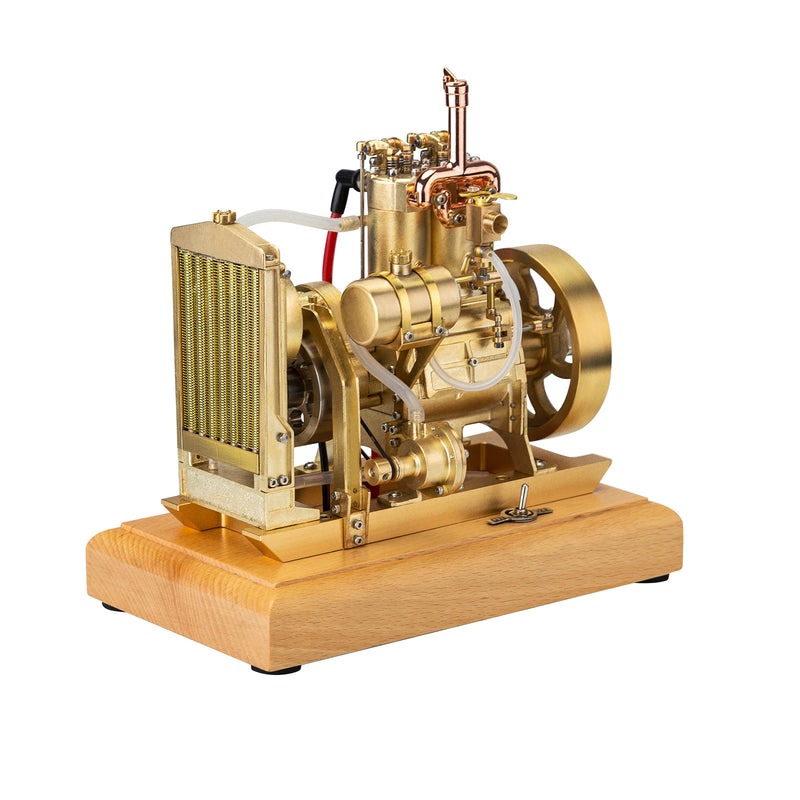

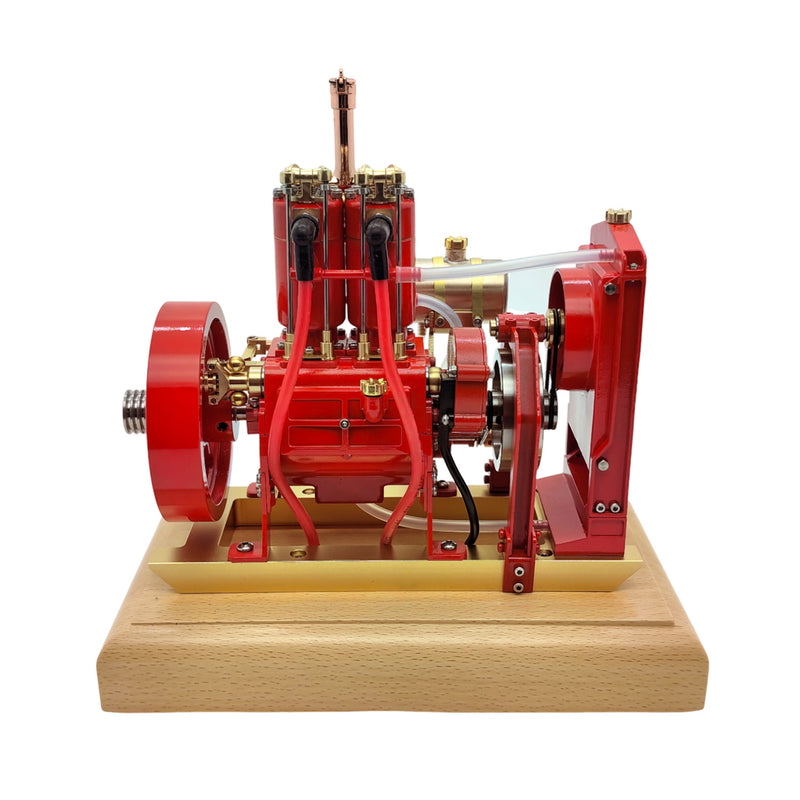

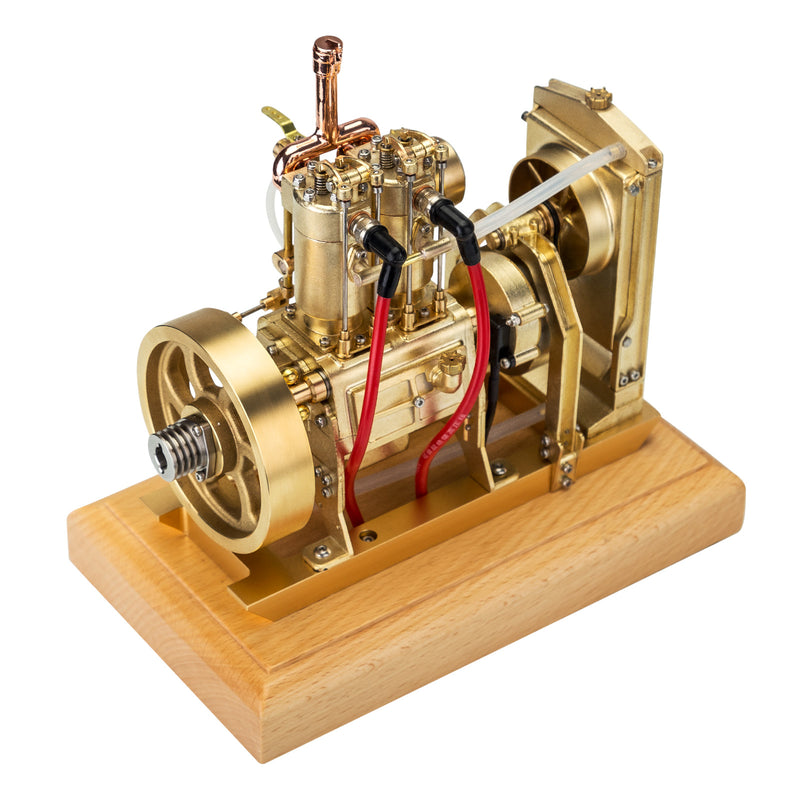

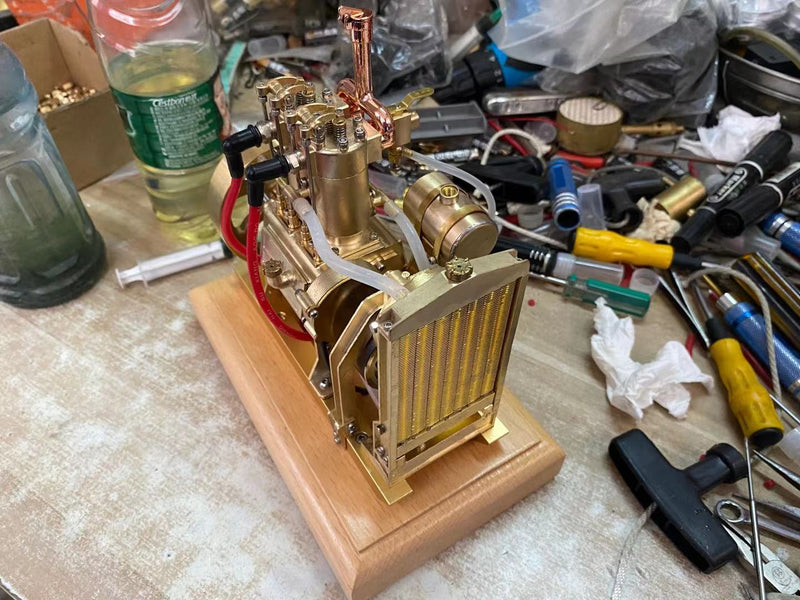

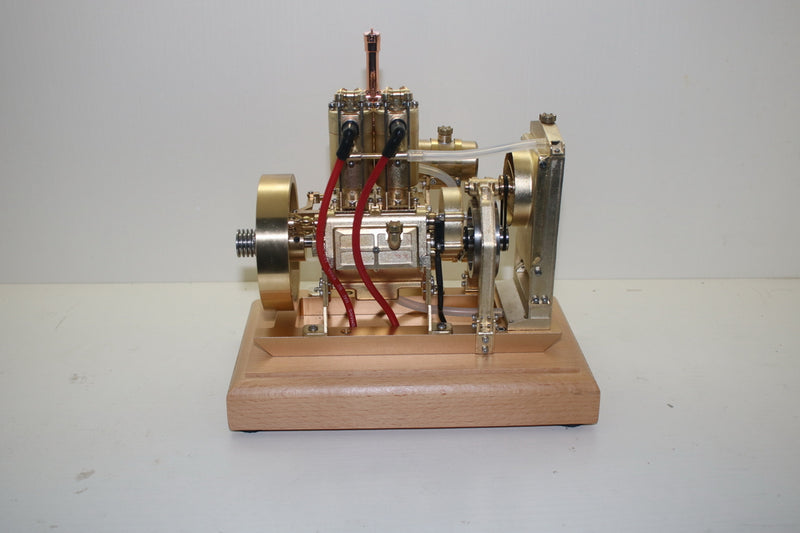

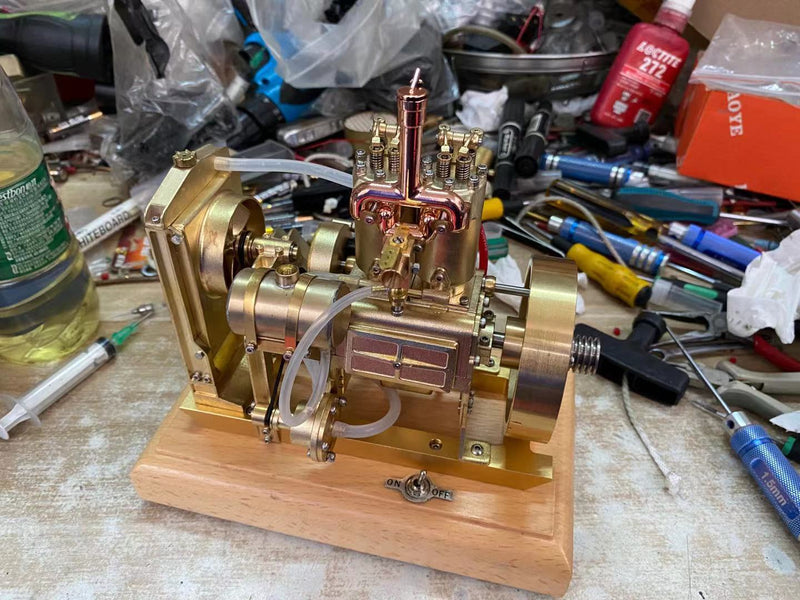

H74 Holt Tractor Engine 5CC 2-cylinder 4 Stroke Water Cooled Gasoline Engine ICE Model Internal Combustion Engine

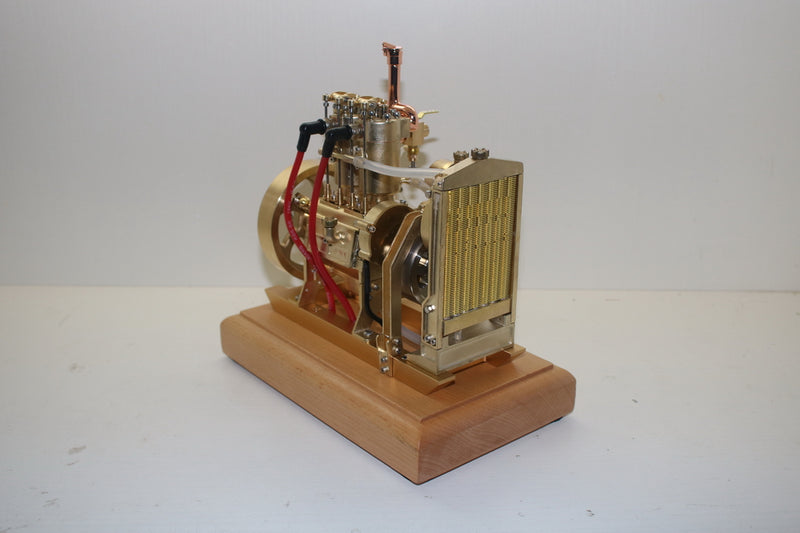

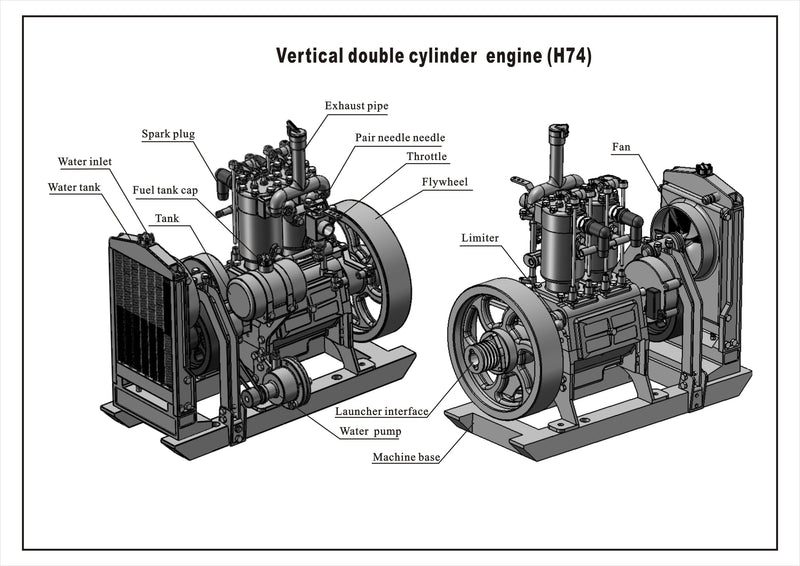

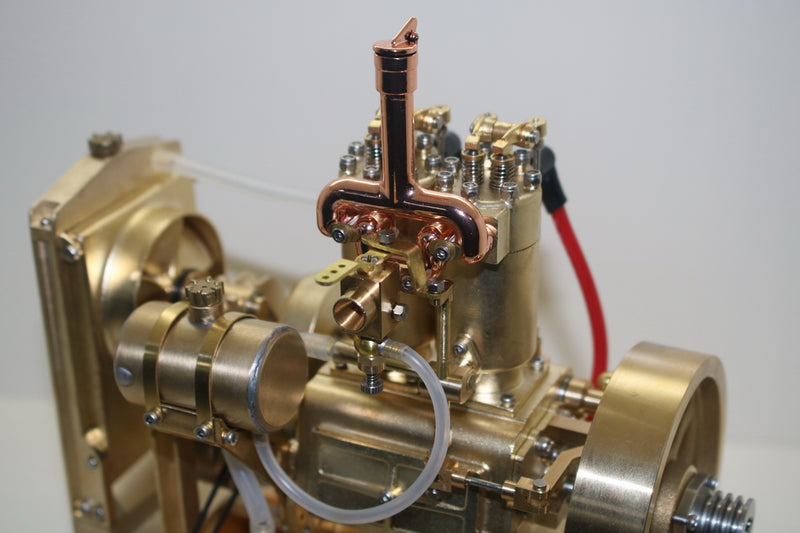

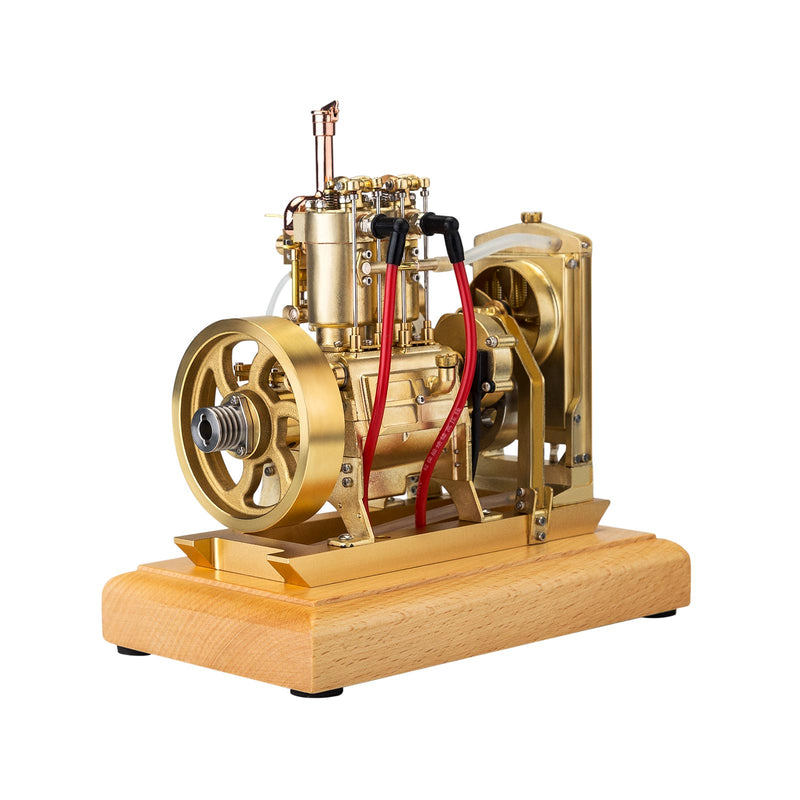

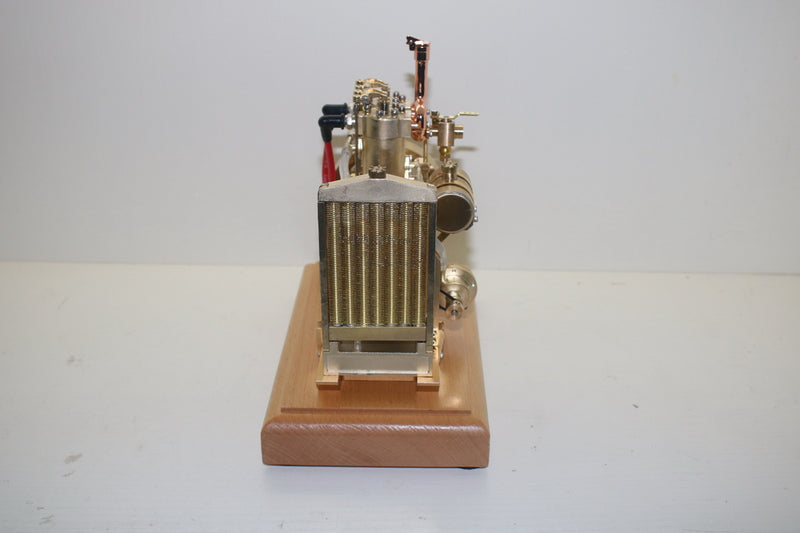

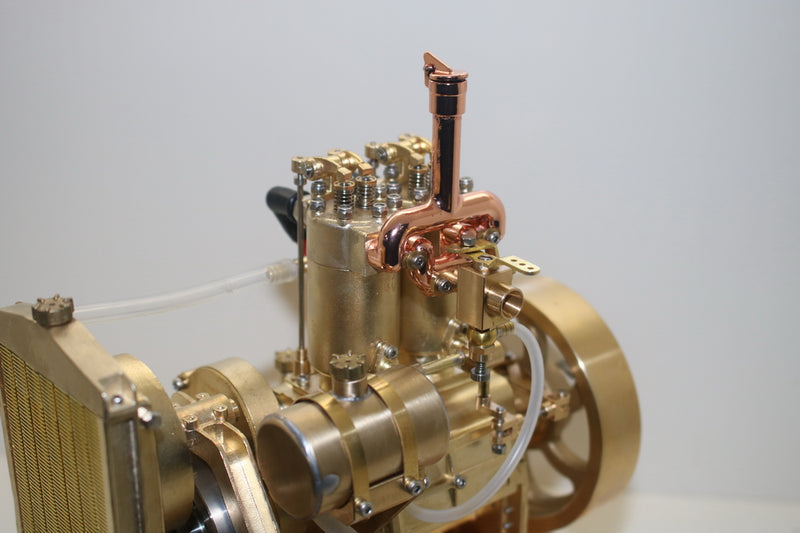

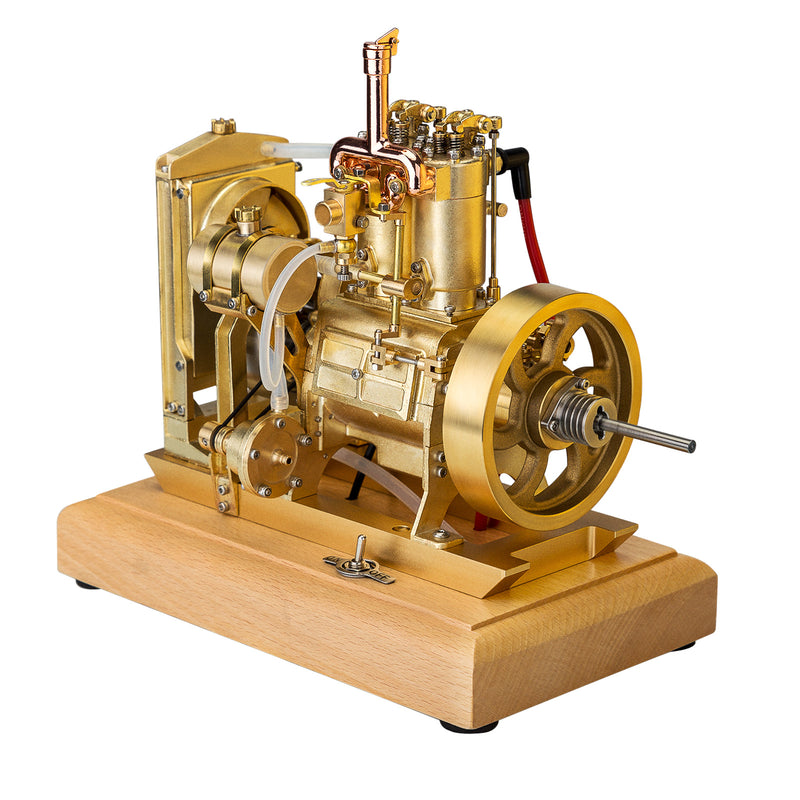

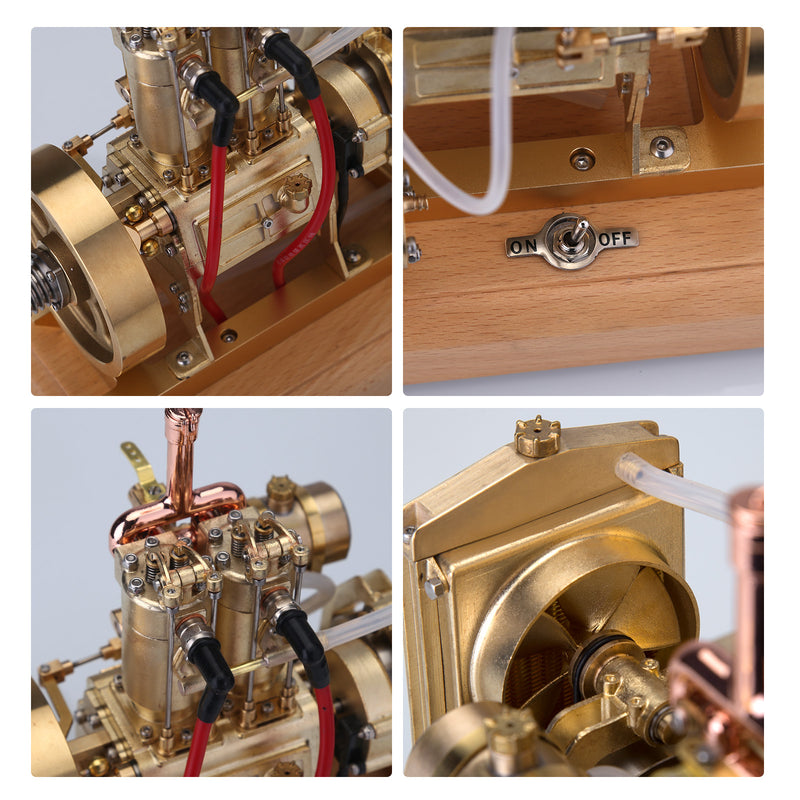

Vintage Engine: 1. This is a vertical dual-cylinder gasoline engine with vintage outlook and mechanical speed governor, and it allows engine to stabilized a set of speed. 2. The engine adopts water circulation cooled, with radiator tank, water pump and fan. Equipped with ignition system and powered by 4.5V (3 x AA battery). 3. This is a perfect mechanical craft which is made from brass and stainless steel. The product is assembled on the wooden base and ready to run. Adding fuel to work, its good performance will amazed you a lot.

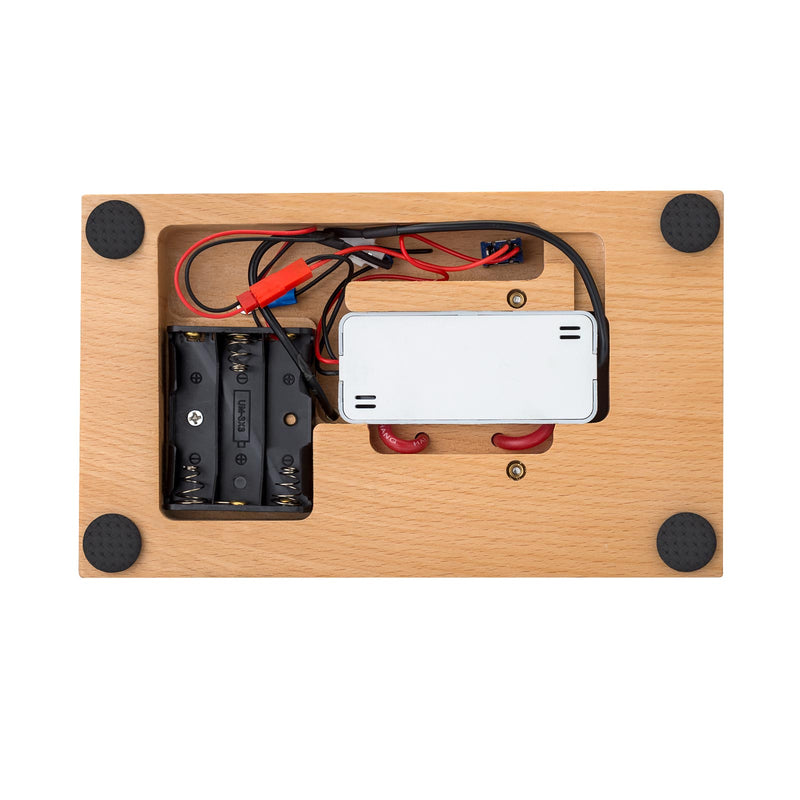

Starting Step: 1. Check the engine wiring under the wooden base, then connect the oil tank and oil tube and install 3 AA battery (4.5V). 2. Fill the oil tank with 95 gasoline. After filling, rotate the flywheel clockwise on the right side of the engine (power switch surface) for several turns, which can make the mixed fuel fully enter the cylinder and ensure that there is no air in the fuel pipe. 3. Turn on the power switch then rotate the flywheel clockwise quickly to start the engine on its right.
Note: 1. You need to add some water to the water tank after the engine works, for the water will enter the cylinder to fill the space after work and the water path in the cylinder will return to the water tank through the pipe. 2. If the ignition device is normal and the cylinder compression is normal and the machine cannot start normally, it is likely that the carburetor needle needs to be adjusted. 3. After tighten the needle of carburetor, loosen it for 1/4 turn and start the flywheel to make the mixture ratio of the gasoline and air reach the the normal working mixture ratio. 4. Turn off the power when the machine stop working. 5. This is an ideal gift for machinery and model fans and it will spent the spare time with you. It can serve as a collection or a gift for Christmas and birthday.

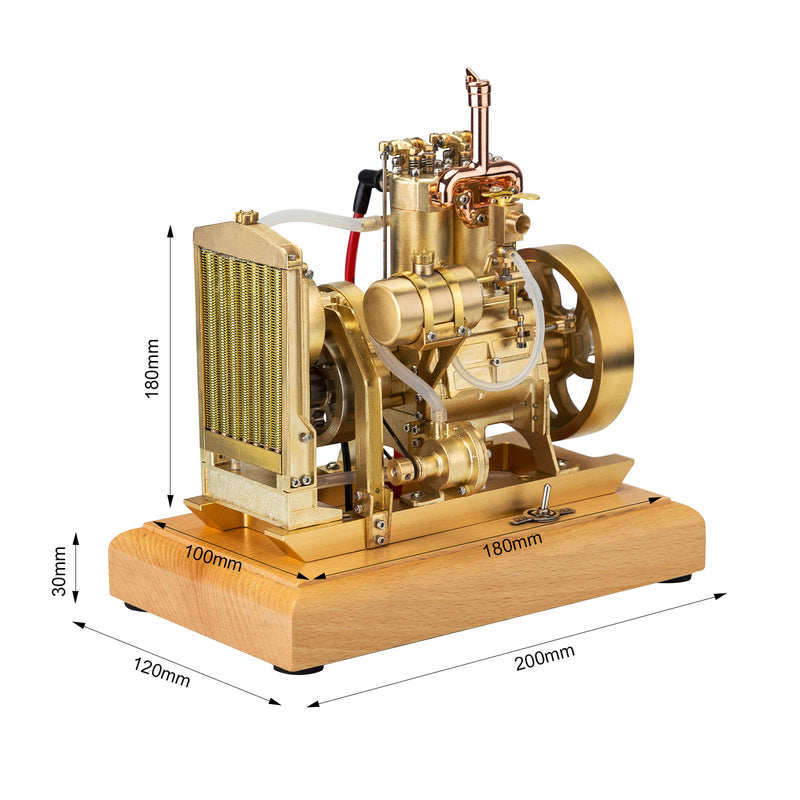

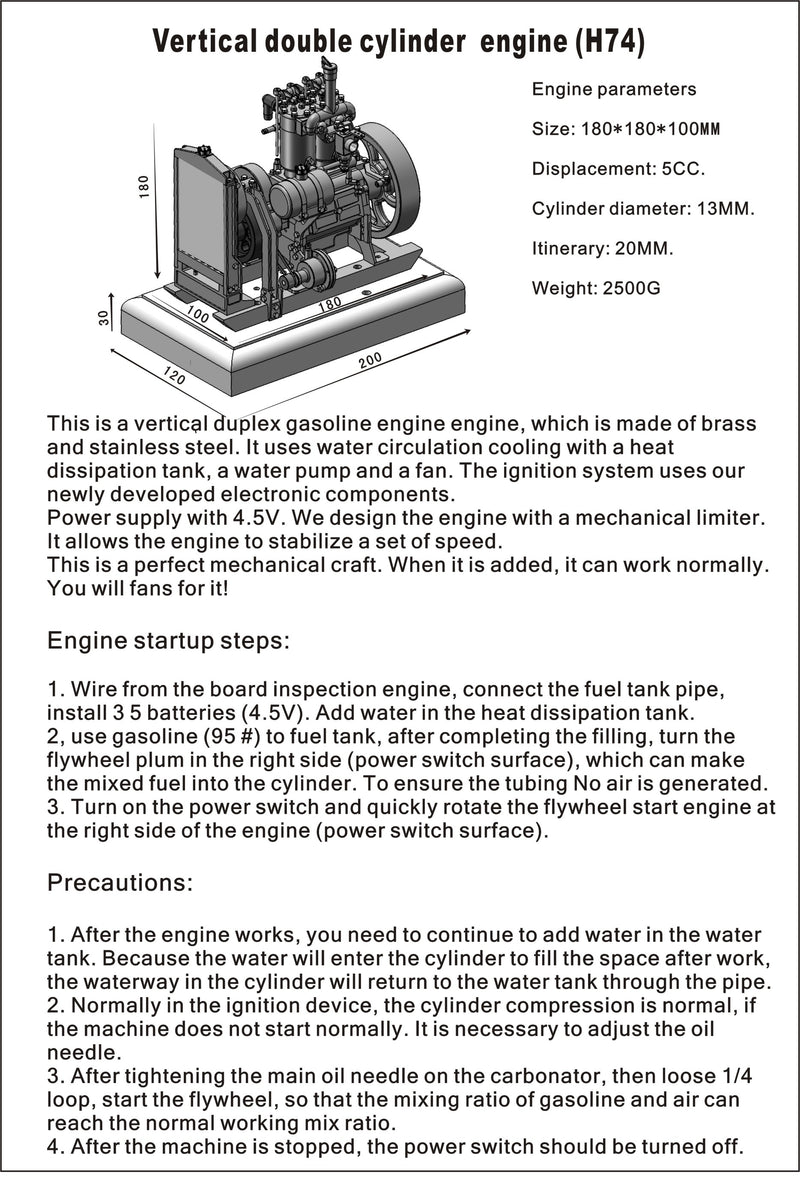

Specifications: .Material: Brass/Stainless Steel/Wood .Art. No.: H74 .Integrated Dimensions: 200 x 120 x 210mm .Engine Dimensions: 180 x 180 x 100mm .Wooden Base Dimensions: 200 x 120 x 30mm .Weight: 2500g .Displacement: 5CC .Cylinder Diameter: 13mm .Stroke: 20mm .Ignition Unit Power Voltage: 4.5V .Starting Mode: External Force (Electric Drill) or Manual .Product Dimensions: 20 x 12 x 21cm .Product Weight: 2500g .Package Dimensions: 25 x 25 x 25cm .Package Weight: 2800g .Packing: Box
Packing List: 1 x H74 Holt Tractor Engine 1 x Instructions
Liquid error (snippets/product line 1195): Could not find asset snippets/mett-Promotion.liquid
Questions about Shipment
Q1 : Do you ship worldwide? A1 : Yes, we can ship worldwide. Q2 : Where you ship goods from? A2 : Our warehouse is located in China, the goods will be shipped from China mainland.
Q3 : What is the shipping cost? A3 : For giving customer good shopping experience, we offer free international shipment.
Q4 : What is the shipping time? A4 : For expected delivery date, please check in this page: Expected Delivery Time
Q5 : How do I track my package? A5 :You can track your order on 17track.net . Or if you need a team members help check up please contact with our service team service@enginediy.com and we will be in touch with a status update.
Questions about Payment & Order Q1 : What payment terms you can accept? A1 : For payment, we accept Paypal and Credit Card.
Q2 : My payment was declined, why? How to solve it ? A2 : If you made the purchase via Credit Card and failed, could you please contact with Stripe Support Team for solution? Or if the issue can be solved, please no worry, we accept Paypal payment as well.
Q3 : How do I cancel my order? A3 : For the order, if not shipped out yet, please contact with our Service Support Team service@enginediy.com , we will cancel your order and give you full refund.
Q4 : Is my information is securing using this site? A4 : Yes, Enginediy.com takes precautions to protect your personal information. When you submit sensitive information via the website, your information is protected both online and offline. Please don’t worry for this.
Q5 : What if my address is wrong? A5 : If the recipient's address was wrong, after the failed delivery, the parcel should be returned back to sender. After we receive the parcel, we will contact you for an updated address and arrange the new shipment.
Questions about Return & Refunds Q1 : What items are returnable? A1 : a)- We can accept returns or exchanges within the 30-day period. b)- All returned items must be in the original condition: unused, unwashed, and unworn. No exceptions. Q2 : How do I return a product? A2:Contact with Enginediy Service Team service@enginediy.com to confirm details to make sure the item is meet the return condition. After the agreement, Service Team will send the detailed return information, please offer return tracking number after return shipment. Q3 : What is you refund policy? A3 : Refunds are processed within 1-5 business days, after you received our confirmation on the cancellation.
Q4 :How will you refund me? A4 : The refund are applied to the original payment method.

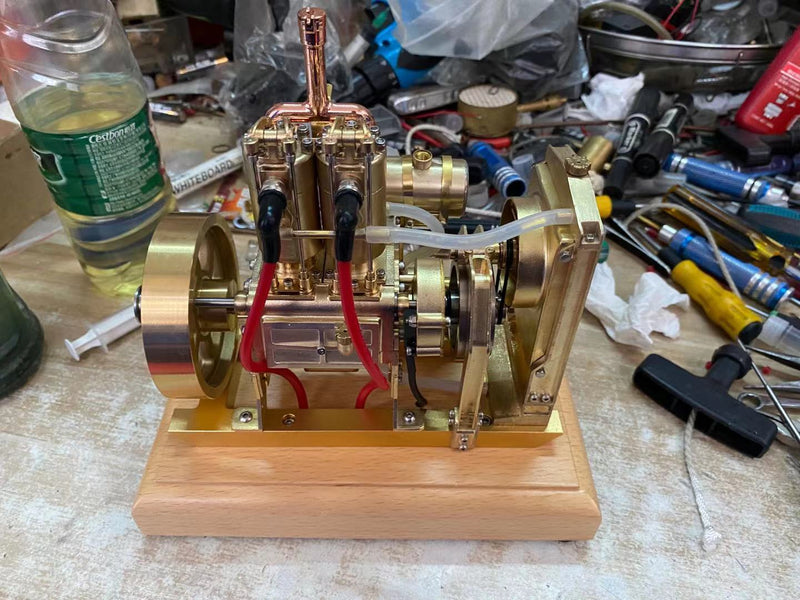

Very nice little motor. Struggle to get it to run - overfuel and spit petrol out of exhaust. Not sure what the problem is maybe timing not correct
B
Brian (Barrington, US)
Neat Little Engine!
With a little tweaking and carburetor adjustment the little engine idles and revs nice! I did eliminate the flyball governor and installed a throttle return spring, only because I prefer a low idle and ability to rev it a little. Overall quite happy with it!
S
Stefan Drews (Stockelsdorf, DE)
Toller Motor mit Verbesserungspotential!
Der Motor läuft hervorragend. Die Einstellung des Vergasers ist allerdings extrem feinfühlig. Die O-Ringe für den Antrieb der Wasserpumpe und des Lüfters sollte man durch etwas Anderes ersetzen, da sie sehr schnell altern und reißen. Leider fehlt ein E-Starter. Damit wäre der optisch sehr ansprechende Motor beispielsweise perfekt für ein offenes Modellschiff oder einen Oldtimer geeignet.
