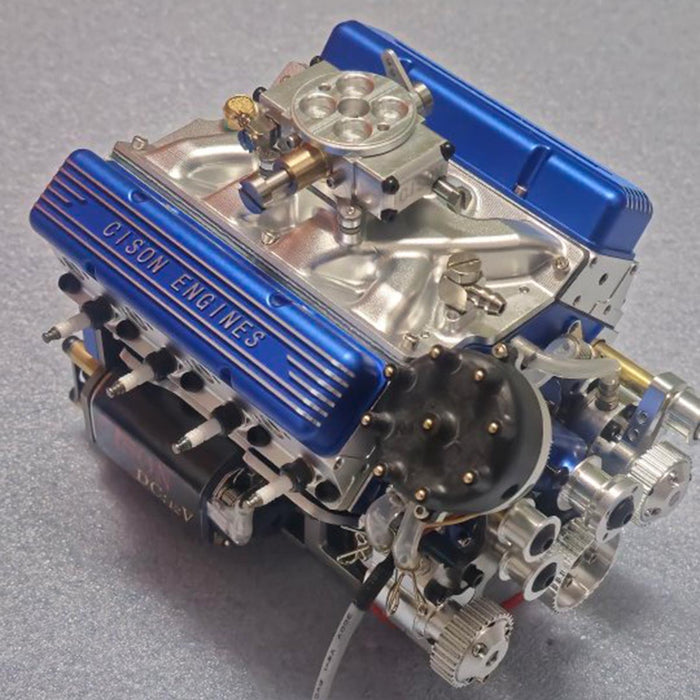

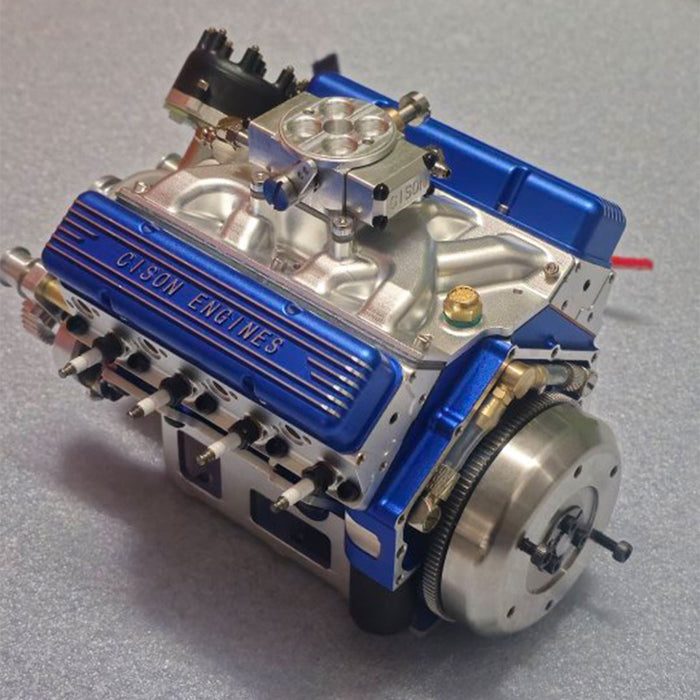

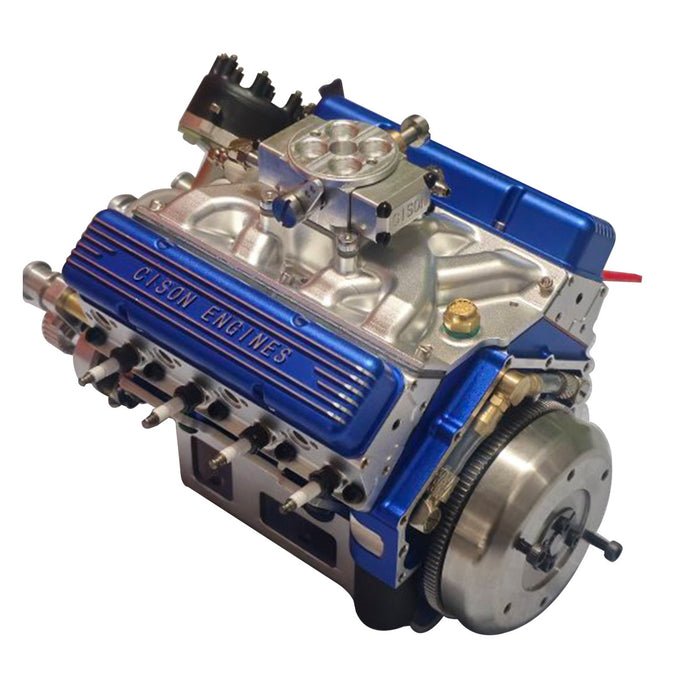

CISON Small-block V8 Engine - V8 Engine Model Kit that Works - Build Your Own V8 Engine - 44CC 1/6 Scale Water-Cooled OHV 4-Stroke V8 Gasoline Engine
Features:
.Introduction: Following the success of CISON's single-cylinder, V2, and L4 engine models, we proudly introduce the Small-block V8, a mini beast that is set to become another classic in the world of scaled engines, impressing enthusiasts with its remarkable features. The V8-440(Flathead) design incorporates elements of the Ford V8, while the V8-440(OHV) draws inspiration from the Chevrolet V8, aiming for a highly realistic appearance. Featuring an exquisite electroplated paint in orange, high-stroke and 4-point supported camshaft, larger intake valves compared to exhaust valves, a 5-point supported crankshaft, reinforced and hardened connecting rods, optional dual cast iron piston rings, independent lubrication system, and a double-layer gear pump water pump, among other features. It's not just a roaring beast on your desk but also a "powerhouse" compatible with RC models, providing enhanced torque and power output. .DIY Fun: Crafted with high-precision parts, easy-to-follow assembly instructions for a deep understanding of engine structure and mechanical principles. .Highly Realistic: Adopt exquisite electroplated paint for a lifelike engine appearance, suitable for real fuel operation, and provides a location for optional generator installation. .Precision Manufacturing: The cylinder is precision machined with 5-axis CNC, repeatability within 0.005mm for better assembly accuracy. .Long Stroke: High-angle, high-hardness wear-resistant camshaft, 4-point supported camshaft, larger intake valve, unaffected by temperature changes with low-temperature intake pipe. .Crankshaft and Connecting Rods: Reinforced and hardened wear-resistant connecting rods, optional dual cast iron piston rings (oil rings are optional), 5-point supported crankshaft for increased high-speed operational strength and stability. .Durable Operation: Equipped with a double-layer gear pump water pump, independent lubrication system, and reserved oil filter installation position. This model in the OHV version can be combined with a rocker arm forced lubrication system with rocker arm lubricant returning to the cylinder block holes, and oil sump with an oil level gauge. .Creative Gift: The assembled model is perfect as a collectible desktop engine model or be installed in RC models, as well as a premium model holiday gift.
Specifications:
.Material: Metal .Brand: CISON .Model: V8-440(OHV) .Name: Small-block .Type: KIT Version .Engine Type: Gasoline Internal Combustion Engine .Valve Mechanism Type: OHV .Displacement: 44CC (8*5.5CC) .Cylinders: V8 .Stroke: 4-Stroke .Bore Diameter: 18.5mm .Stroke Length: 20.5mm .RPM Range: 1500-10000rpm .Power: Approx. 4.8hp .Cooling Method: Water-Cooled .Lubrication Method: Independent Lubrication System .Start Method: Electric Start .Ignition Method: Distributor Ignition (High-Performance CDI Ignition, Frequency 42000) .Spark Plug Type: 1/4-32 ME8 Type Spark Plug .Starting Power Source: 6-12V (Recommended 2S-3S Lipo Battery) .Fuel Type: Gasoline (Recommended 92# and Above Gasoline) .Lubricating Oil Type: 2T Engine Oil (Recommended 10W50 2T Engine Oil) .Product Weight: 1700g .Product Dimensions: 14 x 9.3 x 10cm .Package Dimensions: 30 x 20 x 20cm .Package Weight: 2500g .Packing: Gift Box .Ages: 16+
Liquid error (snippets/product line 1195): Could not find asset snippets/mett-Promotion.liquid
Questions about Shipment
Q1 : Do you ship worldwide? A1 : Yes, we can ship worldwide. Q2 : Where you ship goods from? A2 : Our warehouse is located in China, the goods will be shipped from China mainland.
Q3 : What is the shipping cost? A3 : For giving customer good shopping experience, we offer free international shipment.
Q4 : What is the shipping time? A4 : For expected delivery date, please check in this page: Expected Delivery Time
Q5 : How do I track my package? A5 :You can track your order on 17track.net . Or if you need a team members help check up please contact with our service team service@enginediy.com and we will be in touch with a status update.
Questions about Payment & Order Q1 : What payment terms you can accept? A1 : For payment, we accept Paypal and Credit Card.
Q2 : My payment was declined, why? How to solve it ? A2 : If you made the purchase via Credit Card and failed, could you please contact with Stripe Support Team for solution? Or if the issue can be solved, please no worry, we accept Paypal payment as well.
Q3 : How do I cancel my order? A3 : For the order, if not shipped out yet, please contact with our Service Support Team service@enginediy.com , we will cancel your order and give you full refund.
Q4 : Is my information is securing using this site? A4 : Yes, Enginediy.com takes precautions to protect your personal information. When you submit sensitive information via the website, your information is protected both online and offline. Please don’t worry for this.
Q5 : What if my address is wrong? A5 : If the recipient's address was wrong, after the failed delivery, the parcel should be returned back to sender. After we receive the parcel, we will contact you for an updated address and arrange the new shipment.
Questions about Return & Refunds Q1 : What items are returnable? A1 : a)- We can accept returns or exchanges within the 30-day period. b)- All returned items must be in the original condition: unused, unwashed, and unworn. No exceptions. Q2 : How do I return a product? A2:Contact with Enginediy Service Team service@enginediy.com to confirm details to make sure the item is meet the return condition. After the agreement, Service Team will send the detailed return information, please offer return tracking number after return shipment. Q3 : What is you refund policy? A3 : Refunds are processed within 1-5 business days, after you received our confirmation on the cancellation.
Q4 :How will you refund me? A4 : The refund are applied to the original payment method.
This is my second engine directly from CISON. My first was the V2 15.7cc Harley Davidson Engine and now the Chevy small block V8. Both, I am very pleased with because both came directly from the manufacturer in China and the price compared to buying them in the U.S. is much cheaper directly from China. Customer service is absolutely great! You can usually get a response very quickly. My experience has been within 24 hours! I first contacted CISON about a Hall sensor that went bad on my V2 engine. I had the sensor in my hand about 10 days later straight from China. My second experience was for instructions to assemble the V8 in English. I was immediately sent assembly instructions in Chinese that Lucas said would be converted to English and sent to me later. I actually converted the instructions to English and sent them back to CISON before they could do it! I simply used adobe to convert the document to word format in Chinese and then converted Chinese to English! They were very appreciative to me beating them to the punch. I am still in the process of assembling the V8 and will post videos to YouTube immediately when finished. These model engines are a real work of art and very mind blowing! Today I demonstrated the Harley Davidson engine to automotive students at my school and they were totally blown away that it actually runs..... myself and the instructor showed the partially assembled V8 engine to the students and they can't believe something that small and realistic actually work and runs! They wanted to hold the block! The price you pay for these engines is small compared to the WoW!!! you get from future automotive technicians. My plans are to purchase another one and donate it to the school. These things are great conversation pieces, fun to work on and even great to just look at! I love my purchases from CISON because they're trustworthy, reliable and better to purchase from than local. Stay tuned for my first videos on YouTube that will demonstrate problems, fixes and downloadable instructions in English. My first video will show what's in the box? Assembly and then running! Stay tuned...... I'll be back!
This is my second engine directly from CISON. My first was the V2 15.7cc Harley Davidson Engine and now the Chevy small block V8. Both, I am very pleased with because both came directly from the manufacturer in China and the price compared to buying them in the U.S. is much cheaper directly from China. Customer service is absolutely great! You can usually get a response very quickly. My experience has been within 24 hours! I first contacted CISON about a Hall sensor that went bad on my V2 engine. I had the sensor in my hand about 10 days later straight from China. My second experience was for instructions to assemble the V8 in English. I was immediately sent assembly instructions in Chinese that Lucas said would be converted to English and sent to me later. I actually converted the instructions to English and sent them back to CISON before they could do it! I simply used adobe to convert the document to word format in Chinese and then converted Chinese to English! They were very appreciative to me beating them to the punch. I am still in the process of assembling the V8 and will post videos to YouTube immediately when finished. These model engines are a real work of art and very mind blowing! Today I demonstrated the Harley Davidson engine to automotive students at my school and they were totally blown away that it actually runs..... myself and the instructor showed the partially assembled V8 engine to the students and they can't believe something that small and realistic actually work and runs! They wanted to hold the block! The price you pay for these engines is small compared to the WoW!!! you get from future automotive technicians. My plans are to purchase another one and donate it to the school. These things are great conversation pieces, fun to work on and even great to just look at! I love my purchases from CISON because they're trustworthy, reliable and better to purchase from than local. Stay tuned for my first videos on YouTube that will demonstrate problems, fixes and downloadable instructions in English. My first video will show what's in the box? Assembly and then running! Stay tuned...... I'll be back!
V8-440 (OHV) follows the design concept of Chevrolet V8

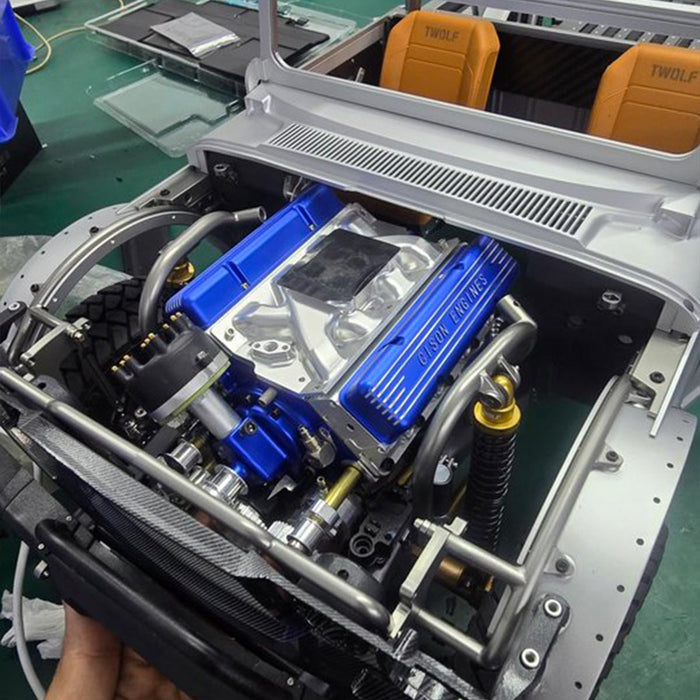

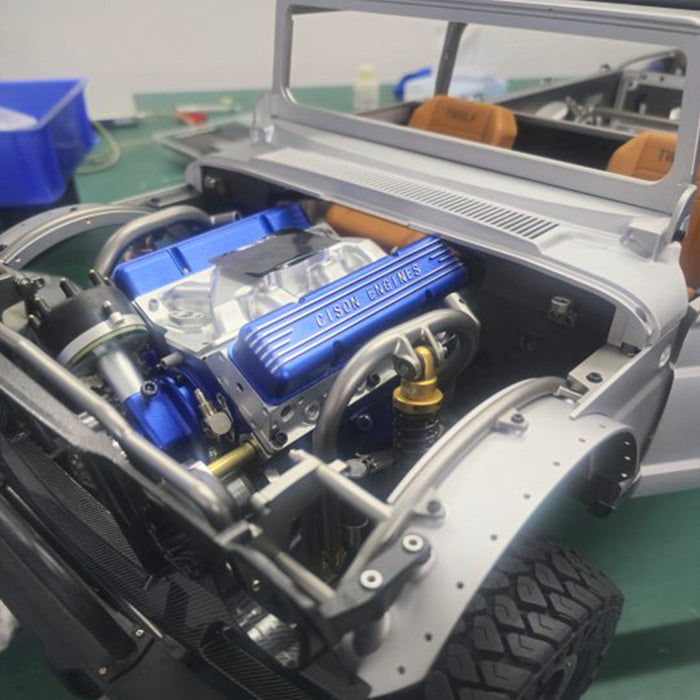

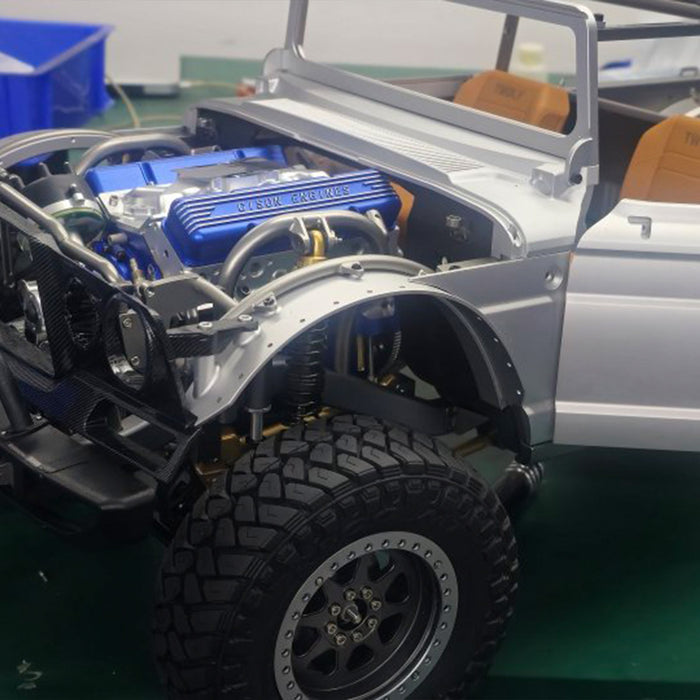

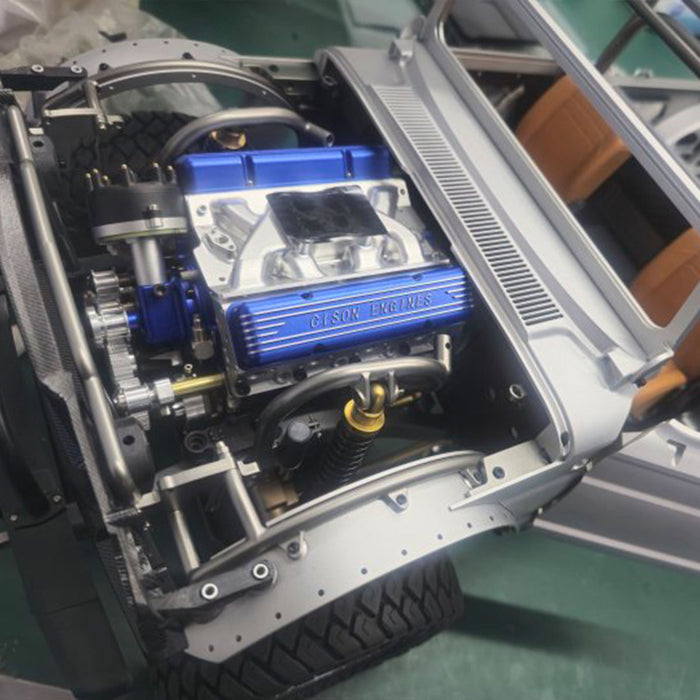

It is not only a roaring little beast on the desktop, but also the "power heart" that is compatible with RC models, effectively providing higher torque and power output.
The engine is a parts kit version and does not include spark plugs, ignition accessories, water cooling accessories, bases, etc.
Please use the engine according to the instructions in the manual to avoid damage to the engine due to improper operation.
If you have any questions, please contact us in time.
Shipping
The pre-sale period is two months, and the engine is expected to be shipped as soon as possible after production is completed in January 2024.
Returns
Unwashed, unworn, and unused item(s) that have not met your expectations within 30 days of receiving.
Features
Intake valve
Enlarge the intake valve.Larger than the exhaust valve
Lubrication system
OHV can be installed with rocker arm forced lubrication system (with rocker arm lubricating oil return cylinder hole), and the oil pan has an engine oil dipstick.
Ignition method
Distributor (high performance cdi frequency 42000)
Cylinder block
With installed oil filter position
Carburetor
Optional four-hole carburetor for OHV version
Intake pipe
In order to ensure that the intake manifold temperature does not affect the engine power, a low-temperature intake pipe is specially designed.
About Chevy
Referred to as a "small-block" for its size relative to the physically much larger Chevrolet big-block engines, the small block family spanned from 262 cu in (4.3 L) to 400 cu in (6.6 L) in displacement. Engineer Ed Cole is credited with leading the design for this engine.
Add to that the small-block Chevrolet V-8 (SBC), the most prolific engine ever made. Since its 1955 introduction, more than 108 million have been sold. It may be the most beloved internal combustion engine of all time, thanks to its performance, durability, adaptability, and accessibility.
Celebrating Chevy Small Block V8 Engines
WILLIAMS
The Chevy Small Block V8 engines are truly exceptional in their performance. These engines are known for delivering impressive power, robust torque, and quick acceleration. Their performance characteristics offer an exhilarating driving experience, making them a top choice for those seeking high-performance engines.
FRANCIS
Chevy Small Block V8 engines are incredibly versatile and can be found in a wide range of vehicles, from sports cars to trucks. This versatility allows for a tailored engine choice that suits a variety of driving needs, whether it's for towing, daily commuting, or spirited driving.
MARVELOUS
The Small Block V8 engines feature a design that has been continuously refined over the years. Their combination of modern technology with a reliable foundation is an engineering feat worth praising.
JOSH
The extensive aftermarket support available for Small Block V8 engines allows for easy customization and upgrades. This support empowers enthusiasts to enhance their engines with a wide range of performance parts and accessories, elevating the driving experience to their preferences.
