M90 Upgrade Hit & Miss Gas Engine Full Metal IC Engine With Base Collection Gift

Original price $349.99 - Original price $349.99
Original price
$349.99
$349.99 - $349.99
Current price $349.99

Early Black Friday Deals: Get Extra 12% Off with Coupon Code:BF12

Join Our FacebookGroup & Get Extra Discount!

Build Your Own MOC Engine Bricks & Save Up to $200 OFF!

SKU 332916103ED

1. Free Shipping Of All /Return guarantee /Payment secure.

2. Please contact us for Wholesale.

  • American Express
  • Apple Pay
  • Mastercard
  • PayPal
  • Visa

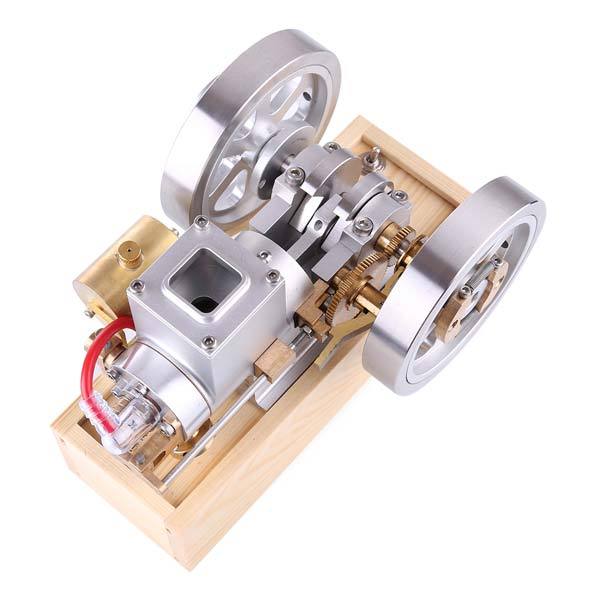

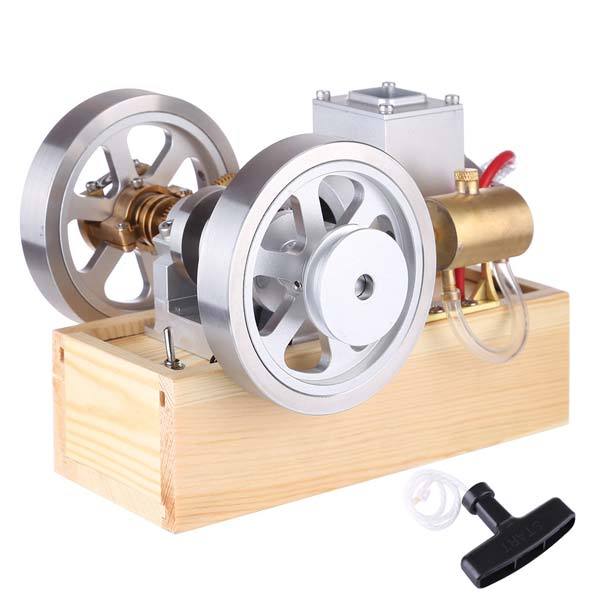

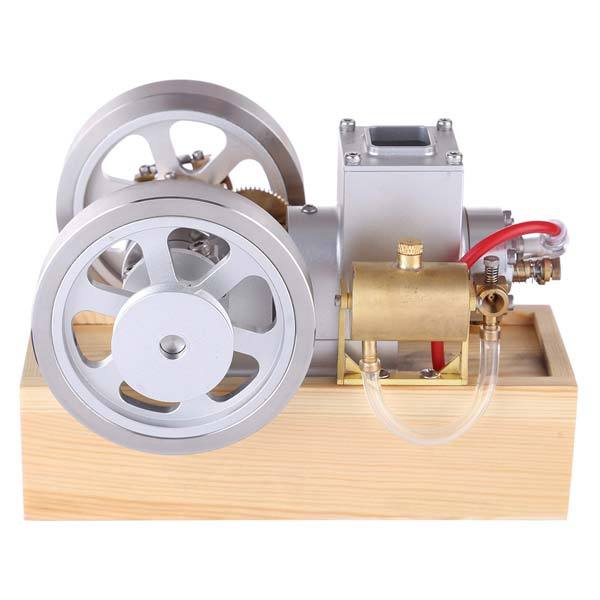

Upgrade Hit & Miss Gas Engine Full Metal IC Engine With Base Collection Gift

A hit-and-miss engine is a type of four-stroke internal combustion engine that is controlled by a governor to operate at a set speed.
This is a upgraded hit and miss engine. Equipped with wooden base, easy placement and operation.

Description:
Item Name: Hit & Miss Gas Engine
Color: Sliver
Material: Aluminium Alloy
Weight: About 2.2kg(Engine+Wooden Base)
Size Of Engine: 180*125*75mm(L*W*H)
Size Of Wooden Base: 180*66*50mm(L*W*H)
Cylinder Diameter: 22mm
Ltinerary: 20mm
Voltage: 3.5V
Fuel: Kerosene or Gasoline
The best tappet clearance: 0.5mm
Weight: 1610g
Revolutions Per minute:1200rmp

Engine Startup Steps:
1. Open the bottom of base to check the wiring of the engine, connect the fuel tank piep, and install 3 AA batteries.
2.Fill the fuel tank with gasoline(95#). When the filling is completed, make sure there's no air in the oil pipe.
3.On the right side of the engine(installation of the flying hammer position), slowly turn counterclockwise by hand to buy more than one turn.Its role can make the mixed gasoline fully enter the cylinder.
4.Turn on the power switch and turn the flywheel to start the engine counterclockwise on the right side of the engine(installing the flying hammer position)

Precautions:
1.If the ignition device is normal and the cylinder is under normal compression, if the machine still does not start normally, it's very likely that the carburetor needle should be adjusted.
2.Screw the screw on the top of the carburetor, then loosen 1/4 turn, start the flywheel. This can be done several times to make the mixing ratio gasoline and air reach the normal working mix ratio.

Note:
1.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
2.Please allow little differs due to manual measurement.
3.Kids should be accompanied by adult.
4.Kids under 8 are not recommended to play.
5.Please be careful when you add the fuel.
6.An O-ring, which is not so airtight and can be started better

Package Included:
1 X Hit & Miss Gas Engine (With Base)

Questions about Shipment Q1 : Do you ship worldwide?A1 : Yes, we can ship worldwide.
Q2 : Where you ship goods from?A2 : Our warehouse is located in China, the goods will be shipped from China mainland.

Q3 : What is the shipping cost?A3 : For giving customer good shopping experience, we offer free international shipment.

Q4 : What is the shipping time?A4 : For expected delivery date, please check in this page: Expected Delivery TimeQ5 : How do I track my package?A5 :You can track your order on 17track.net . Or if you need a team members help check up please contact with our service team service@enginediy.com and we will be in touch with a status update.

Questions about Payment & OrderQ1 : What payment terms you can accept?A1 : For payment, we accept Paypal and Credit Card.

Q2 : My payment was declined, why? How to solve it ?A2 : If you made the purchase via Credit Card and failed, could you please contact with Stripe Support Team for solution? Or if the issue can be solved, please no worry, we accept Paypal payment as well.

Q3 : How do I cancel my order?A3 : For the order, if not shipped out yet, please contact with our Service Support Team service@enginediy.com , we will cancel your order and give you full refund.

Q4 : Is my information is securing using this site?A4 : Yes, Enginediy.com takes precautions to protect your personal information. When you submit sensitive information via the website, your information is protected both online and offline. Please don’t worry for this.

Q5 : What if my address is wrong?A5 : If the recipient's address was wrong, after the failed delivery, the parcel should be returned back to sender. After we receive the parcel, we will contact you for an updated address and arrange the new shipment.

Questions about Return & RefundsQ1 : What items are returnable?A1 : a)- We can accept returns or exchanges within the 30-day period. b)- All returned items must be in the original condition: unused, unwashed, and unworn. No exceptions.
Q2 : How do I return a product?A2:Contact with Enginediy Service Team service@enginediy.com to confirm details to make sure the item is meet the return condition. After the agreement, Service Team will send the detailed return information, please offer return tracking number after return shipment.Q3 : What is you refund policy?A3 : Refunds are processed within 1-5 business days, after you received our confirmation on the cancellation.

Q4 :How will you refund me?A4 : The refund are applied to the original payment method.

Customer Reviews

Based on 11 reviews
82%
(9)
18%
(2)
0%
(0)
0%
(0)
0%
(0)
K
Kenneth Lutz
Great little engine !! A***** 5 star

I really enjoy this engine, It arrived very well packed as in videos on it, find many on youtube. checked it over 100% A-OK. put in batteries, I used 3 as required. Using camp -fuel- Non-Coleman brand, A hint of marvel mystery oil in fuel. use my Cox model aircraft fuel can and pump to fill tank, just the right size to fuel it up with the small tank fill opening. Syringe to oil all moving parts and friction spots. No air in fuel line. turned engine over 2 times to prime switch off, then switch on- pulled 2 times with starter rope included and pop pop pop amazing. It will start without pull rope too just flip flywheel. Runs excellent! slight carb needle adjustment here at 8500 feet elevation. needle very touchy! set it and leave it alone. starts great after running 10-15 mins at a time. Water hopper 3/4 full, have run many times now. I do be critical of oiling it well. inside cylinder as well. Amazing little engine, machining is spot on. I am very pleased with my purchase here with Engine DIY , shipping was trackable and very quick. 2 weeks time in transit or close to. I would purchase from DIY again. Thanks for a quality product DIY, Ken

H
Henry Groen jr (Warwick, US)
Hit n miss

Great little motor! Some minor adjustments are required. As far as the right type of fuel goes it needs to be naphta based being 95 octain is race car fuel here in the U.S. so that being said use Colman multi fuel with a dash of marvel mistory oil. For more info google it.

C
Customer (Kettle Point, CA)
This is a great engine, well made and easy to run.

I used my engine to make a model Rumely Oil Pull tractor. You can see a You Tube video of it here https://www.youtube.com/watch?v=PUeDTHd21DU

V
Victor Lindgren (Minneapolis, US)
H - 90 review

I have received the engine and I was really impressed with the quality and workmanship. I am a retired Engineer and Machinst, so I know quality when I see it. I look forward to ordering another engine, but I am not sure which one I want yet. I am undecided which type of fuel to use in it. I was wondering about some of the premixed chainsaw fuel, like maybe Stihl premixed fuel. I would appreciate any suggestions. Thank You very much for a great little engine.

O
Olin Kane (Denver, US)
Hit and Miss is a hit

Really a quality machine. I put weaker springs on the governor to slow it down a bit so that it’s more realistic. Starts easily by hand every time and is a great conversation piece.
