⏰ Limited-Time Early Bird Offer! Shipping by the end of Sep!
💥 Early Bird Special: Save $1,000 — now only $9,999.99!
🌎 Only 20 units worldwide — be among the first to own this limited-edition V12 engine model!
💡 Warm Tips: Buy early, enjoy early!
🎁 FREE Starter Kit worth $799.99 with every purchase! 🏷️ Each engine comes with a customized nameplate & exclusive serial number. 🔥 Don’t miss this rare collector’s opportunity!
Product Information:
Looking for a running V12 engine model with real mechanical operation? The RUIFEIYA V12-180 combines 180cc displacement, 48-stem DOHC construction, water cooling, dual-pump lubrication, brushless electric start and electronic monitoring for RC applications, workshops and mechanical demonstrations.
Realistic 1/4 Scale V12 Engine Structure:
Built from 500+ precision components, the V12-180 features a 60° V12 layout, DOHC stem train, 48 stems, 13.7:1 pressure ratio and three-ring pistons. During operation, the pistons, gears and timing components move visibly to demonstrate the character of a working V12 engine.
Dual-Pump Lubrication System:
High- and low-pressure oil pumps work together to circulate engine oil through key components. The crankshaft incorporates oil passages, while the camshaft receives dedicated lubrication, supporting consistent oil circulation during extended running sessions.
External Centrifugal Water Cooling:
An independent centrifugal water pump and enlarged external water passages help transfer heat far from the cylinder block. The water-cooling system supports stable operating temperatures during demonstrations, testing, and compatible RC vehicle or boat applications.
Brushless Electric Start and Electronic Monitoring:
A 3660 brushless motor provides one-button electric starting. The system includes a V12 ECU, CDI high-voltage ignition controller, oil and coolant temperature sensors, and an RPM display. Three independent carburetors provide fuel delivery, with a 200A ESC and 5–6S lithium battery recommended.
Pre-Assembled Performance Engine for RC and Display:
The engine arrives pre-assembled with cooling components, sensors, ECU, RPM display, spark plugs, oil filter, and related components. Its 17 HP output is designed for compatible 1/4 and 1/5 RC vehicles and large RC boats, while the running mechanism also makes it suitable for workshop displays and mechanical demonstrations.
Specifications:
.Material: Metal .Color: Blue .Brand: RUIFEIYA .Model: V12-180 .Engine Type: Gasoline Internal Combustion Engine .Form: Pre-Assembled Version .Displacement: 180 cc (12 × 15 cc) .Cycle: 4-Stroke .Cylinders: V12 .Cylinder Angle: 60° .Bore: 27.00 mm .Stroke: 27.00 mm .Pressure Ratio: 13.7:1 .Stem Train: Dual Overhead Camshaft (DOHC) .Stems: 48 (12 × 4), Four-Stem Configuration .Piston Rings: 3 Rings (Piston Ring + Pressure Ring + Oil Ring) .Carburetors: Three Independent Carburetors .RPM: 2,000–12,000 RPM .Power: 17 HP .Cooling: Water Cooling .Cooling System: External Centrifugal Water Pump .Lubrication: Independent Lubrication System with High- and Low-Pressure Oil Pumps .Starting: Electric Start with 3660 Brushless Motor .Spark Plugs: 3/16-40 Imperial Thread Spark Plugs × 12 .Water-Cooling Equipment: Water Tank and Fan-Cooled Radiator; recommended size of at least 240 × 100 mm .Starting ESC: 200A ESC; required power voltage 19V, recommended 5S–6S lithium battery .Ignition Equipment: CDI High-Voltage Ignition Controller; required power voltage 12V, recommended 3S lithium battery .Fuel: 95# / 98# Gasoline .Engine Oil: 4T Engine Oil; recommended viscosity 5W-30 or 10W-40, approximately 200 mL .Product Weight: 12500g .Package Weight: 20000g .Product Dimensions: 28.8 x 23.1 x 28.3cm .Package Dimensions: 35 x 35 x 35cm .Packaging: Carrying Case .Age: 18+
RUIFEIYA V12-180 is a pre-assembled V12 engine model developed over six years and constructed from more than 500 precision components. At 1/4 scale, it presents the complete structure of a high-performance V12 internal combustion engine. The engine arrives pre-assembled, eliminating the need for DIY assembly.
During operation, the pistons, timing mechanism and exhaust manifolds move in coordination, accompanied by the characteristic mechanical sound of a V12 engine. The system incorporates dual-pump lubrication, external centrifugal water cooling and one-button brushless electric starting to support extended operation.
The engine can serve as a high-end mechanical display model and can provide power for compatible 1/4 and 1/5-scale RC vehicles and boats. It can also be used for mechanical engineering demonstrations and internal-combustion-engine education.
Important Operating Notice: This is a high-performance precision internal-combustion-engine model intended only for users aged 18 and above with practical internal-combustion-engine operating experience. A new engine requires approximately 25 hours of idle break-in. Avoid high-RPM operation during the break-in period. Operate only in a well-ventilated, open environment and follow the instruction manual for maintenance and servicing. Non-professional users should not disassemble the engine.
Questions about Shipment Q1 : Do you ship worldwide?A1 : Yes, we can ship worldwide. Q2 : Where you ship goods from?A2 : Our warehouse is located in China, the goods will be shipped from China mainland.
Q3 : What is the shipping cost?A3 : For giving customer good shopping experience, we offer free international shipment.
Q4 : What is the shipping time?A4 : For expected delivery date, please check in this page: Expected Delivery TimeQ5 : How do I track my package?A5 :You can track your order on 17track.net . Or if you need a team members help check up please contact with our service team service@enginediy.com and we will be in touch with a status update.
Questions about Payment & OrderQ1 : What payment terms you can accept?A1 : For payment, we accept Paypal and Credit Card.
Q2 : My payment was declined, why? How to solve it ?A2 : If you made the purchase via Credit Card and failed, could you please contact with Stripe Support Team for solution? Or if the issue can be solved, please no worry, we accept Paypal payment as well.
Q3 : How do I cancel my order?A3 : For the order, if not shipped out yet, please contact with our Service Support Team service@enginediy.com , we will cancel your order and give you full refund.
Q4 : Is my information is securing using this site?A4 : Yes, Enginediy.com takes precautions to protect your personal information. When you submit sensitive information via the website, your information is protected both online and offline. Please don’t worry for this.
Q5 : What if my address is wrong?A5 : If the recipient's address was wrong, after the failed delivery, the parcel should be returned back to sender. After we receive the parcel, we will contact you for an updated address and arrange the new shipment.
Questions about Return & RefundsQ1 : What items are returnable?A1 : a)- We can accept returns or exchanges within the 30-day period. b)- All returned items must be in the original condition: unused, unwashed, and unworn. No exceptions. Q2 : How do I return a product?A2:Contact with Enginediy Service Team service@enginediy.com to confirm details to make sure the item is meet the return condition. After the agreement, Service Team will send the detailed return information, please offer return tracking number after return shipment.Q3 : What is you refund policy?A3 : Refunds are processed within 1-5 business days, after you received our confirmation on the cancellation.
Q4 :How will you refund me?A4 : The refund are applied to the original payment method.

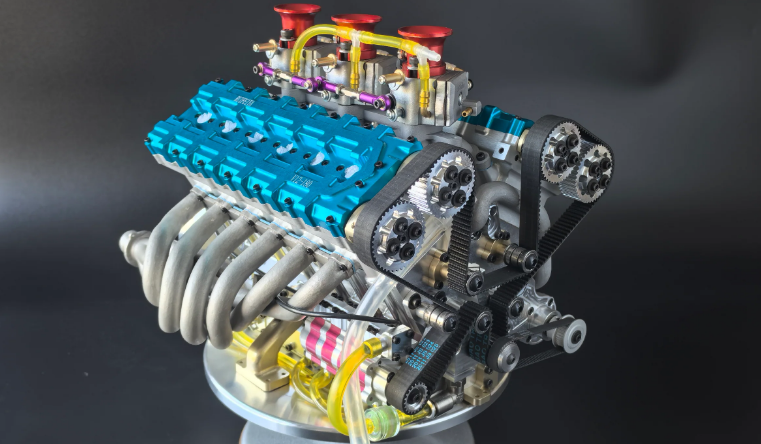

Inheriting the engineering heritage of high-performance racing, the V12-180 features a dedicated four-valve configuration for each cylinder, precisely driven by a Dual Overhead Camshaft (DOHC) system. Its 48-valve architecture maximizes intake and exhaust efficiency, optimizes gas exchange cycles, and delivers faster, more precise response throughout the entire power range, while showcasing the distinctive mechanical beauty of a true high-performance V12 engine.

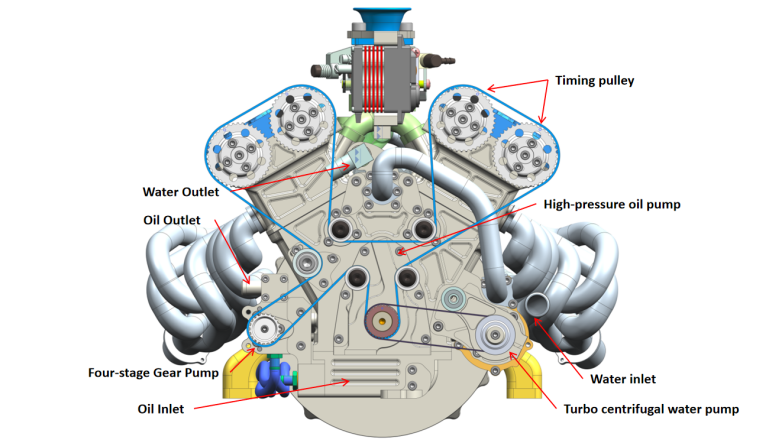

Dual-Pump Full-Circulation Lubrication System
High-Pressure Lubrication Pump: Precisely delivers lubricating oil to critical moving components such as the crankshaft, camshaft, and connecting rods. The internal oil passages within the crankshaft, combined with the main oil gallery in the engine block, ensure comprehensive lubrication throughout the entire system.
Low-Pressure Scavenge Pump: Responsible for recovering and returning oil back to the reservoir, creating a fully automatic closed-loop lubrication system.
This design effectively reduces component wear, minimizes the frequency of failures, and significantly extends maintenance intervals for long-term, stable operation.

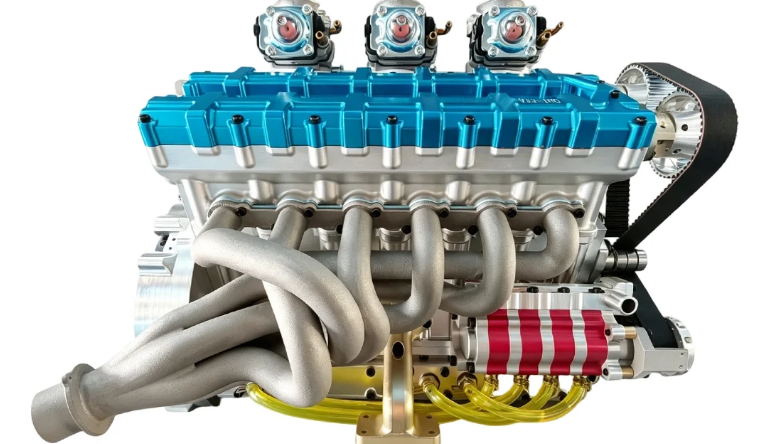

High-Compression Three-Ring Piston Design
Engineered to withstand intense thermal loads, the connecting rod and piston assemblies feature a true automotive-grade three-ring layout (two precision gas compression rings and one dedicated oil control ring). This ensures immaculate cylinder sealing, minimizes blow-by, and stabilizes power output at high revs.

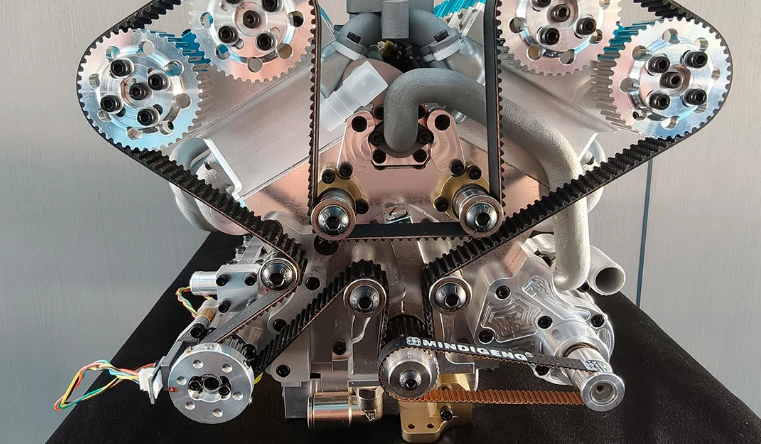

External Centrifugal Water Cooling
An independent centrifugal water pump and enlarged external water passages help transfer heat far from the cylinder block. The water-cooling system supports stable operating temperatures during demonstrations, testing, and compatible RC vehicle or boat applications.

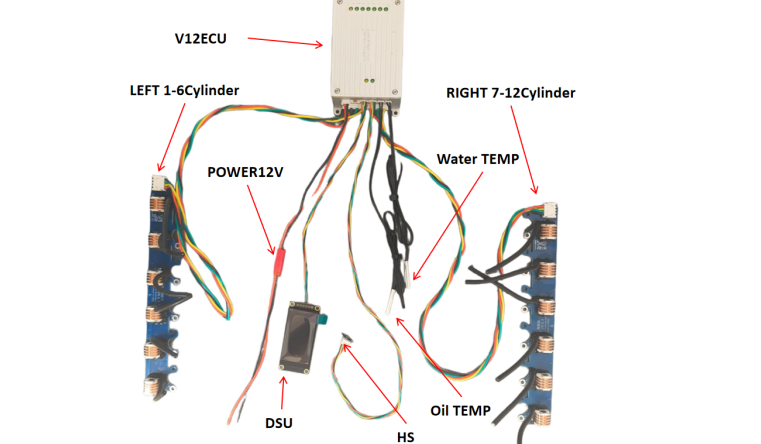

Brushless Electric Start and Electronic Monitoring
Powered by a 3660 high-torque brushless motor, the V12-180 delivers a convenient and reliable one-key electric start experience, eliminating the hassle of traditional pull-start systems. The three independent carburetors precisely regulate fuel delivery, ensuring efficient atomization, stable combustion, and maximum V12 performance.
Frequently Asked Questions
The RUIFEIYA V12-180 is designed for serious mechanical enthusiasts, collectors, RC builders, and engineering education applications. It is not a regular toy — it is a high-precision, fully functional gasoline engine model with real combustion, high-speed operation, and complex mechanical structures.
With its authentic V12 layout, 180cc displacement, DOHC 48-valve design, and realistic mechanical operation, it is ideal for:
Advanced engine model collectors Mechanical engineering enthusiasts RC vehicle and boat modification projects STEM and engineering demonstrations High-end desktop mechanical displays
Please note: due to its complexity and fuel-powered operation, it is recommended for users aged 18+ with basic engine operation knowledge. Beginners should operate it with proper guidance.
No. The RUIFEIYA V12-180 comes as a fully pre-assembled engine model.
Unlike traditional DIY engine kits, the V12-180 is delivered as a finished product because of its extremely complex internal structure and precision requirements. The engine contains more than 500 precision components and requires professional assembly and calibration.
Pre-assembly helps ensure:
Correct mechanical timing Accurate valve operation Stable engine performance Reduced risk of assembly mistakes
You can enjoy the mechanical beauty and real engine experience immediately after completing the necessary setup.
The package includes almost everything required to operate the engine.
The V12-180 is designed for multiple applications:
High-end mechanical display and collection Engineering education demonstrations 1/4 scale vehicle projects 1/5 scale RC cars Large RC boat projects
Its compact V12 structure and powerful output make it suitable for advanced RC modification projects requiring a real combustion engine experience.
Before installation into a custom project, please confirm the available space, mounting structure, cooling system, fuel system, and transmission requirements.
Compared with the previous V10 generation, the V12-180 features major structural and performance upgrades:
Larger displacement: 1) Increased to 180cc displacement 2) V12 configuration for smoother power delivery and a deeper engine sound
More advanced intake and fuel system: 1) Upgraded three-carburetor configuration 2) Easier adjustment and improved fuel supply stability
Improved exhaust system: 1) Optimized second-generation exhaust manifold design 2) Produces a more authentic and powerful V12 exhaust note
More realistic mechanical structure: DOHC dual overhead camshaft 48-valve cylinder head 13.7:1 compression ratio Three-ring piston design
The RUIFEIYA V12-180 is currently available for pre-order.
The engine production is nearly completed and the remaining process includes:
Final assembly Performance testing Quality inspection Running tests
Estimated shipping time: Late September
Each engine will be carefully tested before shipment to ensure it meets performance standards.
Yes.
For the V12-180, we provide:
Free worldwide DHL Express shipping DDP shipping service (duties and taxes prepaid)
You do not need to handle complicated customs procedures after shipment.
To protect this precision engine during international transportation, each unit is packed in a specially designed aviation aluminum alloy flight case.
The case provides:
Strong impact protection Secure transportation Convenient storage and carrying for exhibitions or outdoor events
For installment payment options, please contact our sales team:
Email: sales@enginediy.com
Our team will provide available payment solutions according to your order situation.
We provide lifetime free technical support for every RUIFEIYA V12-180 owner.
If a component is damaged during normal startup or operation due to a non-human factor, we can provide replacement parts.
For technical assistance, our team will continue supporting you throughout your ownership experience.
Because the RUIFEIYA V12-180 is a highly specialized precision engine model, returns and exchanges are handled according to the actual situation.
If there is a confirmed manufacturing defect, we provide inspection, repair, and replacement support.
Please contact our technical team first if you experience any issues. We will help diagnose and provide the best solution.
