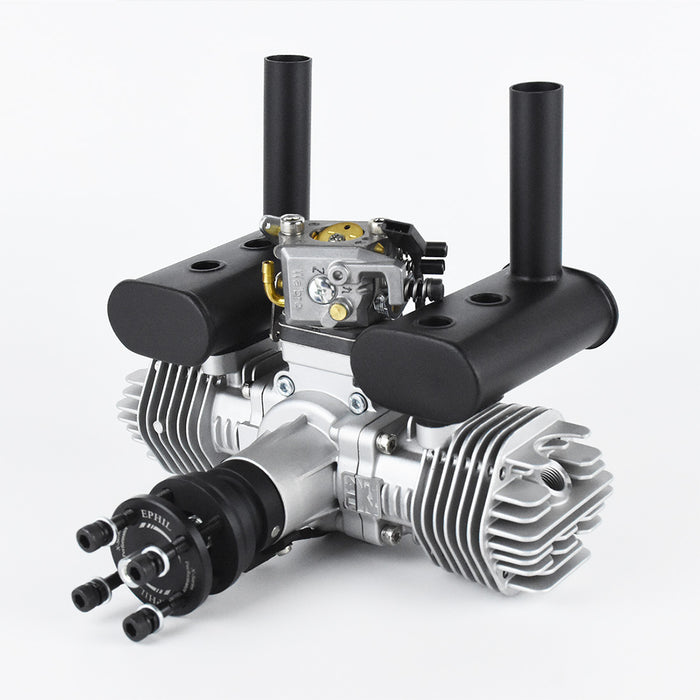

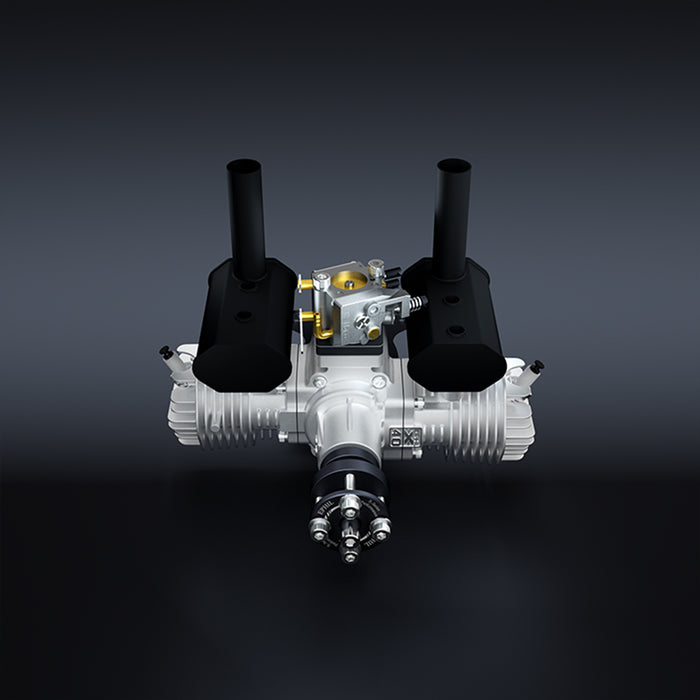

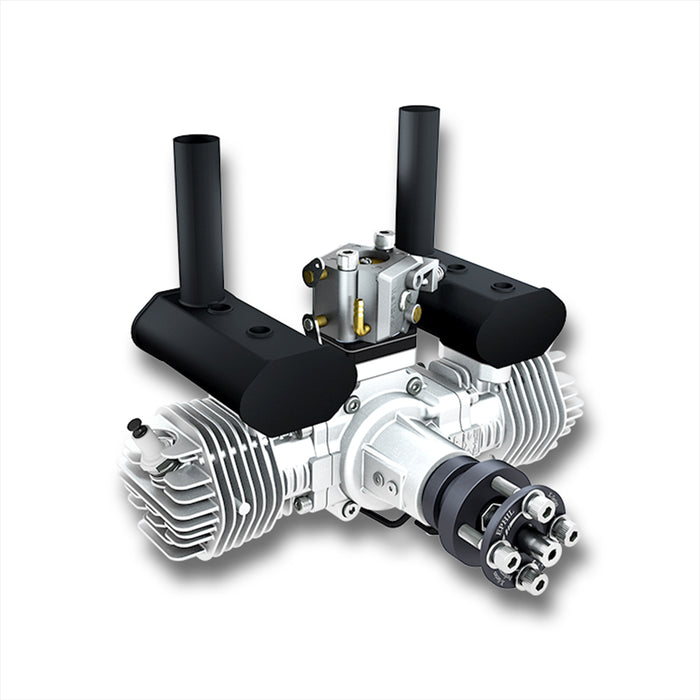

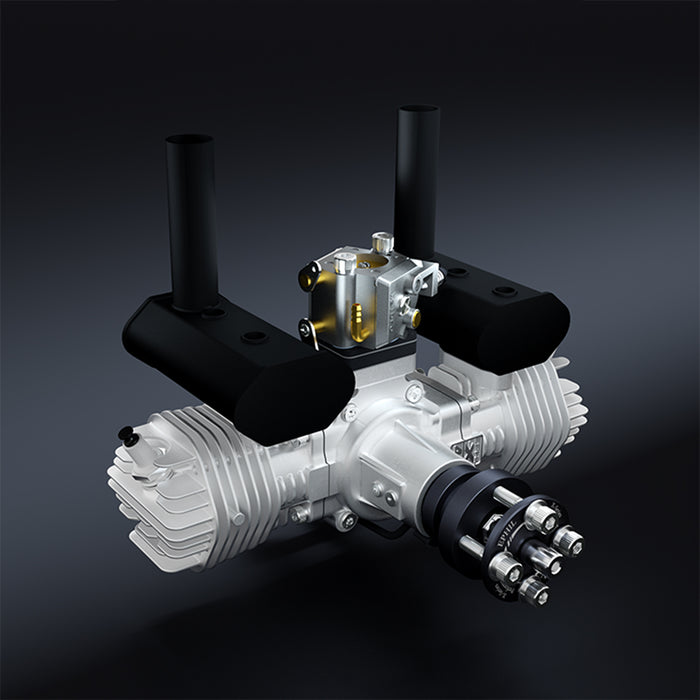

EPHIL XG-40cc-T Two-Stroke Twin-Cylinders Horizontally Opposed Gasoline Engine Model for Fixed-Wing Aircraft Models
Features:
.EPHIL X-40cc-T, a high-performance gasoline engine model meticulously engineered for fixed-wing aircraft enthusiasts. This two-stroke, twin-cylinders engine is designed with precision manufacturing to ensure stable operation, exceptional quality, and robust power output.

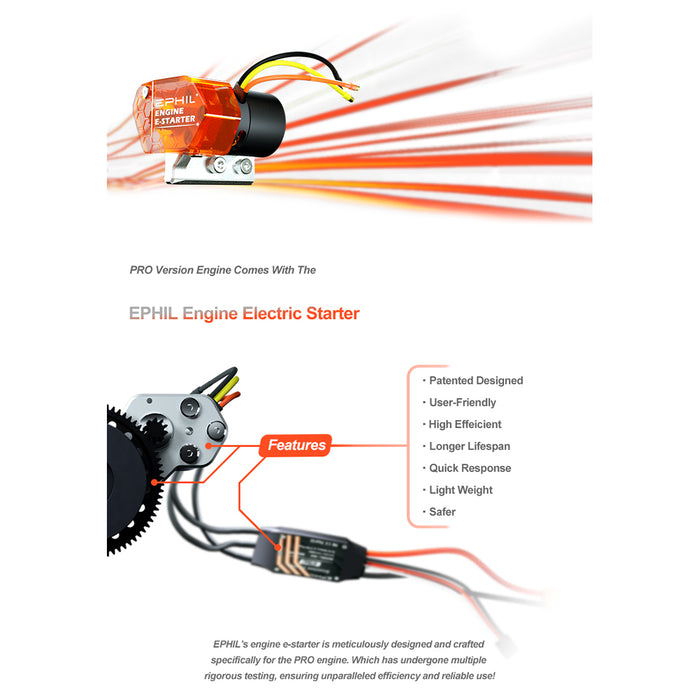

.One of the standout features of the EPHIL X-40cc-T is its upgraded Pro engine with electric start capability. Equipped with an electronic control system, this engine allows for a seamless one-button start, making your setup quick and hassle-free. Extensive testing and positive user feedback underscore its dependability and superior performance.
.The standard CM6 spark plug included with this engine enhances stability in high-temperature and high-pressure cylinder environments, significantly outlasting conventional spark plugs. This ensures your engine runs smoothly and efficiently for extended periods.
.Additionally, the EPHIL X-40cc-T comes with a specially designed exhaust pipe that can be easily connected to a smoke system, enabling spectacular smoke trails that brights the sky like shooting stars. This feature adds a visually stunning to your flight experience, making every takeoff and maneuver even more captivating.
.Compatible with a wide range of fixed-wing aircraft models, delivering powerful and consistent performance. The EPHIL X-40cc-T is your trusted partner in the skies, providing the power and reliability you need to achieve outstanding flight results every time.
Specifications:
.Material: Metal
.Brand: EPHIL
.Model: X-40cc-T
.Displacement: 40cc (2.44 cu in)
.Performance: 4.6 HP
.Speed Range: 1800-8300 RPM (Tested Paddle-20*8)
.Bore: 32 mm (1.26 in)
.Stroke: 27 mm (1.06 in)
.Static Thrust: 11.5 kg @ 100 m ALT (25.4 lb @ 328 ft ALT)
.Static Thrust: 9.0 kg @ 1800 m ALT (19.8 lb @ 5900 ft ALT)
.Compression Ratio: 9:1
.Lubrication Ratio: 30:1 (Gasoline: Lubricating Oil)
.Ignition Voltage: 6-14V
.Spark Plug Type: CM6 Spark Plug
.Recommended Propeller: 20x8; 20x10; 19x8; 19x10
.Weight of Main Engine: 1190g
.Weight of Muffler Set: 136g(L&R Exhaust Pipe; Screws)
.Weight of Aluminum Standoffs Set: 84g
.Weight of Spark Plug: 13.5g *2 (CM6*2)
.Weight of CDI(Ignition): 175g
.Total Weight: 1786g (3.94lb)
.Product Weight: 1570g

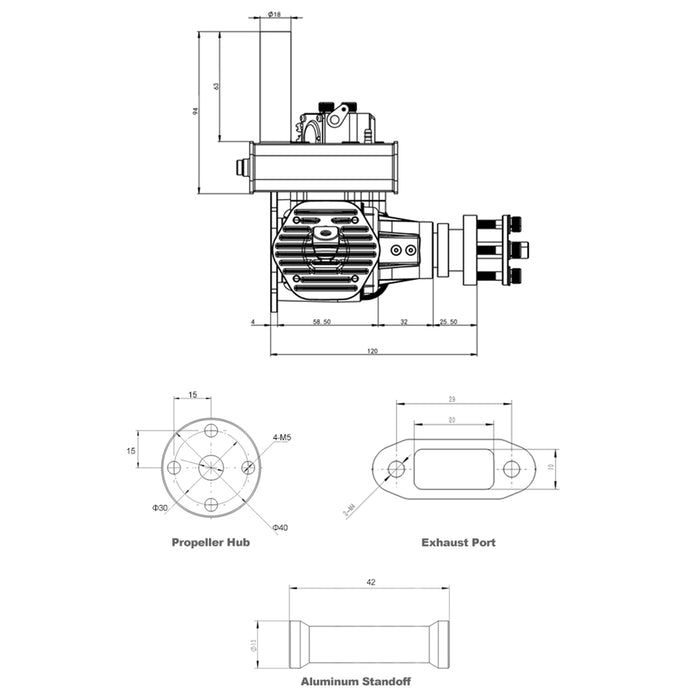

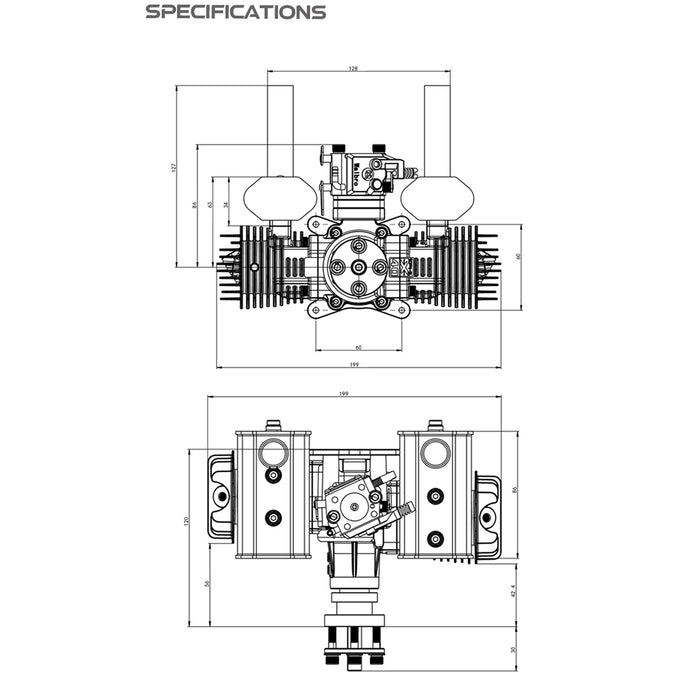

.Product Dimensions: 19 x 9.5 x 15.7cm
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1770g
.Packing: Box
.Ages: 16+
Packaging List:
.Engine *1
.Exhaust Pipe *1
.CM6 Spark Plug *2
.CDI Igniter *1
.Engine Mount *1
.Paddle Shaft Adapter *1
.Gear-Driven Paddle Shaft *1
.Electric Starter *1
.ESC *1
.User Manual & Warranty Card *1
