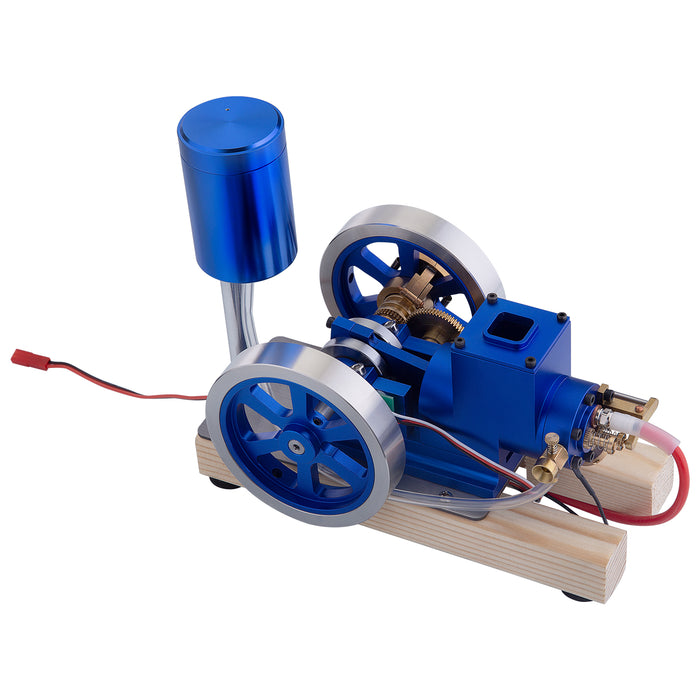

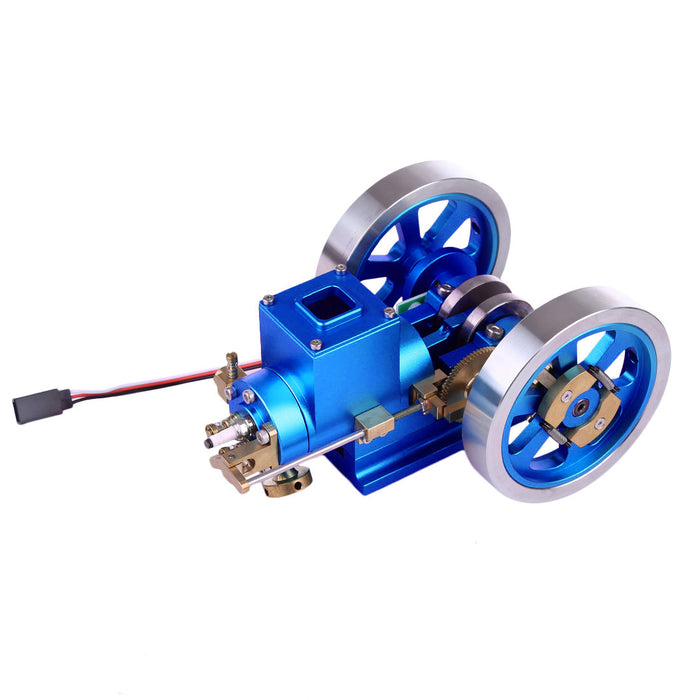

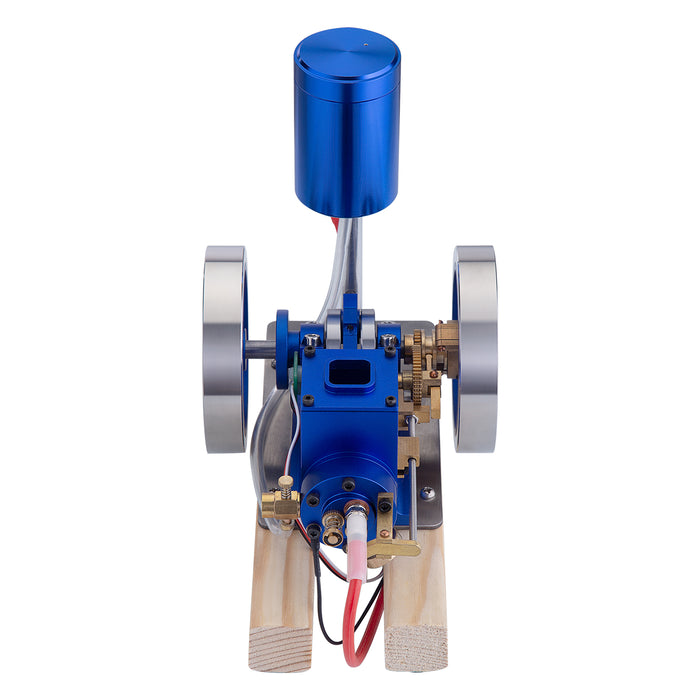

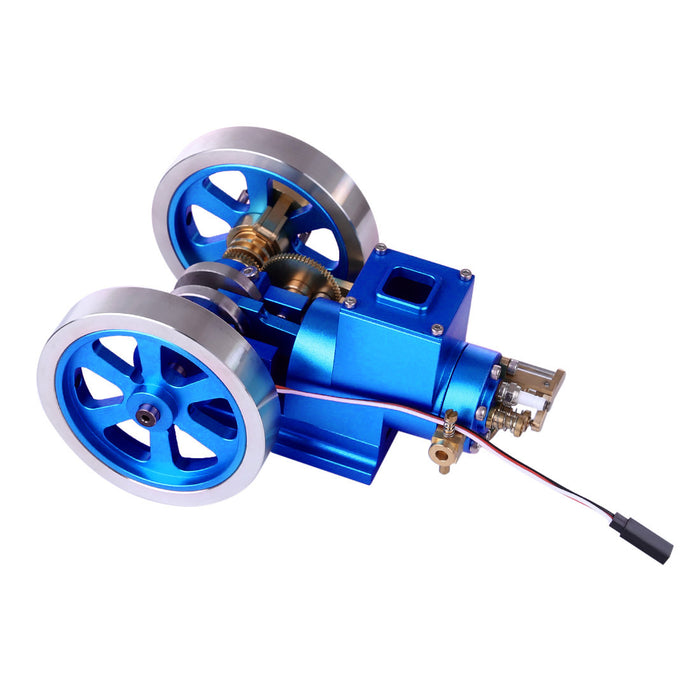

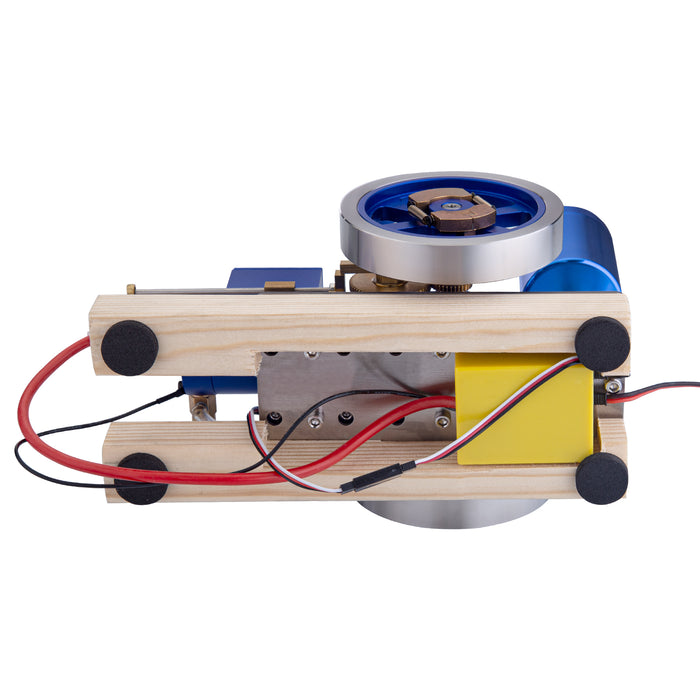

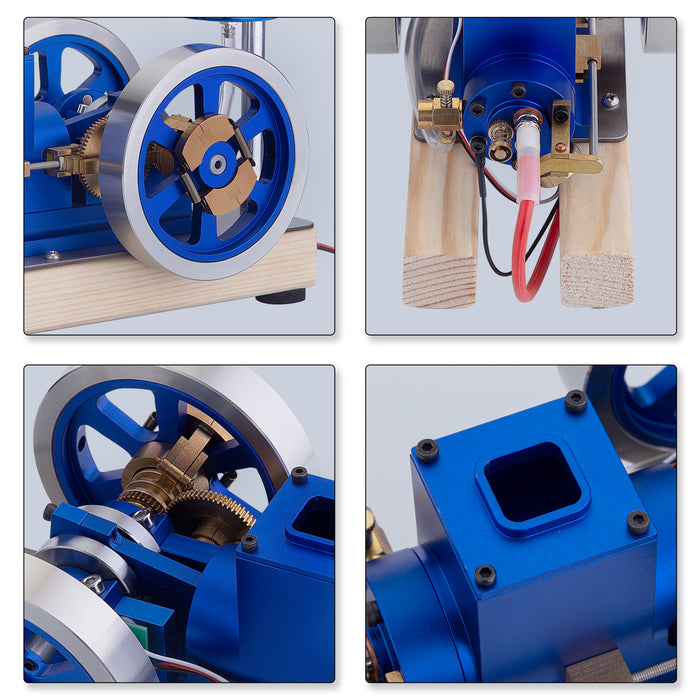

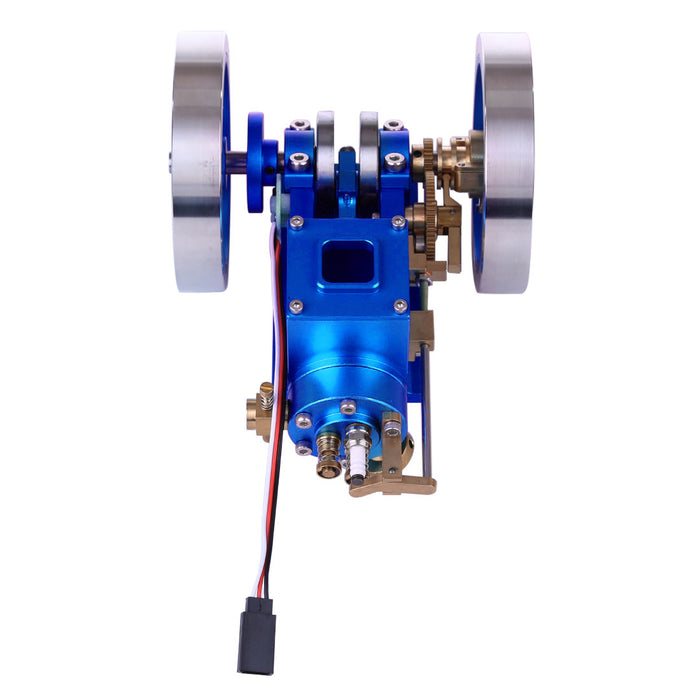

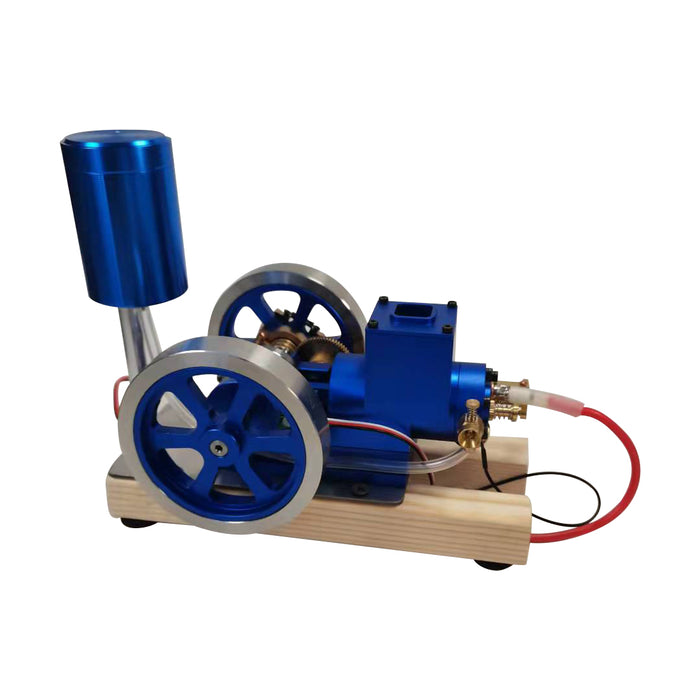

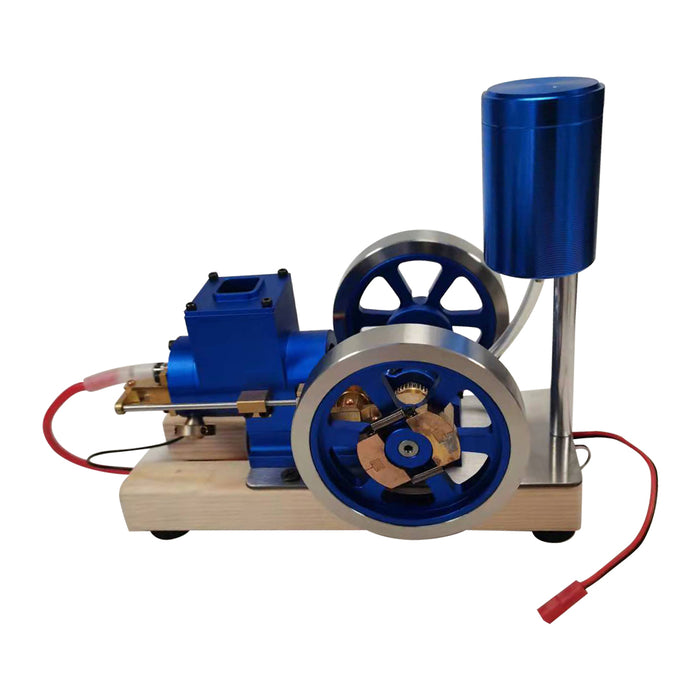

Hit and Miss Engine Full Metal IC Engine Model Water Cooled Gasoline Engine  Internal Combustion Engine with Base Gift Collection

What's Hit and Miss Engine?

A hit-and-miss engine is a type of four-stroke internal combustion engine that is controlled by a governor to operate at a set speed. It was conceived in the late 19th century and produced by various companies from the 1890s through approximately the 1940s. The name comes from the speed control on these engines: they fire ("hit") only when operating at or below a set speed, and cycle without firing ("miss") when they exceed their set speed. This is as compared to the "throttle governed" method of speed control. The sound made when the engine is running without a load is a distinctive "POP whoosh whoosh whoosh whoosh POP" as the engine fires and then coasts until the speed decreases and it fires again to maintain its average speed.

Features:
1. STABLE STRUCTURE: The engine can be disassembled and can be used for DIY , the structure design is stable, and the surface has anti-rust treatment.
2. SIMPLE OPERATION: Place the engine on a lug boss, leave the wheel in a suspended state, inject gasoline or diesel or kerosene into the single cylinder, and then manually rotate the wheel (may take two or three attempts) and the engine will start. It is very convenient to observe the principle of the engine.
3. PRIORITY GIFT OPTION FOR MANY APPLICATIONS: The engine has a wide range of application as, great gift for teacher’s Demo props on the class, birthday gift for friends, families, parents, etc. or can be used as home or office ornaments.

Starting Steps:
1. Check the engine wiring, connect the oil tank and pipeline when install the battery (ignition voltage: 6-7.4V).
2. Fill the tank with 95# gasoline. Make sure the minimum oil level of the fuel pipe is not lower then that of the carburetor when fixing the fuel tank.
3. Check whether the screws on the model are loose and whether the throttle is closed. Add about 3/4 cold water to the tank after inspection.
4. Turn on the power switch and turn the flywheel. Start the engine counterclockwise on the right side of the engine.

Warm Tips:
1. Squeeze the air to fill the pipeline with fuel if there is air in the pipeline.
2. Please be careful not to press the accelerator too high before starting. Adjust the accelerator properly to make the model run smoothly after starting.
3. Add 2-3 drops of oil at the carburetor and adjust the accelerator properly if the start is not smooth.

Applicable:
This is a elaborated internal combustion engine model which is convenient to operate and evokes immersive fun. Its vintage outlook is suitable for model fans to collect and makes ideal gift for holidays.

Description:
Item Name: Full Metal Combustion Engines
Weight: About 2kg
Material: Aluminium Alloy
Voltage: 6~7.4V
Fuel: Kerosene or Gasoline
The best tappet clearance: 0.5mm
Age: Kids over 10 years old

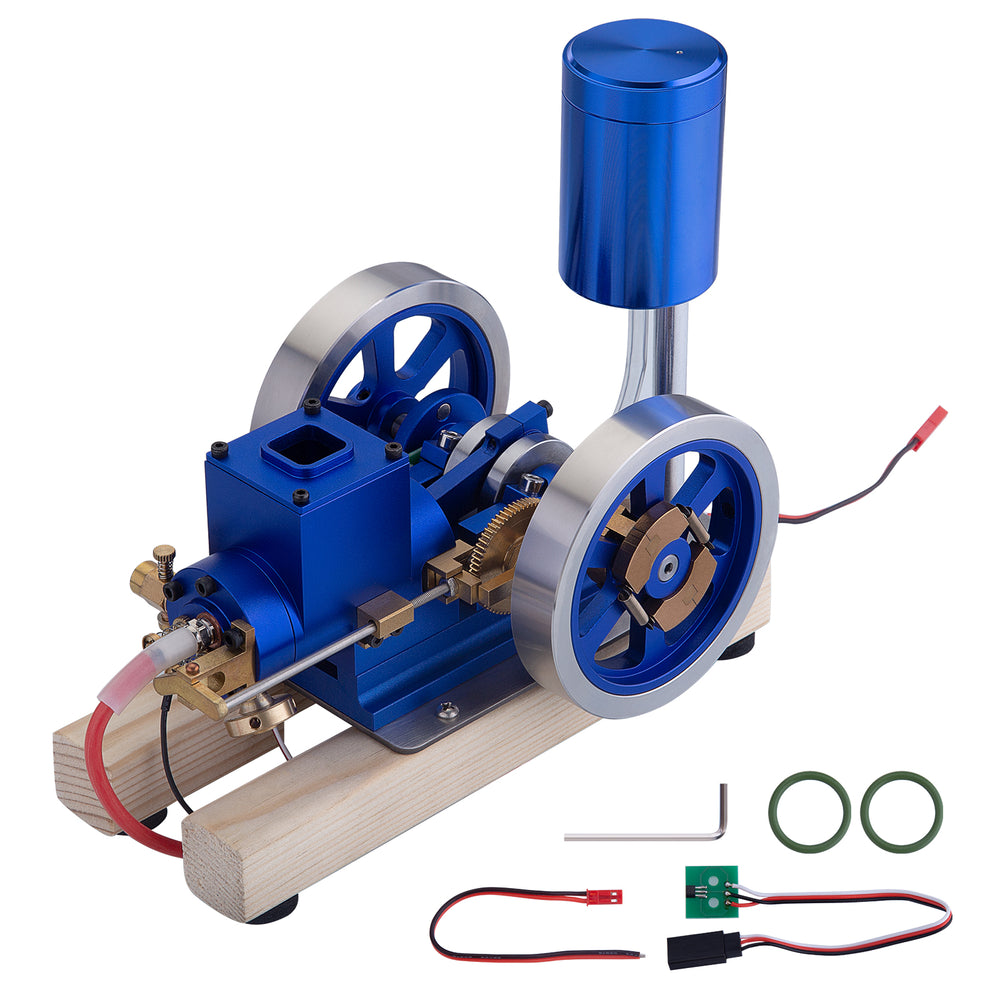

Packaga Included:
1 × Full Metal Hit and Miss Engine
