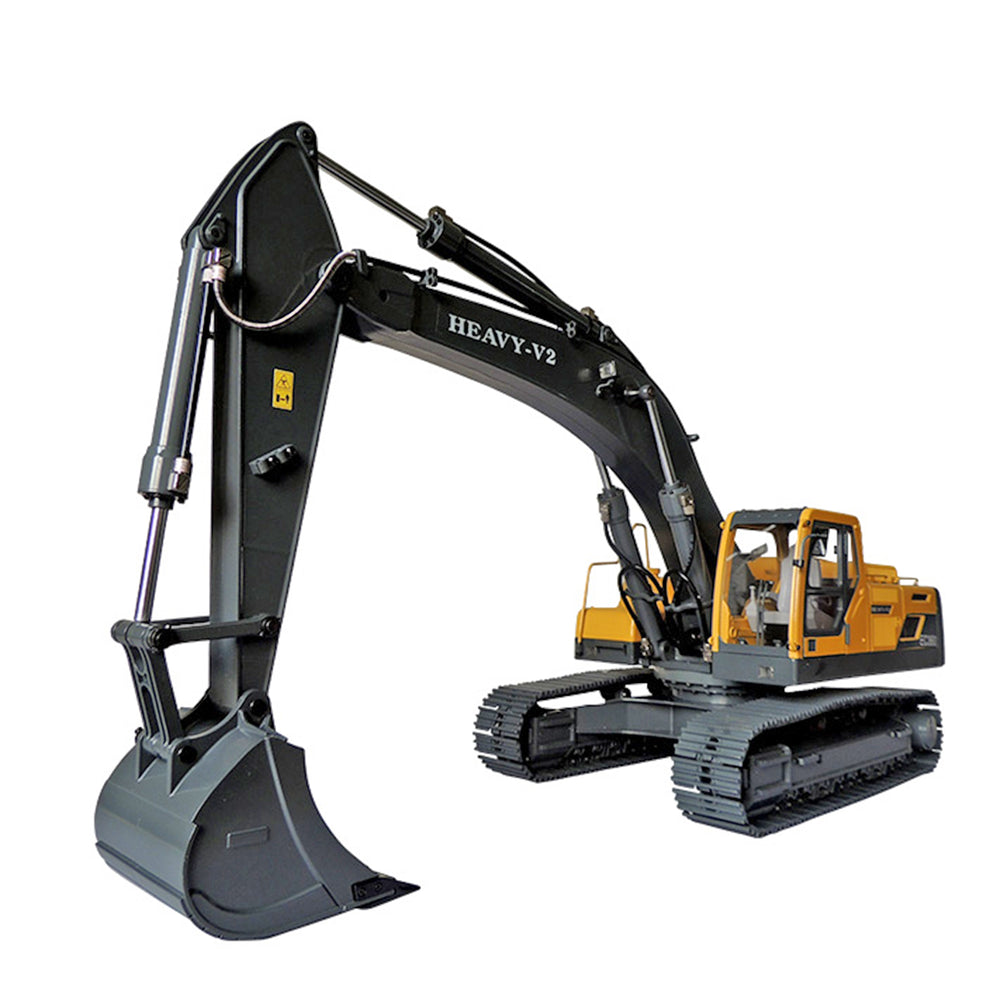

JDMODEL JDM-106 1/14 V2 Electric RC Hydraulic Heavy Excavator Navvy Radio Control Engineering Construction Vehicle Model

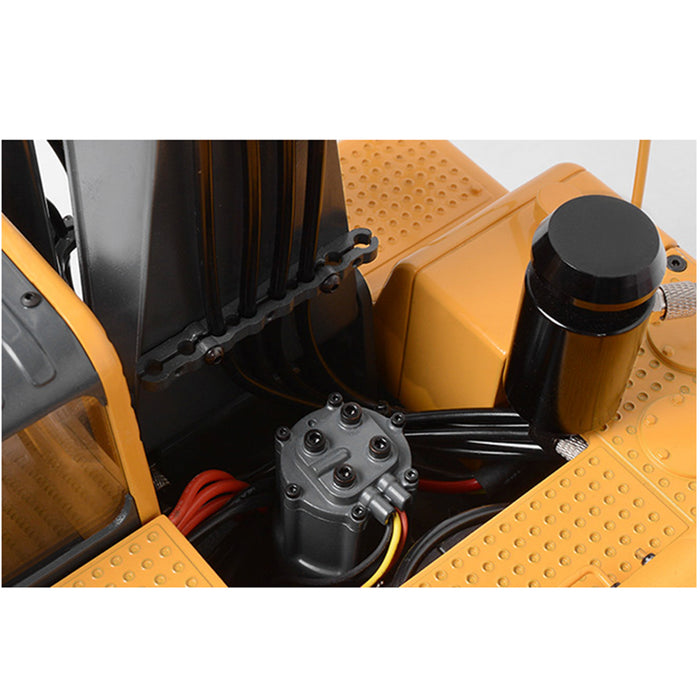

.The body of the whole vehicle utilizes zinc alloy die-casting (non-3D printed). The walking parts are made of 45 steel, the hydraulic valve of hydraulic pump is made of chromium steel, and the hydraulic cylinder is made of stainless steel and brass .The hydraulic system with the priority function of the big arm ensures the smooth operation of the three-axis linkage .Special structure of the valve to make its sensitivity high .Brushless motor drive to provide strong torque .Note: The whole vehicle version with electronic equipment hydraulic system remote controller, without battery and sound group .4 AA batteries shall be used for the remote control (please pay attention to the connection method of positive and negative electrodes). The main vehicle battery shall use 12V or 3S lithium battery 5200MHA above (battery size within 160 x 51 x 73mm). Do not modify the remote control without permission. If the lithium-ion battery is connected to the opposite position, it will cause burning and so on. .Suitable for high-end professional RC model enthusiastis or construction machinery model enthusiasts. Experience the powerful charm of RC construction machinery model .If you have any questions, please consult customer service. .Suitable for over 14-year-old.
.Color: As Shown .Material: Metal .Scale: 1:14 .Outer Edge width of Track: 248mm .Rising Force: 15KG .Theoretical Lifting Force: 60KG .Excavation Radius: 820mm .Depth of Excavation: 516mm .Excavation Height: 833mm .Unloading Height: 500mm .Arm Rotation Angle (left/right) : Rotate 360 Degrees in Place .Ground Clearance of Chassis: 36mm .Remote Control: FS-I6s (2.4g / 6 Channels) .Remote Control Battery: 4 x AA (Not Included) .Vehicle Battery: 11.1V 3S Lithium Battery or 12v Battery (within 160 x 51 x 73mm. Two can be put in parallel to extend the working time. The battery needs to be purchased separately) .Hydraulic Pump: Flow Rate: 1.2L/MIN. Rated Pressure: 2.5MPA (Hydraulic oil 32# is used by default in hydraulic system) .Directional Valve: 3-way mid-return oil high-power directional valve .Sound Group System: Additional purchase is required (Not Included) .Product Size: 82.7 x 24.6 x 26cm .Product Weight: 25000g .Package Dimensions: 95 x 42 x 35cm .Package Weight: 33500g .Packing: Carton Box
.1 x Excavator .1 x Remote Control
