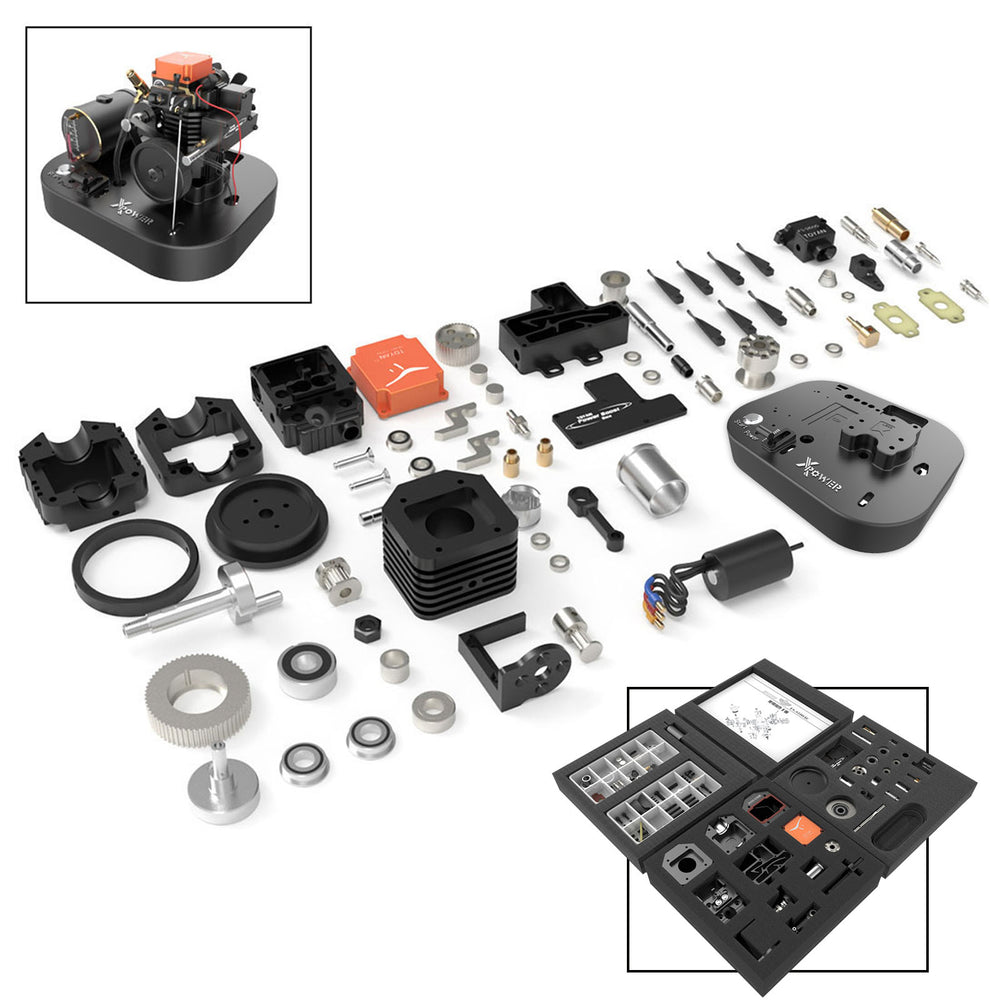

Toyan Engine Kit FS-S100AC Set Including: Toyan Engine Kit FS-S100AC, Toyan Base ( with throttle push rod, throttle lever, one-button start button, metal tank, battery box ) , 3-in-1 ESC Module, Spark Plug.
Features: 1, Real RC Engine Building Kit : Toyan FS-S100AC is consisting of 130 pcs, the whole assembly process take around 3.5 hours. While assembly, you will understand the RC Engine working structure. Challenge yourself and prove yourself, build confident in between.
2, Powerful Performance: After assembly, it can work with strong power. While it starts, the rotate speed can up to 13500 RPM / Mins.
3, Fuel: the fuel is consisting of : 20% castor oil, nitro-methane 5-30%, and the rest is methanol. 20-25% methanol content can be used as fuel. No need 100% pure methanol. Or you can buy the Methanol RC model directly from your local store.
4, Priority Gift Option for Many Applications: The four-stroke engine can used on 1:10, 1:12, 1:14 scale car model or ship model and other equipment. Also, it can be used for classroom display as teaching Aids. Besides, it is ideal Gift for engine lovers.
For battery, please use 18650 battery. Thanks! Any questions, feel free to contact with us: service@enginediy.com
Specifications: Material: Aluminium Alloy + Alloy Steel + Plastic Engine length x width x height: 100.5x85.4x86.5mm Cylinder Diameter: 17.0mm Piston Diameter: 16.6mm Displacement: 3.5cc Output Power: 0.5ps horsepower Speed: 2500-13500rpm Engine Weight: about 0.8kg Fuel Tank Capacity: 90mL Product Weight: 1710g Package Dimensions: 26 x 16 x 20cm Package Weight: 2000g Packing: Box
Package Including: 1Set x Toyan FS-S100 Engine Kit
Liquid error (snippets/product line 919): Could not find asset snippets/mett-Promotion.liquid
Questions about Shipment
Q1 : Do you ship worldwide? A1 : Yes, we can ship worldwide. Q2 : Where you ship goods from? A2 : Our warehouse is located in China, the goods will be shipped from China mainland.
Q3 : What is the shipping cost? A3 : For giving customer good shopping experience, we offer free international shipment.
Q4 : What is the shipping time? A4 : For expected delivery date, please check in this page: Expected Delivery Time
Q5 : How do I track my package? A5 :You can track your order on 17track.net . Or if you need a team members help check up please contact with our service team service@enginediy.com and we will be in touch with a status update.
Questions about Payment & Order Q1 : What payment terms you can accept? A1 : For payment, we accept Paypal and Credit Card.
Q2 : My payment was declined, why? How to solve it ? A2 : If you made the purchase via Credit Card and failed, could you please contact with Stripe Support Team for solution? Or if the issue can be solved, please no worry, we accept Paypal payment as well.
Q3 : How do I cancel my order? A3 : For the order, if not shipped out yet, please contact with our Service Support Team service@enginediy.com , we will cancel your order and give you full refund.
Q4 : Is my information is securing using this site? A4 : Yes, Enginediy.com takes precautions to protect your personal information. When you submit sensitive information via the website, your information is protected both online and offline. Please don’t worry for this.
Q5 : What if my address is wrong? A5 : If the recipient's address was wrong, after the failed delivery, the parcel should be returned back to sender. After we receive the parcel, we will contact you for an updated address and arrange the new shipment.
Questions about Return & Refunds Q1 : What items are returnable? A1 : a)- We can accept returns or exchanges within the 30-day period. b)- All returned items must be in the original condition: unused, unwashed, and unworn. No exceptions. Q2 : How do I return a product? A2:Contact with Enginediy Service Team service@enginediy.com to confirm details to make sure the item is meet the return condition. After the agreement, Service Team will send the detailed return information, please offer return tracking number after return shipment. Q3 : What is you refund policy? A3 : Refunds are processed within 1-5 business days, after you received our confirmation on the cancellation.
Q4 :How will you refund me? A4 : The refund are applied to the original payment method.
came missing a fuel tank and had a problem with the carburettor, but Engine DIY helped out and sent through all the parts free of charge.
engine is amazing build quality
K
Kevin Schmidt (Roseville, US)
Really good details on the metal and the product is very good really love it
M
Mike Reinhard (Port Charlotte, US)
The Little Engine That Could
The Good:
Excellent packaging, high quality of materials, mostly detailed instructions.
The optional base a piece of art and makes the whole package.
Runs and starts well when all complete.
Needs Work:
Ring compressor #88 not usable, to much angle in a short distance.
Some tolerances tight needed emery cloth dressing.
Exhaust pipe #85 conflicts with brass nipple unless flat is in position.
Cooling fan bearings to tight for fan hub, more emery dressing.
Starter motor had reversed polarity.
Carb adjustments hard to set initially, bottom out is not easily found and a rich mixture results.
E
Erez Levy (Petaẖ Tiqwa, IL)
Exaiting product
I'm in the middle of the built. not too hard yet except the timming section.
it was very helpfull if there was a material description in the table.
Also torqe option to close the screws will be excellent.
in general, im happy and looking forward to start the engine
